Product Positioning

The valve leakage testing machine is widely used in factories, parts manufacturing, maintenance, chemical industry, laboratories, schools, quality inspection units, and various automotive parts manufacturing units for the production, development, and research of valves. It meets customer requirements for shell testing, upper seal testing, and high-pressure water seal testing of various valves. During the testing process, leaks can be visually inspected, and it is suitable for factory inspection of various valves. With a maximum test pressure of 140 MPa, it boasts advantages such as convenient operation, stable performance, reliable quality, reasonable structure, and complete functions, fully complying with the national standards "ZBJ16006-90" (Testing and Inspection of Valves) and "GB/T13927-92" (Pressure Testing of General Industrial Valves).

Features

1. Oil-free compression, ensuring the gas is not contaminated.

2. Uses independently developed software, combined with various control valves and sensors to achieve equipment control, and includes a pressure curve acquisition function.

3. Manual or computer control can be selected as needed.

4. Features power-off protection; the test automatically terminates and pressure is released after a power outage, maximizing operator safety.

5. Uses a booster pump, requiring no additional power equipment and producing no sparks, making it suitable for explosion-proof environments.

6. Safe and reliable connection, allowing for flexible disassembly.

Typical Applications

Valve seal testing, used for gate valves, ball valves, butterfly valves, welded valves, etc.

Pressure resistance testing of hydraulic valves, coal mine hydraulic valves,

Pressure resistance testing of excavator hydraulic valves.

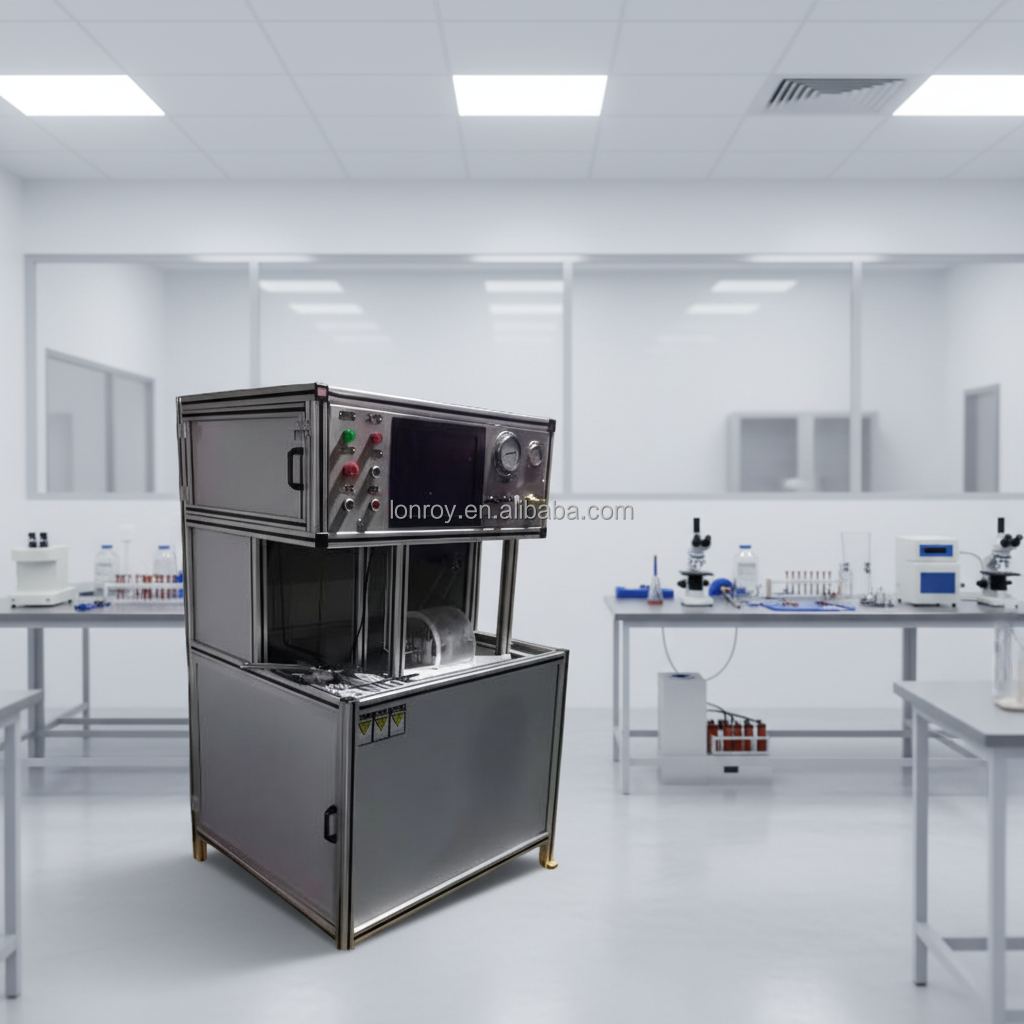

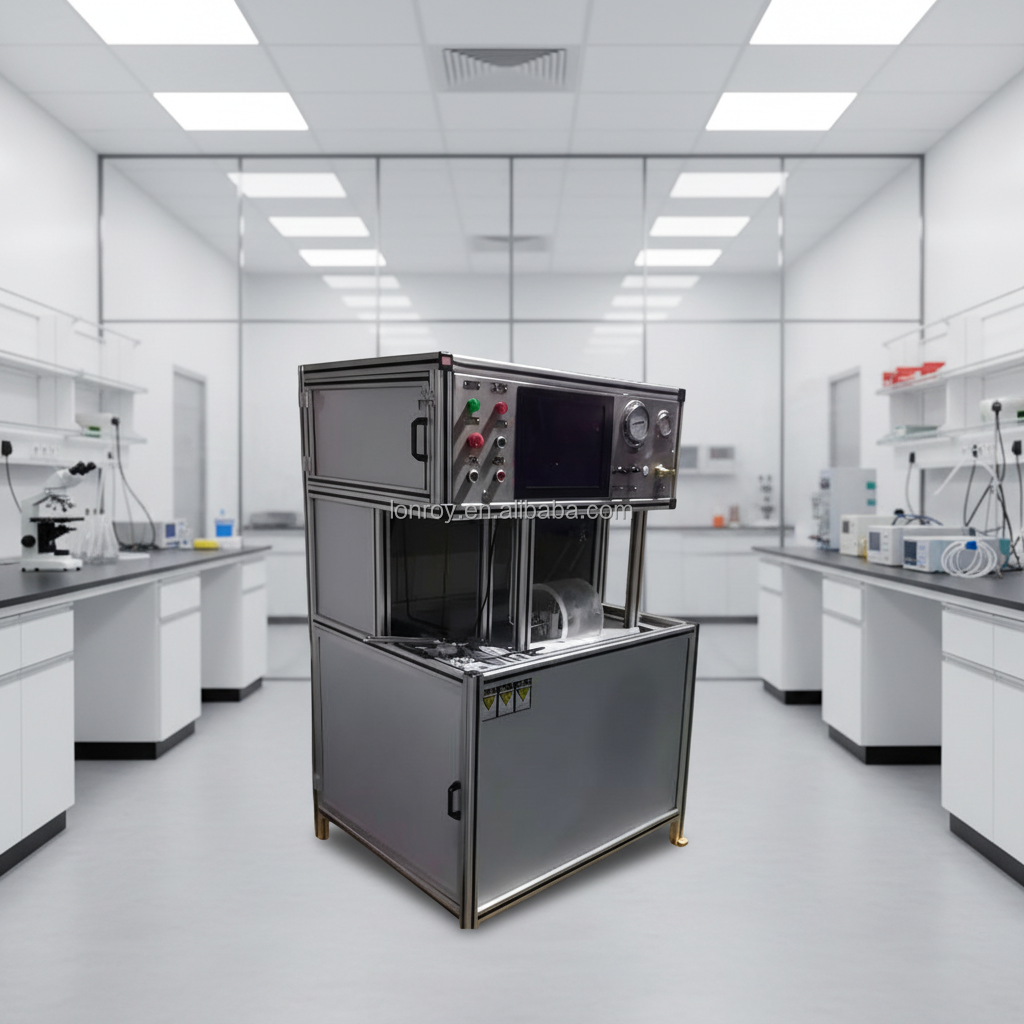

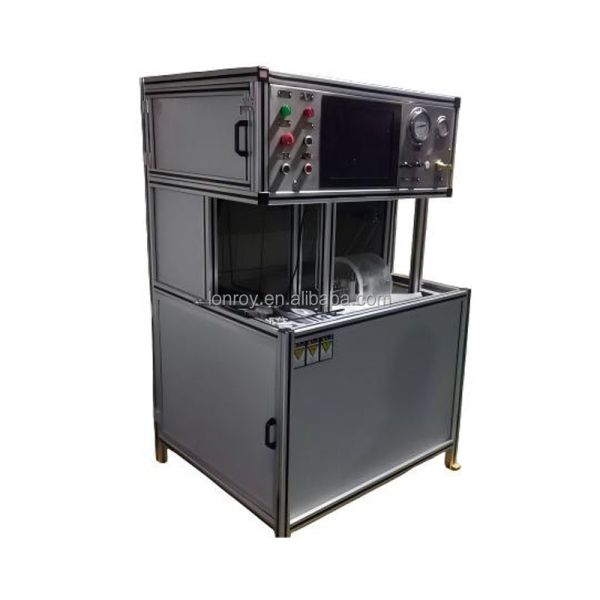

IValve Leakage Testing Machine Valves Shell Test Equipment Valves Upper Seal Testing Instrument
