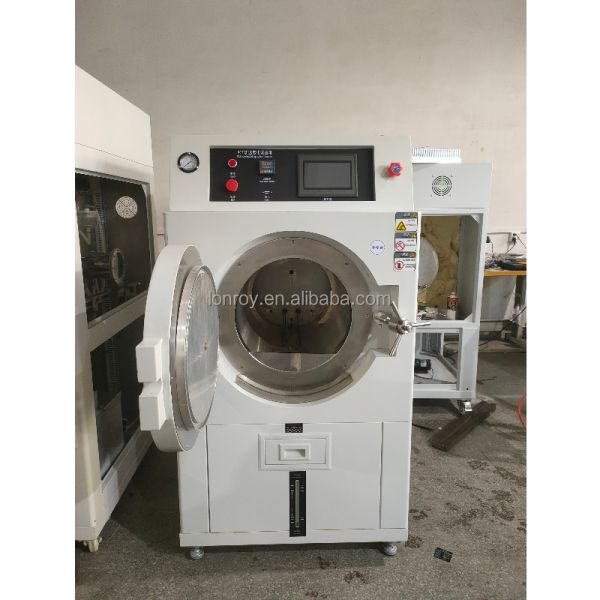

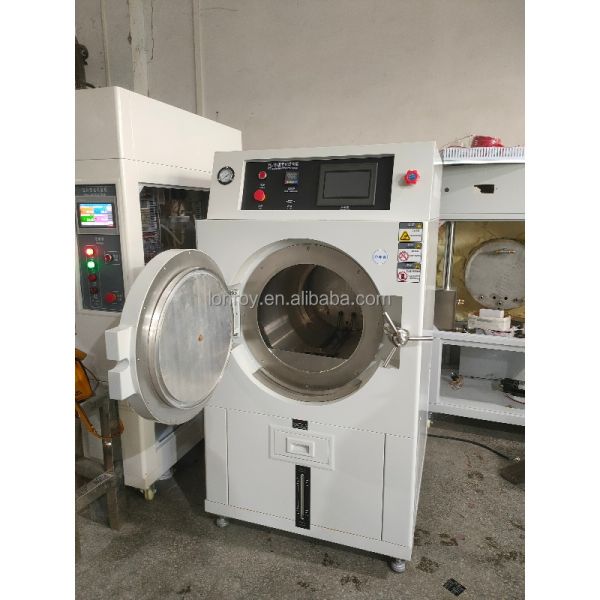

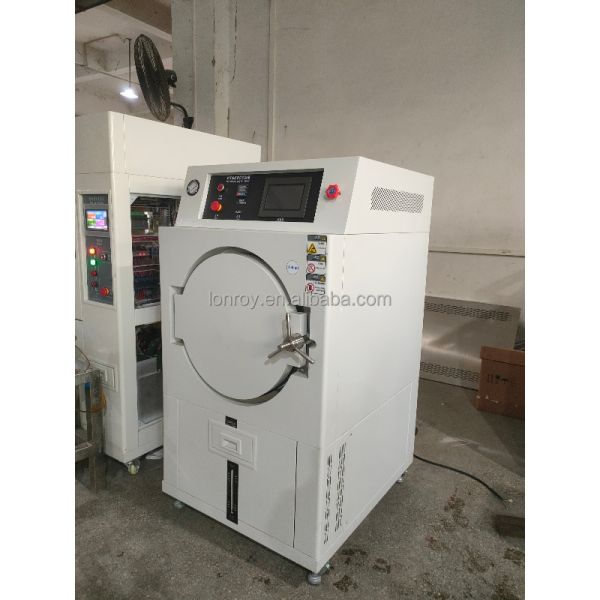

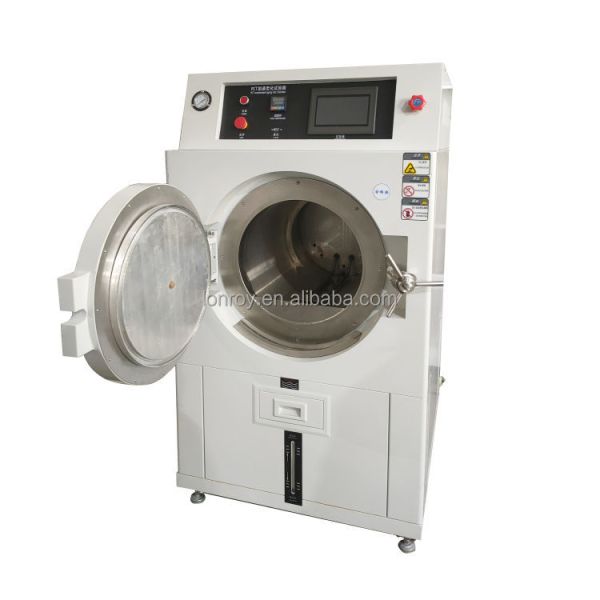

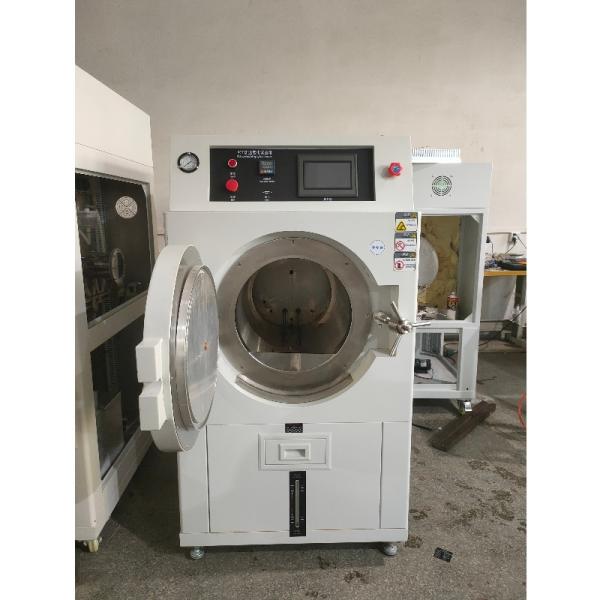

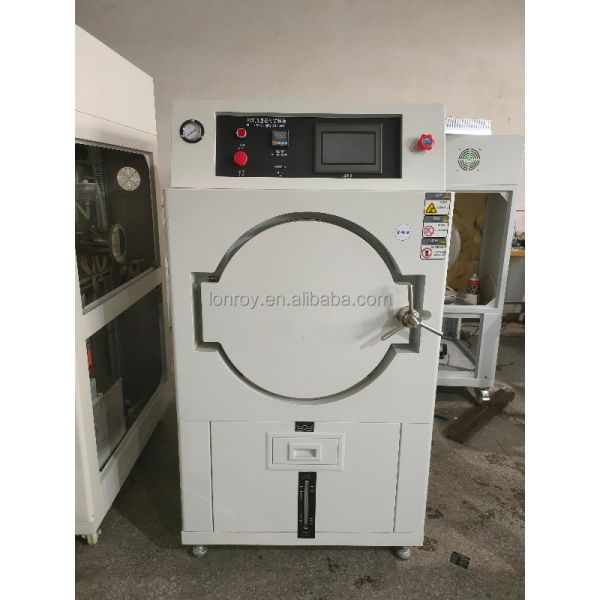

High-voltage accelerated life test equipment, also known as high-voltage accelerated aging test machine, is designed for comprehensive product testing and validation.

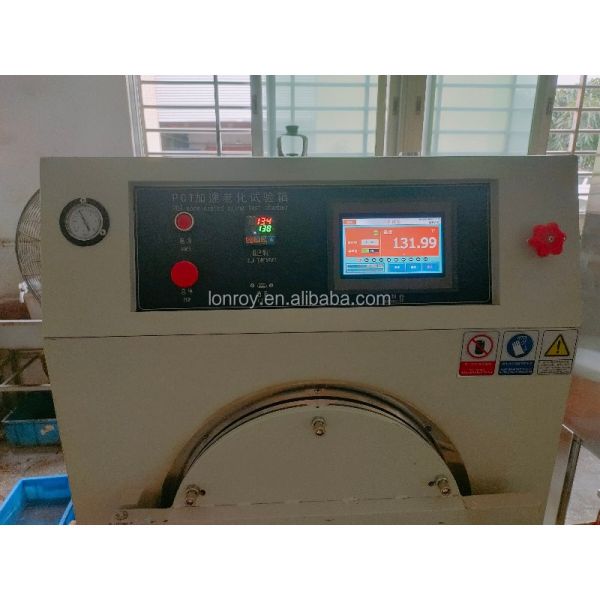

• Saturated steam temperature controlled by Japanese-made RKC microcomputer (using PT-100 platinum temperature sensor)
• Time controller displayed by light-emitting diodes
• Pressure indication via pointer pressure gauge

• Circular inner box made of stainless steel with circular structure, compliant with industrial safety container standards
• Patented packaging design for closer integration between door and box, extending packaging life
• Critical point limit mode with automatic safety protection and fault indicator light display

• Imported high-temperature resistant sealed solenoid valve with dual-loop structure to prevent pressure leakage
• Multiple safety protection devices including overpressure protection, over-temperature protection, one-button pressure relief, and manual pressure relief
• Back pressure door locking device prevents door opening when internal pressure is present

• One set of test frames
• Sample tray

• System power supply fluctuation shall not exceed ±10%
• Power Supply: Single-phase 220V 20A 50/60Hz

• Allowable operating ambient temperature: 5℃ to 30℃
• Experimental water: Pure water or distilled water

The saturated high-pressure accelerated aging tester is widely used for sealing performance testing across multiple industries:

• National defense and aerospace
• Auto parts and electronic components
• Plastics, resins, and magnet industry
• Circuit boards, multi-layer circuit boards, and integrated circuits
• Liquid crystal displays and lighting products

Used in product design phase to quickly expose defects and weaknesses, testing wear resistance and airtightness of products.

• GB/T 29309-2012
• IEC 62108
• ISO 7137
