Specifications
Brand Name :
Lonroy
Place of Origin :
China
MOQ :
1
Voltage :
220 V, 380 V
Protection Class :
Ip56
Generator capacity :
100/125 MW
Generator rated voltage :
10.5 KV
Secondary side resistance :
0.5, 0.8, 1 Ω
Maximum grounding current :
4, 5, 6 A
Primary side voltage :
10.5/√3, 13.8/√3, 15.75/√3, 18/√3, 20/√3 KV
Secondary side voltage :
0.22 KV
Transformer rated capacity :
30, 50 KVA
Grounding protection voltage :
0.1 KV
Resistance temperature coefficient :
Small
High temperature resistance :
Yes
Applicable voltage range :
35KV and below
Resistor type :
High-voltage large-power
Functional structure :
Designed for environment
Certification :
ISO ASTM CE
Price :
Negotaible
Packaging Details :
Wooden package
Delivery Time :
5-8 work days
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Description

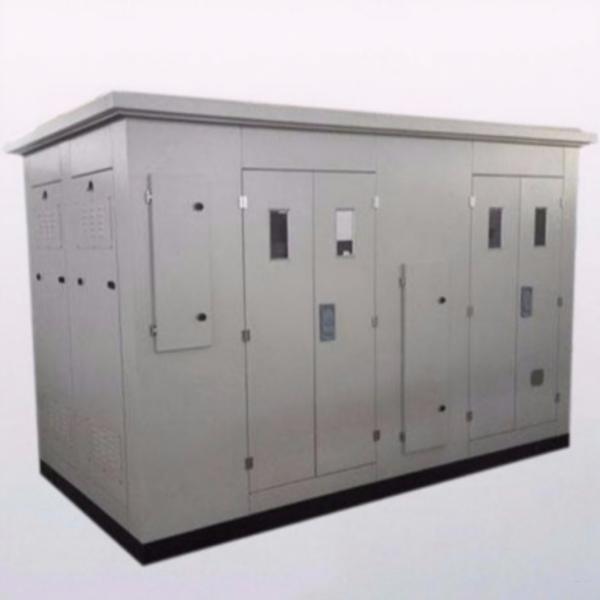

Generator Resistance Cabinet High Voltage Generator Neutral Point Grounding Resistance Box

Product Description

Introduction

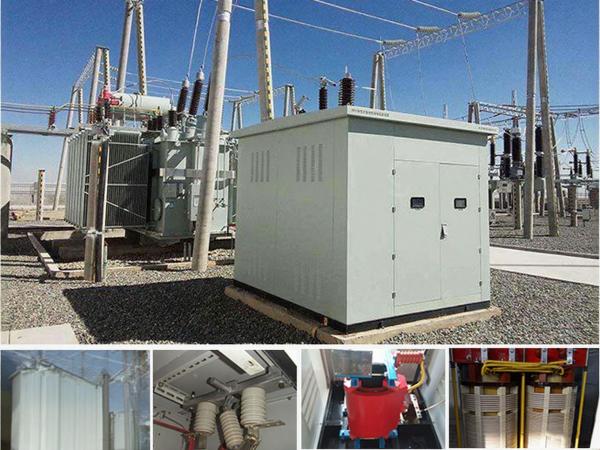

The generator resistance cabinet, also known as the generator neutral point grounding resistance cabinet, is used for diesel generators or wind turbines when they are operating in grid connection mode. In the event of a single-phase grounding fault, it can promptly detect and quickly switch the circuit, limiting the grounding current, preventing overvoltage hazards, and thereby avoiding damage to the winding insulation and subsequently developing into inter-phase or inter-turn short circuits. This product is widely used in urban power supply systems, power plants, subways, ships, metallurgy, wind farms, photovoltaic power stations, and ports, among other fields.

Advantage

It is manufactured by using high-quality high-voltage large-power resistors independently developed by Lonroy, as well as various new alloy resistors. According to the different working environment characteristics of various generators or photovoltaic power generation systems, a functional structure and protection level cabinet that is suitable for product use has been designed. It has the advantages of safe operation, high temperature resistance, and small resistance temperature coefficient. It is a dedicated complete set device for high-resistance grounding of 35KV and below generator sets.

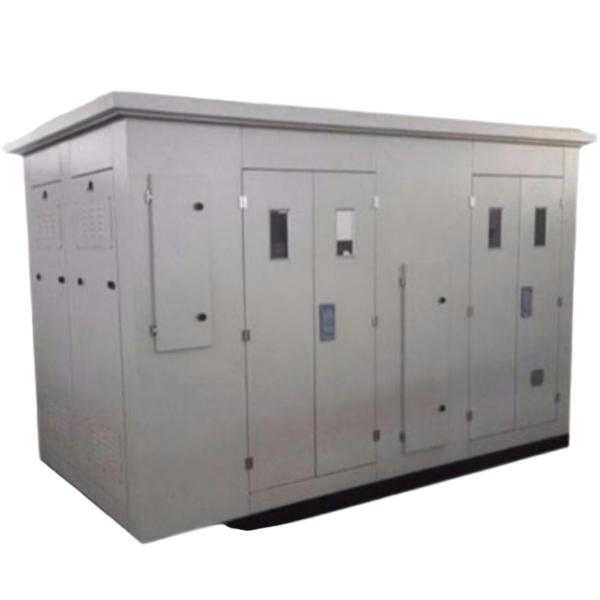

Generator Resistance Cabinet High Voltage Generator Neutral Point Grounding Resistance Box

Technical Specification

Generator capacity (MW)

100/125 MW

200 MW

300 MW

Generator rated voltage (KV)

10.5

13.8

15.75

18

20

Maximum single-phase grounding current in the expected circuit (A)

4

5

6

Primary side voltage of the grounding transformer (KV)

10.5/√3

13.8/√3

15.75/√3

18/√3

20/√3

Secondary side voltage of the grounding transformer

0.22

0.22

0.22

Rated capacity of the grounding transformer (KVA)

30

30

50

Secondary side resistance value (Ω)

1

0.8

0.5

Grounding protection extraction voltage (KV)

0.1

0.1

0.1
