18V300AC3000AC Battery Cycle Life Tester P56 Protection 20V/380V Voltage for Module Batteries Testing Lab Tes
18V300AC3000AC Battery Cycle Life Tester P56 Protection 20V/380V Voltage for Module Batteries Testing Lab Tes
18V300AC3000AC Battery Cycle Life Tester P56 Protection 20V/380V Voltage for Module Batteries Testing Lab Tes
18V300AC3000AC Battery Cycle Life Tester P56 Protection 20V/380V Voltage for Module Batteries Testing Lab Tes
18V300AC3000AC Battery Cycle Life Tester P56 Protection 20V/380V Voltage for Module Batteries Testing Lab Tes
18V300AC3000AC Battery Cycle Life Tester P56 Protection 20V/380V Voltage for Module Batteries Testing Lab Tes
18V300AC3000AC Battery Cycle Life Tester P56 Protection 20V/380V Voltage for Module Batteries Testing Lab Tes
18V300AC3000AC Battery Cycle Life Tester P56 Protection 20V/380V Voltage for Module Batteries Testing Lab Tes
18V300AC3000AC Battery Cycle Life Tester P56 Protection 20V/380V Voltage for Module Batteries Testing Lab Tes
18V300AC3000AC Battery Cycle Life Tester P56 Protection 20V/380V Voltage for Module Batteries Testing Lab Tes
18V300AC3000AC Battery Cycle Life Tester P56 Protection 20V/380V Voltage for Module Batteries Testing Lab Tes
18V300AC3000AC Battery Cycle Life Tester P56 Protection 20V/380V Voltage for Module Batteries Testing Lab Tes
Specifications
Brand Name :
Lonroy
Place of Origin :
China
MOQ :
1
Voltage :
220 V, 380 V
Protection Class :
IP56
Storage temperature :
-20℃ to +70℃
Work temperature :
0℃ to 40℃
Environmental humidity :
≤85%
Stability :
±0.2%FS
Voltage precision :
± 0.1%FS or ±0.5%
Current precision :
± 0.1%FS or ±0.5%
Resolution :
16-bit AD
Time resolution :
0.1 second
Timing accuracy :
±10 seconds/24 hours
Stage time range :
0.1 second - 1000 hours
Stage setting range :
1 - 200 stages
Data recording interval :
≥100ms
Cooling method :
Air-cooled
Certification :
ISO ASTM CE
Price :
Negotaible
Packaging Details :
Wooden package
Delivery Time :
5-8 work days
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Description

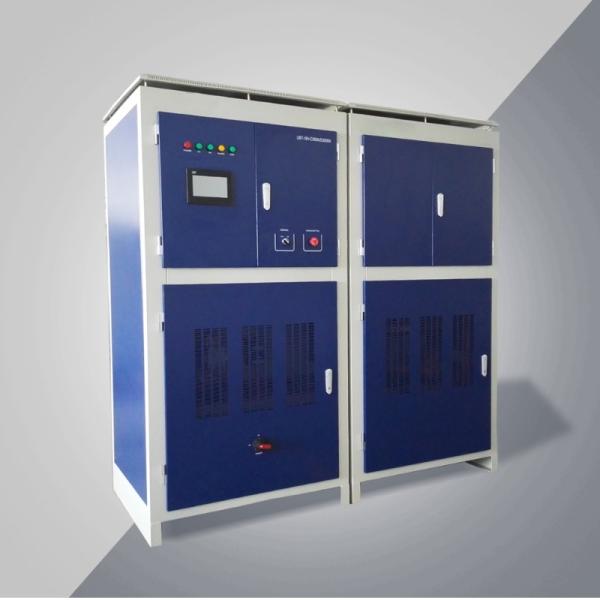

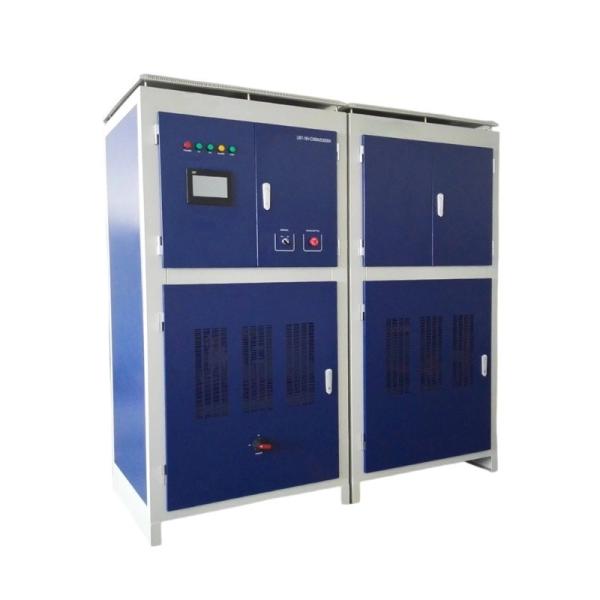

Module Batteries Rate Charging and Discharging Testing Machine 18V300AC3000AC Battery Cycle Life Tester
Product Overview

This advanced battery testing equipment is designed for comprehensive evaluation of single and module batteries used in electric vehicles, electric bicycles, and energy storage systems. It performs charging/discharging tests, pulse tests, DCIR measurements, cycle life assessments, and rate capability evaluations.

Key Features
  • Multiple working modes: Constant voltage/current/power charging, constant current/power/resistance discharging, resting, and cyclic operation
  • Customizable working modes available upon request
  • Advanced safety protections: Reverse connection alarm, overcurrent shutdown, and pause function
  • Automatic test termination upon detecting battery or equipment abnormalities
  • Power failure recovery function maintains test continuity
  • Professional software with Excel export capability for easy data analysis
  • Built-in calibration function ensures measurement accuracy
Software Interface
Technical Specifications
Parameter Specification
Output Channels Customizable quantity
Charging Method Automatic
Display Mode Touch screen or computer display
Voltage Range: Customizable charging/discharging ranges
Precision: ±0.1%FS or ±0.5%
Resolution: 16-bit AD
Current Range: 0-*A (customizable separate ranges for charging/discharging)
Precision: ±0.1%FS or ±0.5%
Resolution: 16-bit AD
Power Total Output: Equipment-specific
Single Channel: Equipment-specific
Stability: ±0.2%FS
Time Resolution: 0.1 second
Accuracy: ±10 seconds/24 hours
Stage Setting: 0.1s-1000 hours range
Stage Count: 1-200 stages
Data Recording Time Interval: ≥100ms
Voltage Variation: ≥0.1%FS
Current Variation: ≥0.1%FS
Work Modes Constant current/voltage/power charging with multiple cutoff options
Constant current/voltage/power/resistance discharging with multiple cutoff options
Standby mode with time/voltage cutoff
Power Supply AC380V (-5% to +10%) or AC220V (-5% to +10%), 50Hz ±1Hz
Operating Conditions Temperature: 0℃ to 40℃
Storage Temp: -20℃ to +70℃
Ventilation: Well-ventilated, non-corrosive environment
Cooling: Air-cooled
Humidity: ≤85%
PC Requirements Windows 7, Windows 10 or newer
