Specifications
Brand Name :
Lonroy
Place of Origin :
China
MOQ :
1
Voltage :
220 V, 380 V
Protection Class :
IP56
Precision :
± 0.1%FS or ±0.5%
Stability :
±0.2%FS
Stage time range :
0.1 second - 1000 hours
Work temperature :
0℃ to 40℃
Charging method :
Automatically
Display mode :
Touch screen display or upper computer display
Resolution :
16-bit AD
Timing accuracy :
±10 seconds/24 hours
Stage setting range :
1 - 200 stages
Data recording interval :
≥100ms
Storage temperature :
-20℃ to +70℃
Cooling method :
Air-cooled
Environmental humidity :
≤85%
Certification :
ISO ASTM CE
Price :
Negotaible
Packaging Details :
Wooden package
Delivery Time :
5-8 work days
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Description
Lithium Battery Integrated Parameter AutoTesting Equipment 300A5V 8L Direct Current Internal Resistance Test Machine
Advanced Battery Testing Solution
This professional battery testing equipment performs comprehensive charging/discharging tests, pulse tests, DCIR (direct current internal resistance) tests, cycle life tests, and rate charging/discharging tests for single batteries and modules. Ideal for electric vehicles, electric bicycles, energy storage batteries, and more.
Key Applications
Designed for research institutions, universities, power battery manufacturers, and new energy vehicle manufacturers.
Key Features
  • Multiple working modes: Constant voltage/current/power charging, constant current/power/resistance discharging, resting, and cyclic operation (custom modes available)
  • Advanced safety protections: Battery reverse connection alarm, overcurrent shutdown, pause function, and automatic test termination for abnormal conditions
  • Professional software: Export test data to Excel with customizable columns, maintaining original record formats
  • Built-in calibration: Voltage and current calibration correction function ensures measurement accuracy
  • Power failure recovery: Records operating status during power outages and automatically resumes operation

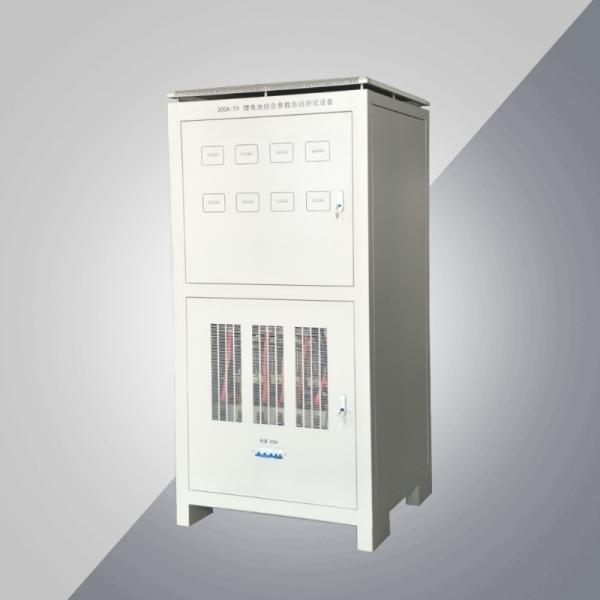

Main unit of the testing equipment
Professional software interface
Technical Specifications
Parameter Specification
Output Channels Customizable number of channels
Charging Method Automatic
Display Mode Touch screen or computer display
Voltage
Scope: Customizable charging/discharging ranges
Precision: ±0.1%FS or ±0.5%
Resolution: 16-bit AD
Current
Range: 0-*A (customizable charging/discharging ranges)
Precision: ±0.1%FS or ±0.5%
Resolution: 16-bit AD
Power
Total output: Determined by equipment specifications
Single channel: Determined by equipment specifications
Stability: ±0.2%FS
Time
Resolution: 0.1 second
Accuracy: ±10 seconds/24 hours
Stage time setting: 0.1s - 1000 hours
Stage setting: 1-200 stages
Data Recording
Time interval: ≥100ms
Voltage variation: ≥0.1%FS
Current variation: ≥0.1%FS
Work Environment
Power supply: AC380V (-5% to +10%) or AC220V (-5% to +10%)
Temperature: 0℃ to 40℃ (storage -20℃ to +70℃)
Humidity: ≤85%
Ventilation: Good ventilation required
Cooling: Air-cooled
PC Requirements Windows 7, Windows 10 or above
