Specifications
Brand Name :
LONROY
Place of Origin :
Guangdong, China
MOQ :
1
Voltage :
380 V
Power Supply :
7.5KW/380V
Feed Size :
≤20 mm
Output Granularity :
≤1μm
Protection Class :
Ip56
Rotate Speed :
60-140 rpm
Volume :
100 L
Load Capacity :
35 L
Model NO. :
LR-A368-100L
Grinding Media :
Stainless steel, corundum ceramic, polyurethane, zirconia
Grinding Temperature :
Controllable
Noise Level :
Low
Vibration Level :
Less
Energy Utilization :
High
Granularity Adjustability :
Adjustable by grinding time
Description
Oil Paint Grinding Stirring Ball Mill Machine
High Efficiency Gouache Stirring Laboratory Ball Mill
This stirred ball mill is an ideal equipment for crushing new materials and research painting applications in universities, research centers, and enterprises. It features small batch processing, low power consumption, and affordable pricing.
Product Overview

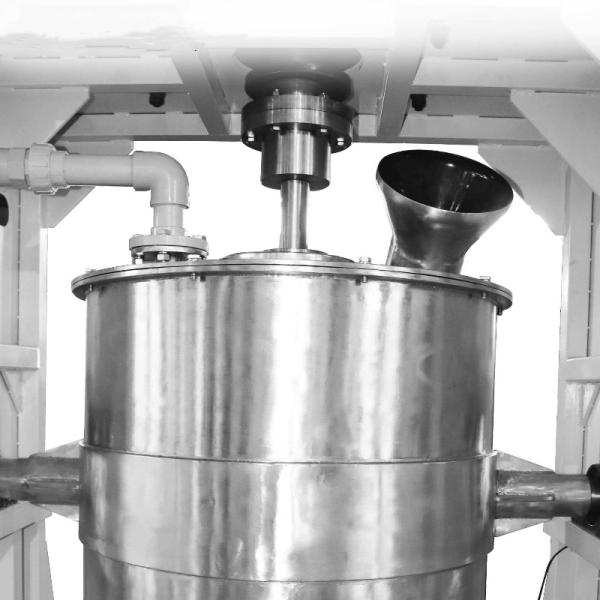

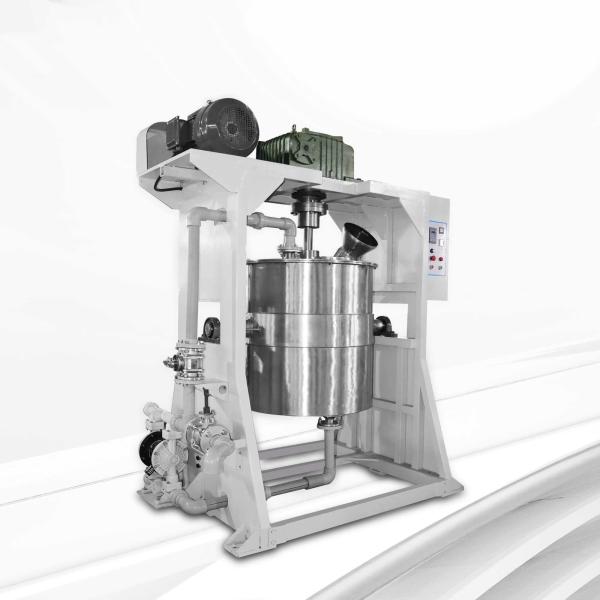

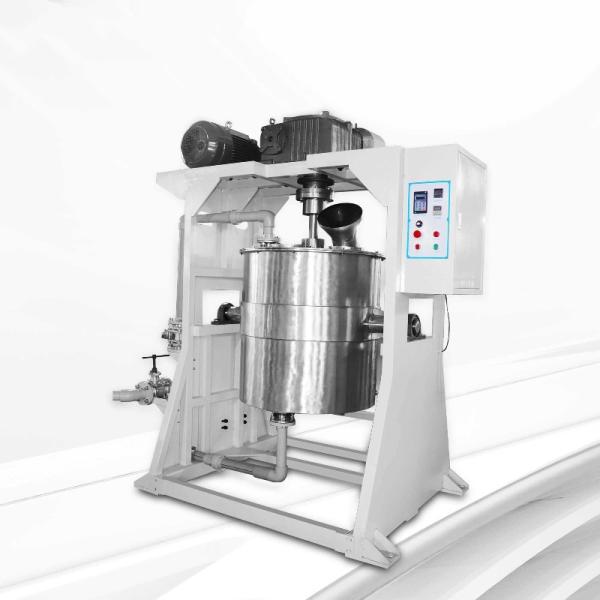

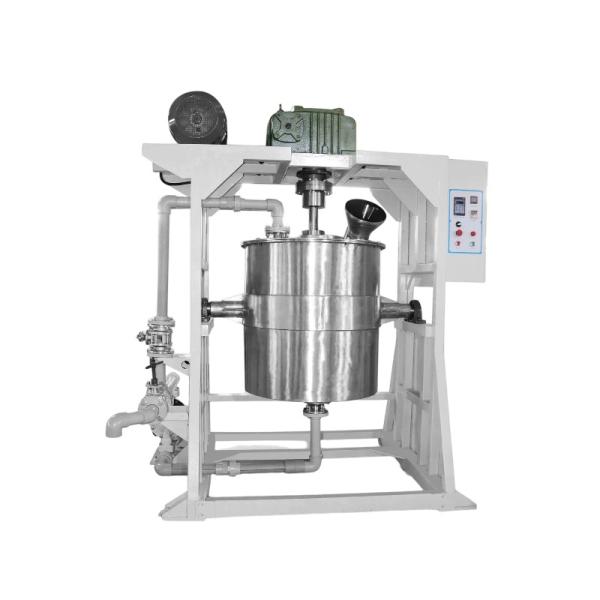

The stirred ball mill consists of a jar with inner grinding media, stirring device, and auxiliary components including recycling device, cooling system, timer, and speed controller. It delivers high efficiency and fine granularity to meet various process requirements.
Working Principle
When operating at high speed, the main axis drives the grinding media to move irregularly, crushing, grinding, and shearing materials into fine powder. Grinding results are affected by media size, shape, and ratio - larger media typically produces finer powder. Optimal performance is achieved through proper media matching and speed adjustment.
Key Features
  • High energy utilization rate with energy-saving operation
  • Adjustable granularity through grinding time control
  • Low vibration and noise levels during operation
  • Simple structure with easy operation
  • Supports both continuous and intermittent production
  • Jacketed jar for precise temperature control
  • Customizable options including timing, speed adjustment, recycling, and temperature control
  • Multiple jar material options: stainless steel, corundum ceramic, polyurethane, zirconia
Applications
This light-type stirred ball mill is widely used in various industries including zirconia silicate, zirconia, alumina oxide, ceramics, chemicals, electronic materials, magnetic materials, paper-making, painting, non-metal minerals, new materials, coatings, graphite, and calcium carbonate processing.
Technical Specifications
Model NO. Rotate Speed (rpm) Volume (L) Load Capacity (L) Power Supply (KW/V) Feed Size (mm) Output Granularity (μm)
LR-A368-100L 60-140 100 35 7.5KW/380V ≤20 ≤1μm
LR-A368-200L 60-140 200 70 11KW/380V ≤20 ≤1μm
LR-A368-300L 60-110 300 100 15KW/380V ≤20 ≤1μm
LR-A368-500L 60-90 500 170 18.5KW/380V ≤20 ≤1μm
LR-A368-600L 60-90 600 210 22KW/380V ≤20 ≤1μm
Product Images
