Specifications
Model Number :
NDJ - T
Brand Name :
LONROY
Place of Origin :
Guangdong, China
MOQ :
1
Display type :
5 inches color touch screen
Speed range :
3/6/12/30/60 r/min (NDJ-5T), 0.3/0.6/1.5/3/6/12/30/60 r/min (NDJ-9T)
Viscosity range :
1~100,000 mPa.s (NDJ-5T), 1~2,000,000 mPa.s (NDJ-9T)
Rotor types :
1, 2, 3, 4# (standard), 0# (standard for low viscosity)
Measurement error :
±1% (NDJ-5T, NDJ-8T), ±0.5% (NDJ-9T)
Repetitive error :
±0.5% (NDJ-5T, NDJ-8T), ±0.25% (NDJ-9T)
Timing function :
Standard
Temperature measurement :
Standard temperature sensor interface (optional sensor)
Automatic scanning :
Yes
Shear rate display :
Standard
Kinematic viscosity :
Automatic display (requires sample density input)
Data storage :
30 groups of test programs, 30 sets of measurement results
Viscosity curve :
Real-time display
Working voltage :
110V/60Hz or 220V/50Hz
Dimensions :
300 × 300 × 450 mm
Description

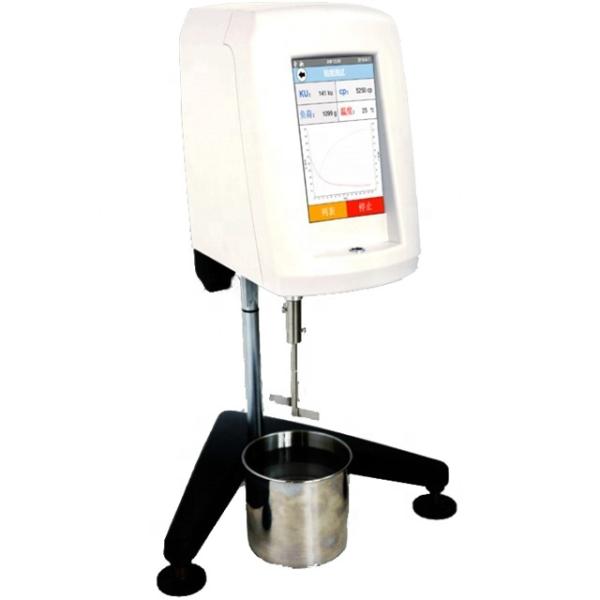

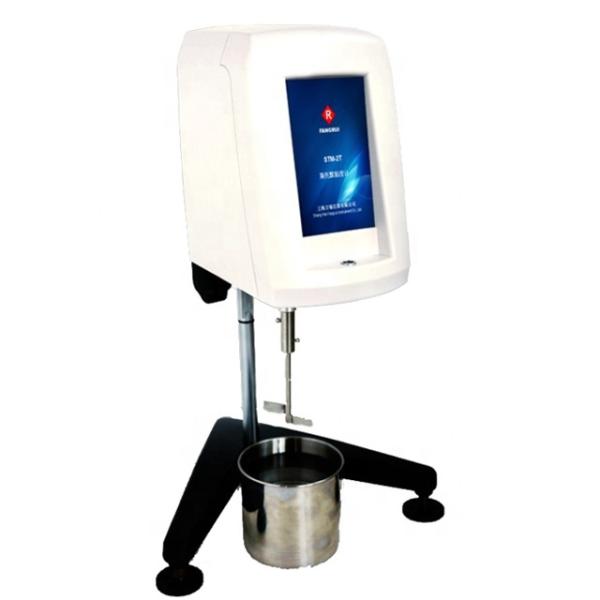

Brookfield Portable Viscometer Price/Laboratory Viscosimeter
Touch Screen Viscometer with Advanced Features
This portable viscometer features a 5-inch color touch screen for comprehensive display of various parameters and working conditions. With self-built 30 test programs, users can quickly and accurately obtain viscosity and related sample data.
Key Features
  • ARM technology with built-in Linux system for simple operation interface
  • Precise viscosity measurement with automatic computer calibration
  • Rich display content including temperature, shear rate, shear stress, and more
  • Comprehensive functions including timing measurement, data storage, and real-time printing
  • Intuitive level adjustment system
  • Optional accessories including temperature probe, constant temperature bath, and printer
  • Bilingual operating system (English and Chinese)
Technical Specifications
Model NDJ-5T NDJ-9T NDJ-8T
Control/Display Mode 5 inches color touch screen
Speed (r/min) 3/6/12/30/60 0.3/0.6/1.5/3/6/12/30/60 3/6/12/30/60
Measuring Range (mPa.s) 1~100,000 1~2,000,000 1~100,000
Rotor 1, 2, 3, 4# (standard), 0# Rotor (standard)
Measurement Error (Newtonian liquid) ±1% ±0.5% ±1%
Repetitive Error (Newtonian liquid) ±0.5% ±0.25% ±0.5%
Temperature Measurement Standard temperature sensor interface (optional sensor)
Working Power Supply Wide working voltage (110V/60Hz or 220V/50Hz)
Dimensions 300 × 300 × 450(mm)
Optional Accessories
  • Ultra low viscosity adapter (0# rotor)
  • Temperature probe (temperature sensor)
  • Micro thermal printer
  • Viscometer special thermostatic bath
Applications
Widely used for measuring fluid viscosity in various industries including paint, coatings, cosmetics, printing ink, paper pulp, food, oil, latex, starch, solvent-based adhesives, and biochemical products.
