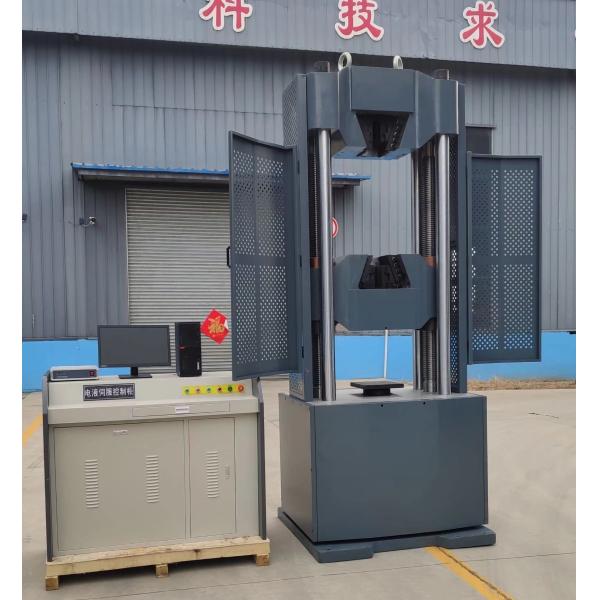

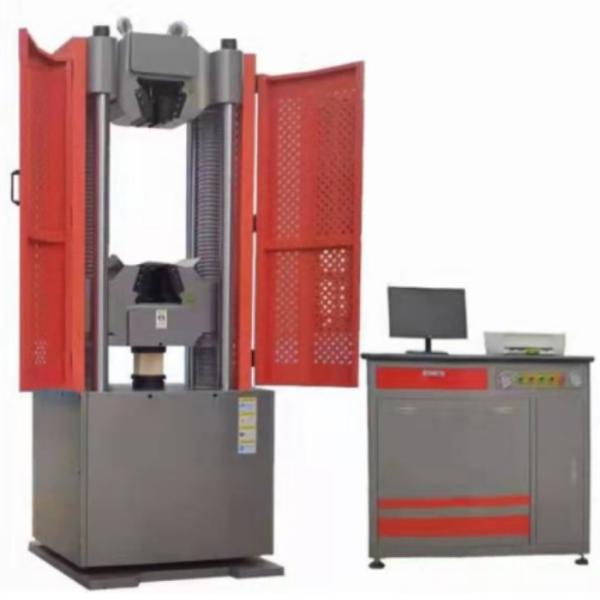

This advanced testing machine is designed for evaluating the physical, mechanical, and technological properties of various materials, including internal and external defects. It performs tensile, compression, bending, and shear tests on both metallic and non-metallic materials, automatically calculating key performance indicators such as tensile strength, yield strength, elastic modulus, and more.

• Closed-loop control for constant rate loading, deformation, displacement, and strain
• Hybrid servo motor gear pump system for stable, quiet operation
• External independent controller with USB data transfer capability
• Half-open structure fluctuation beam for enhanced stability and durability
• Multifunctional handheld controller for easy operation
• Advanced equipment operation monitoring system with safety protections
• Built-in clamping system for smooth specimen handling
• Elastic damping mechanism to reduce impact and noise
• Enhanced safety guards for operator protection
• Energy-efficient servo pump station with cartridge valve technology

• External Independent Controller: Integrated measurement, control, and transmission functions with USB support
• Universal Testing Machine Software: DSP technology with adaptive control algorithms for precise testing
• Operation Monitoring System: Phase sequence checking and electrical protection functions
• Handheld Control Box: Convenient operation of moving beam and clamping functions
• Pressure Monitoring: Real-time display of system pressures

• GB/T 2611-2007 Testing machine general technical requirements
• JB/T 7406.1-1994 Testing machine terminology
• GB/T 16826-2008 Electro-hydraulic servo universal testing machine
• GB/T 16825.1-2008 Static uniaxial testing machine
• GB/T 22066-2008 Computer data acquisition system evaluation
• JJG 139-2014 Tensile, pressure and universal material testing
• JB/T 6146-2007 Extensometer technical conditions
• GB/T 228.1-2010 Metal materials tensile test methods
• GB/T 7314-2017 Metal materials compression test methods
• GB/T 232-2010 Metal materials bending test methods
• ASTM A370 Standard test methods for mechanical properties of steel products
