Specifications
Model Number :
YAW-2000D
Brand Name :
LONROY
Place of Origin :
Guangdong, China
MOQ :
1
Platens Size :
Ø300 mm
Resolution :
1 N
Input Voltage :
220 V
Power Type :
Hydraulic
Max Force :
2000 kN
Test Force Range :
5%-100%
Force Error :
±1%
Plate Spacing :
320 mm
Piston Stroke :
50 mm
Column Spacing :
260 mm
Main Frame Size :
800*400*1200 mm
Motor Power :
2 kW
Total Weight :
750 kg
Pressure Plate Size :
Φ300 mm
Overload Protection :
3% of max force
Description
ISO 200ton Concrete Compression Testing Machine
Hydraulic Concrete Compressive Strength Tester for Steel Plates
High-precision digital servo valve measurement and control system with force closed-loop control function, capable of load rate or stress rate loading. Meets GB/T 17617 standards for cement sand strength testing, featuring automatic calculation and report printing.
Key Features
  • Hydraulic System: High-pressure pump circulates oil through precision components to achieve ISO-velocity test force control
  • Measurement System: High-precision amplifier and A/D converter with real-time display of load, speed, and peak intensity
  • Software Control: PID closed-loop control strategy for constant speed loading with load curve visualization
  • Safety Protection: Automatic overload protection (3% max force) and limit protection systems
Technical Specifications
Parameter Value
Max force (kN) 2000
Test force measurement range 5%-100%
Test force indication relative error < ±1%
Upper/lower pressure plate spacing (mm) 320
Piston stroke (mm) 50
Column spacing (mm) 260
Pressure plate size (mm) Φ300
Main frame size (mm) 800×400×1200
Motor power (kW) 2
Total weight (kg) 750
Standard Configuration
Component Quantity Details
Testing machine 1 SET Includes motor, oil pump, servo valve
Printer 1 set Inkjet
Measurement and control system 1 set
Force sensor 1 set 2000KN
Upper/lower pressure plate 1 set Φ155
System Interface & Reports
ISO 200ton Concrete Compression Testing Machine for Steel Plates Hydraulic Concrete Compressive Strength Tester Hydrauli

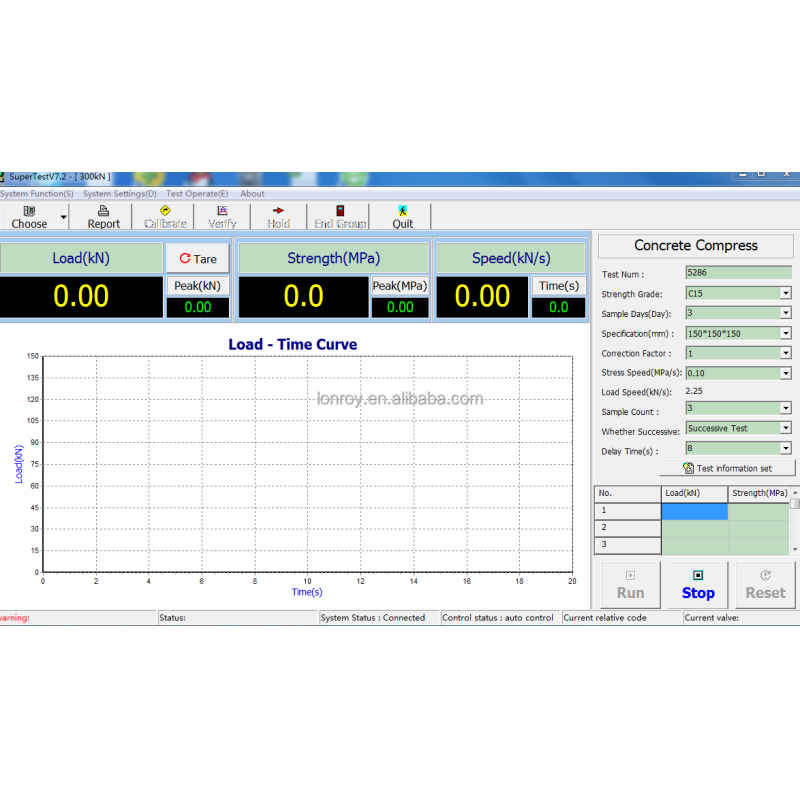

Main control interface
ISO 200ton Concrete Compression Testing Machine for Steel Plates Hydraulic Concrete Compressive Strength Tester Hydrauli

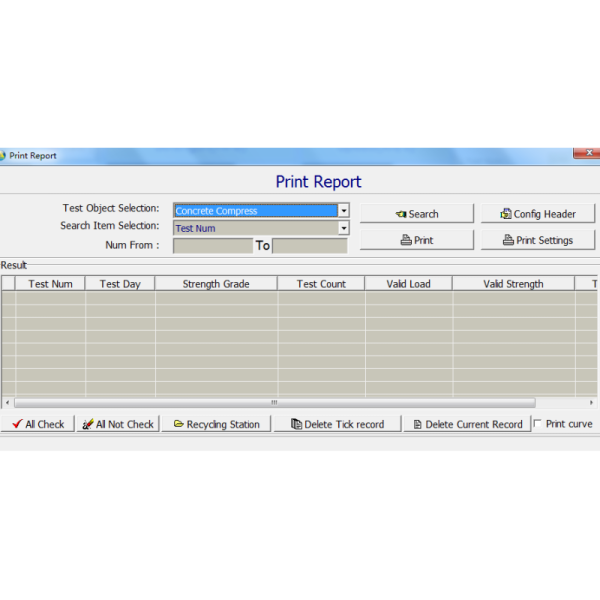

Test results output
ISO 200ton Concrete Compression Testing Machine for Steel Plates Hydraulic Concrete Compressive Strength Tester Hydrauli

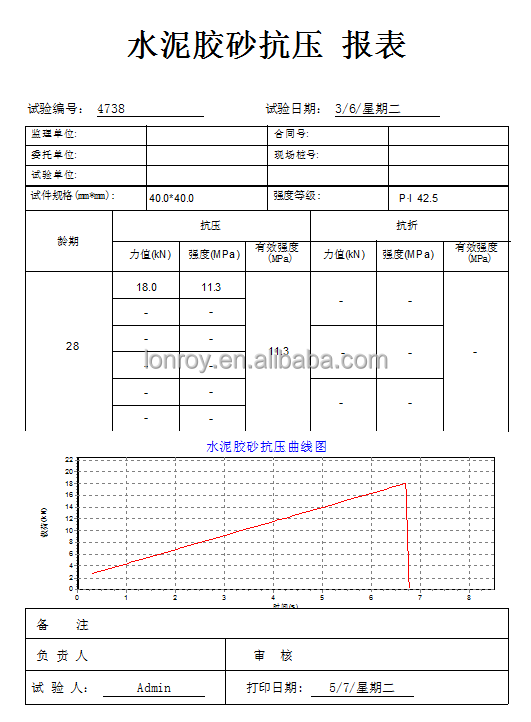

Automated report generation
Machine Overview
ISO 200ton Concrete Compression Testing Machine for Steel Plates Hydraulic Concrete Compressive Strength Tester Hydrauli

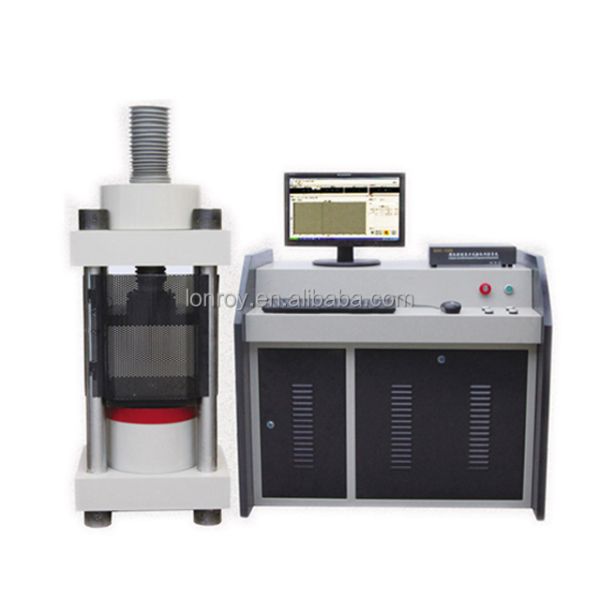

Complete testing machine assembly
ISO 200ton Concrete Compression Testing Machine for Steel Plates Hydraulic Concrete Compressive Strength Tester Hydrauli
Detailed component view
