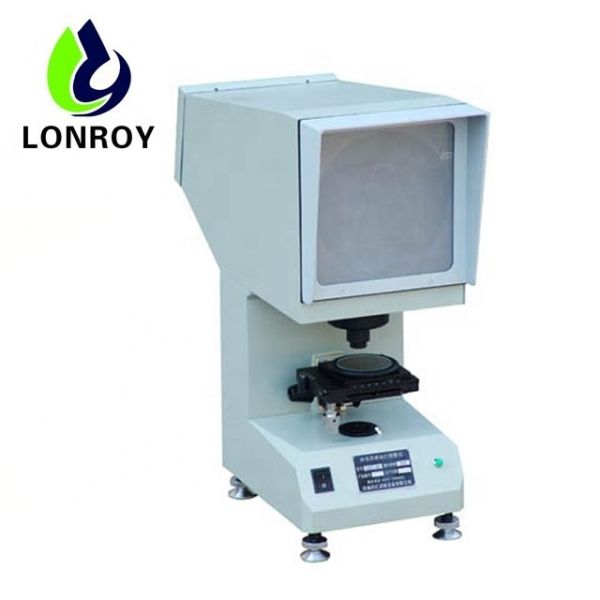

CST-50 Charpy Impact Projector - Impact Specimen Gap Inspection Equipment
Product Description
The CST-50 Charpy Impact Projector is a specialized optical instrument developed according to GB/T229-1994 standards for metal Charpy impact testing. This equipment uses optical projection to magnify impact test specimen V-type and U-type notches 50 times, projecting them onto a screen for comparison with standard templates to determine notch quality compliance.
Key Advantages
  • Precisely evaluates Charpy V-type and U-type notch quality
  • 50x magnification for accurate visual inspection
  • Simple operation with intuitive comparison method
  • Compliant with GB/T229-1994 testing standards
Working Principle
The projector illuminates the specimen with a light source through condenser optics. The objective lens projects a magnified outline of the specimen notch onto the projection screen. Through secondary magnification and reflection, the screen displays a positive image matching the actual specimen position for precise comparison with standard templates.
Technical Specifications
Parameter Specification
Screen diameter 180mm
Square table size 110×125mm
Round table diameter 90mm
Table glass diameter 70mm
Work table travel (lengthwise) ±10mm
Work table travel (crosswise) ±10mm
Vertical adjustment ±12mm (unscaled)
Table rotation range 0-360° (unscaled)
Total magnification 50x
Objective lens magnification 2.5x
Projection magnification 20x
Light source (halogen tungsten lamp) 12V, 100W
Power supply 220V, 50Hz
Dimensions (L×W×H) 515×224×603mm
Weight Approx. 18kg
