Specifications
Place of Origin :
China
Brand Name :
Lonroy
MOQ :
1
Input Voltage :
AC 380V ±10%, 50Hz
Power Supply Type :
DC: Switching power supply; AC: AC constant current source
AC Current :
1000A
DC Current :
10 - 1000A
Maximum Output Voltage :
10V
Current Output Method :
Set by computer
Ammeter Accuracy :
±1% + 3 digits
DC Voltage Drop :
0.01mV to 199.99mV; 0.1mV to 1999.9mV
Time Range :
0 - 9999.99 hours/minutes/seconds
Thermocouple Type :
T-type 30AWG thermocouple
Temperature Channels :
8-channel
Protection Class :
IP56
AC Open-Circuit Voltage :
10V
DC Open-Circuit Voltage :
10V
Incubator Function :
Temperature control and monitoring
Certification :
ISO ASTM CE
Price :
Negotaible
Packaging Details :
Wooden package
Delivery Time :
5-8 work days
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Description
JASO D609 Automotive Electrical Wire AC/DC Current Carrying Temperature Rise and Voltage Drop Testing System
Product Overview

This testing system is designed for evaluating automotive electrical wires under AC/DC current conditions, measuring temperature rise and voltage drop characteristics with precision.

Key Applications
  • Records temperature changes in conductors when subjected to specific current loads
  • Measures current magnitude at predetermined conductor temperatures
  • Tracks voltage drop variations during testing
  • Features automated cycle testing capability
Compliance Standards

JASO D609:2001, QC/T29106, QC/T 1067.1, QC/T 417.1, TICW15, and other relevant automotive electrical testing standards.

Technical Specifications
Parameter Specification
Input Voltage AC 380V ±10%, 50Hz
Power Supply Type DC: Switching power supply; AC: AC constant current source
Working Current & Open-Circuit Voltage - AC: 1000A, maximum open-circuit voltage: 10V
- DC: 10 - 1000A, maximum output voltage: 10V
Current Output Method Computer-controlled setting
Ammeter Accuracy ±1% + 3 digits
DC Voltage Drop Measurement Ranges: 0.01mV to 199.99mV; 0.1mV to 1999.9mV
Time Range 0 - 9999.99 hours/minutes/seconds with automatic current cutoff
Temperature Measurement Eight-channel test temperature instruments with T-type 30AWG thermocouples
Incubator Function Temperature control and monitoring capability

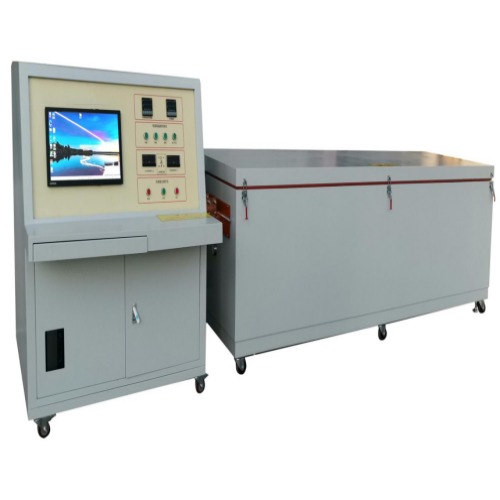

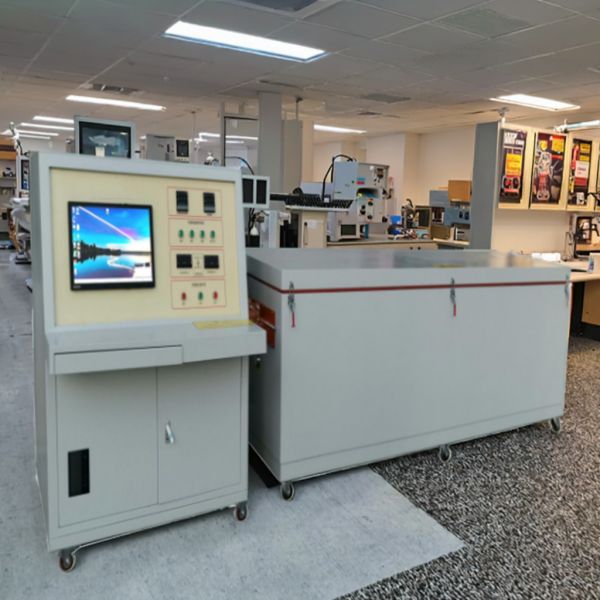

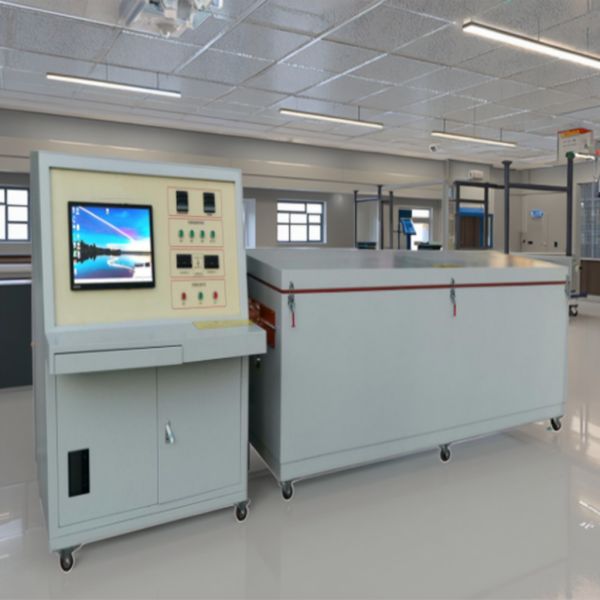

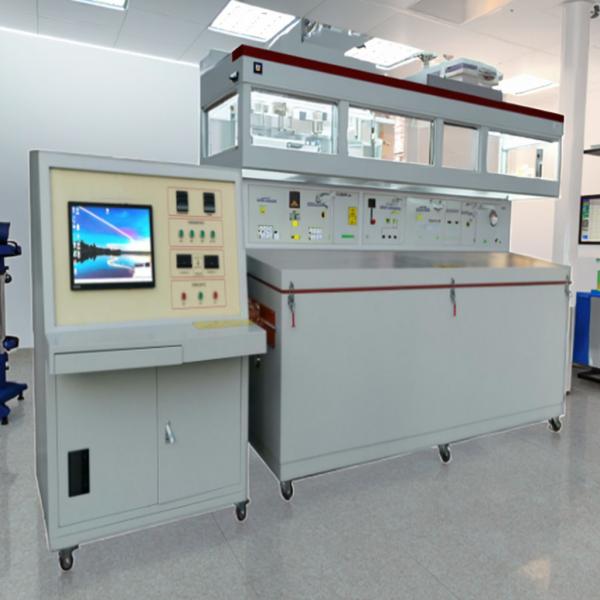

System Images
JASO D609 Automotive Wire AC/DC Current Carrying Temperature Rise Voltage Drop Testing System Textile Testing Machine JASO D609 Automotive Wire AC/DC Current Carrying Temperature Rise Voltage Drop Testing System Textile Testing Machine JASO D609 Automotive Wire AC/DC Current Carrying Temperature Rise Voltage Drop Testing System Textile Testing Machine JASO D609 Automotive Wire AC/DC Current Carrying Temperature Rise Voltage Drop Testing System Textile Testing Machine JASO D609 Automotive Wire AC/DC Current Carrying Temperature Rise Voltage Drop Testing System Textile Testing Machine
