ISO 874 AATCC 165 Manual Friction Color Fading Tester JIS L1084 BN 107 Manual Color Fade Test Device Textile Testing Mac
ISO 874 AATCC 165 Manual Friction Color Fading Tester JIS L1084 BN 107 Manual Color Fade Test Device Textile Testing Mac
Specifications
Place of Origin :
China
Brand Name :
Lonroy
MOQ :
1
Voltage :
220V
Product weight :
1 kg
Packaging weight :
2 kg
Dimensions :
127 mm × 83 mm × 178 mm
Number of workstations :
1
Protection class :
IP56
Material of key components :
Stainless steel
Friction tips :
15mm organic glass
Sample cutting requirement (AATCC) :
50mm × 50mm right-angled squares
Sample cutting requirement (ISO) :
50mm × 50mm decorative square grids
Friction finger size :
15mm
Load control :
Calibrated weights
Detection travel control :
Narrow slot at bottom
Sample position control :
Serrated edge
Friction head customization :
Available
Certification :
ISO ASTM CE
Price :
Negotaible
Packaging Details :
Wooden package
Delivery Time :
5-8 work days
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Description
ISO 874 AATCC 165 Manual Friction Color Fading Tester
Portable Manual Color Fade Test Machine Compliant with JIS L 1084 & Ford BN 107 Standards
The manual friction color fading tester is a lightweight, portable solution for standard friction fading tests. It precisely measures color transfer from materials like fabrics and plastics to other surfaces, featuring key specifications for finger size, friction force, and stroke.
Key Features

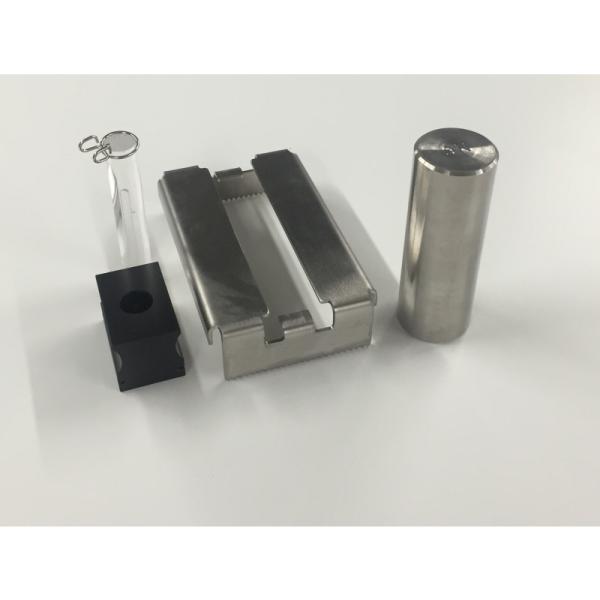

  • Portable design with precise friction testing capabilities
  • Acrylic friction finger with anti-rotation key for consistent testing
  • Replaceable friction tips (15mm standard, customizable options available)
  • Allows testing on bolt/hidden areas without sample cutting
  • Controlled detection travel via bottom slot mechanism
  • Calibrated weights for accurate load control
  • Serrated edge for secure sample positioning
  • Includes toolbox with deionized water and testing cloths
Compliant with Standards: ISO 874, AATCC Method 8, AATCC Method 165, JIS L 1084, Ford BN 107-01, CFFA-7, ASTM D5053, JIS L 0849
Technical Specifications
Specification Value
Product Weight 3 lbs / 1 kg
Packaging Weight 5 lbs / 2 kg
Dimensions 5" * 3.3" * 7" (127 mm * 83 mm * 178 mm)
Workstations 1
Key Component Material Stainless steel (main body and weights)
Testing Requirements
AATCC Friction Fading Tester: 2 * 2" (50mm * 50mm) right-angled square samples (AATCC 1 compliant)
ISO Friction and Fade Tester: 2 * 2" (50mm * 50mm) decorative square grid samples (ISO 874 compliant)
