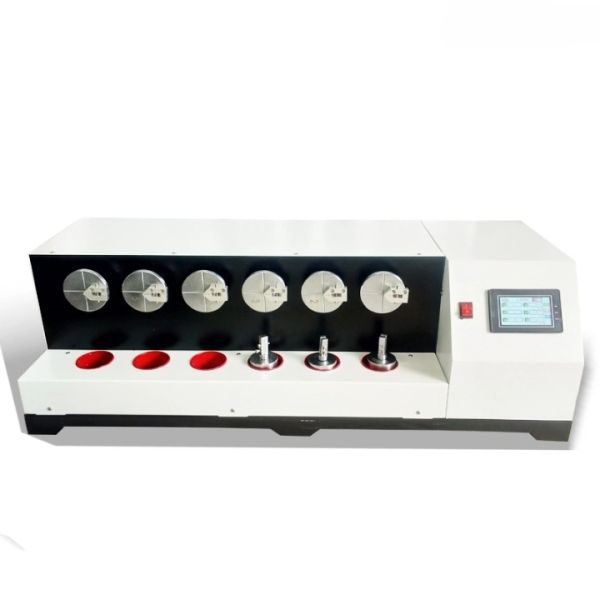

BS 5131 SATRA TM3 Shoe Midsole Fiber Board Bending Test Machine Leather Shoes Bend Resistance Tester Textile Testing Mac
BS 5131 SATRA TM3 Shoe Midsole Fiber Board Bending Test Machine Leather Shoes Bend Resistance Tester Textile Testing Mac
Specifications
Place of Origin :
China
Brand Name :
Lonroy
MOQ :
1
Voltage :
220V
Power Supply :
1Ω, AC 220V, 50Hz
Dimensions :
109 × 26 × 34 cm
Weight :
149 kg
Pitch speed :
(60 ± 10) r/min
Test fixtures :
6
Test piece :
80 × 10 mm
Reciprocating bending angle :
90°
Weight with lower fixture :
(2 ± 0.01 kg) × 6
Counter :
LCD, 0 - 999999 (7 groups)
Clamp length :
15mm; 10mm
Motor type :
DC brushless motor
Protection Class :
ip56
Power Supply Amperage :
3A
Test piece dimensions :
80 × 10 mm
Certification :
ISO ASTM CE
Price :
Negotaible
Packaging Details :
Wooden package
Delivery Time :
5-8 work days
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Description
BS 5131 SATRA TM3 PM4 Shoe Midsole Fiber Board Bending Test Machine
Leather Shoes Bending Resistance Tester
The shoe midsole fiber board bending test machine evaluates the bending resistance quality of midsole fiber boards used in leather shoes, casual shoes, walking shoes, and other footwear. During testing, samples are continuously bent 90 degrees left and right until breakage occurs. The number of bends at breakage determines the bending resistance index, providing a basis for midsole board comparison and selection.
Key Features
  • Tests bending resistance of shoe midsole fiber boards
  • Continuous 90° left-right bending until breakage
  • Records number of bends to determine resistance index
  • Supports comparison and selection of midsole materials
Reference Standards
QB/T 1472, BS 5131:4.2, SATRA TM3, PM4, PM5, PM6, PM15, PM16
Technical Specifications
Specification Value
Test fixtures 6
Test piece 80 * 10 mm
Reciprocating bending angle 90°
Weight with lower fixture (2 ± 0.01 kg) * 6
Pitch speed (60 ± 10) r/min
Counter LCD, 0 - 999999 (7 groups)
Clamp length of sample holder 15mm (top clamp), 10mm (bottom clamp)
Motor DC brushless motor
Dimensions 109 * 26 * 34 cm
Weight 149 kg
Power Supply 1Ω, AC 220V, 3A
BS 5131 SATRA TM3 Shoe Midsole Fiber Board Bending Test Machine Leather Shoes Bend Resistance Tester Textile Testing Mac
BS 5131 SATRA TM3 PM4 Shoe Midsole Fiber Board Bending Test Machine
BS 5131 SATRA TM3 Shoe Midsole Fiber Board Bending Test Machine Leather Shoes Bend Resistance Tester Textile Testing Mac
Detailed view of the Bending Resistance Tester
