Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
/
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
220 V
warranty :
1 Year
Friction hammer load :
450g
Overall dimensions :
600*450*540mm
Machine weight :
40kg
Power Supply :
AC 220V
MOQ :
1
Description

UL 2556 UL 758 Print Fastness Abrasion Test Machine UL 1581 UL 1690 Ink Printing Durability Tester Wear Resistance Test

UL 2556 UL 758 Ink Type Font Firmness Wear Resistance Testing Machine UL 1581 UL 1690 Ink Printing Durability Tester

Introduction

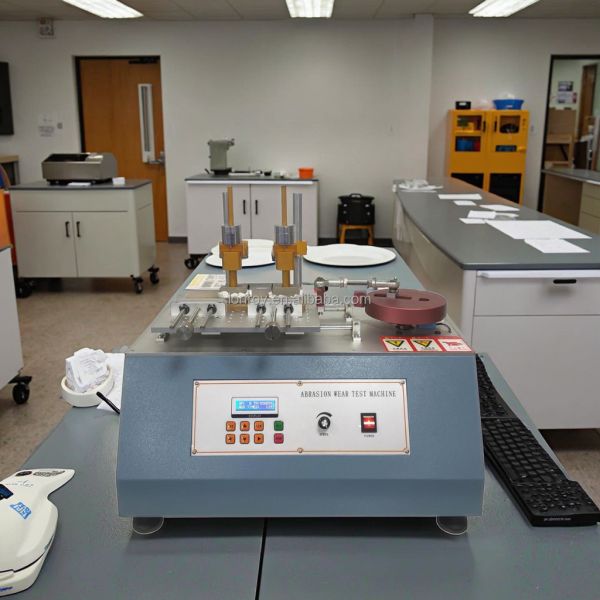

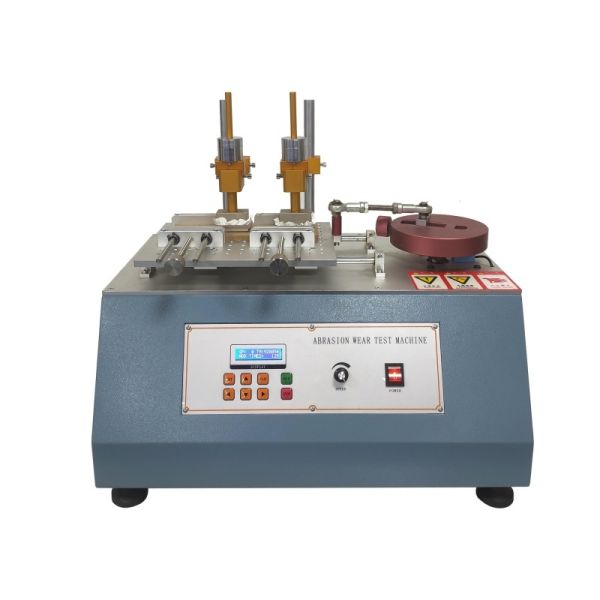

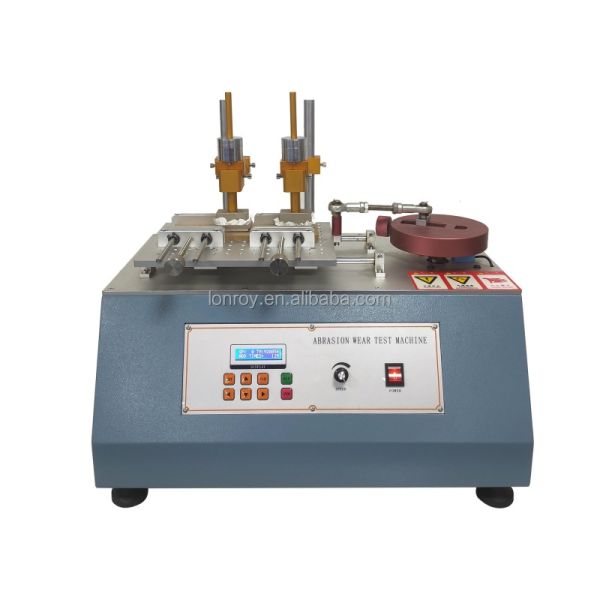

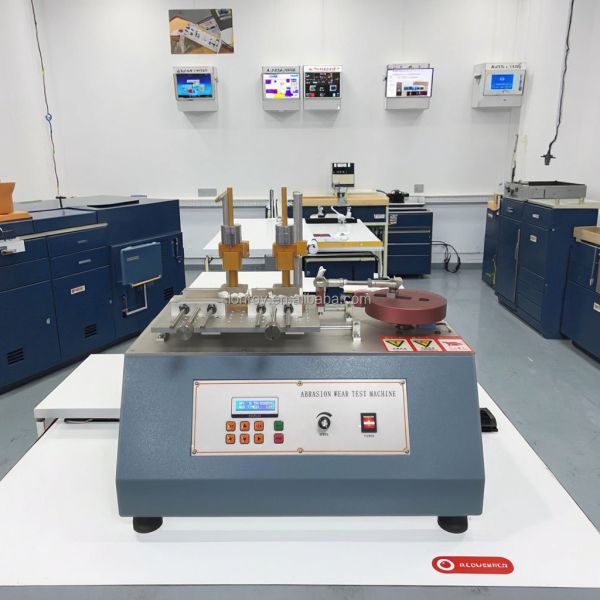

This machine complies with the requirements of UL 1581 and 1690 standards. It is suitable for conducting durability tests on non-erasable ink printing on the surface of wires and cables.

Test method: Fix a wire approximately 300mm long on the machine's table with the printed side facing up. Wrap a white cotton cloth around the friction hammer and apply a certain load, speed and reciprocating stroke to rub the printed side to check the firmness of the printing. It can also be used to test the firmness of printed characters on plastic surfaces. This machine is easy to adjust and has obvious effects. It is currently a relatively specialized experimental device.

UL 2556 UL 758 Ink Type Font Firmness Wear Resistance Testing Machine UL 1581 UL 1690 Ink Printing Durability Tester

Technical Specification

Friction speed

10 to 40 C.P.M. adjustable at will

Friction distance

40 to 100mm adjustable

Friction hammer load

450g

Friction fixture size

25×50mm

Automatic counting

0 to 999999 settable

Test capacity

Two sets of tests can be conducted simultaneously

Power

40W

Overall dimensions

600×450×540mm

Machine weight

40kg

Power supply

AC 220V
