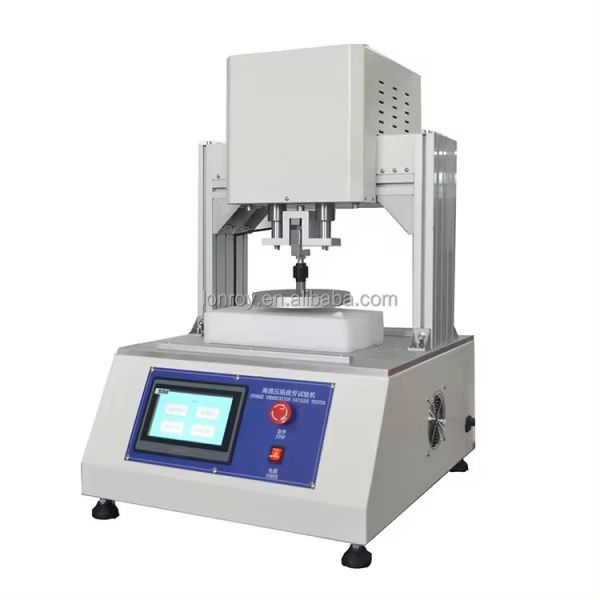

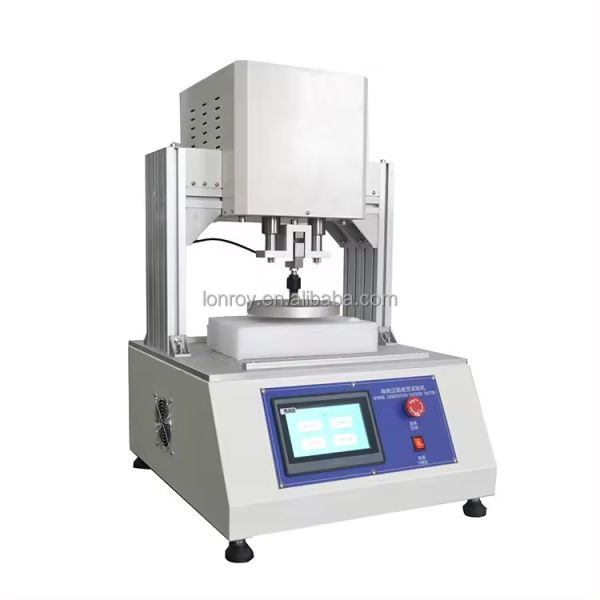

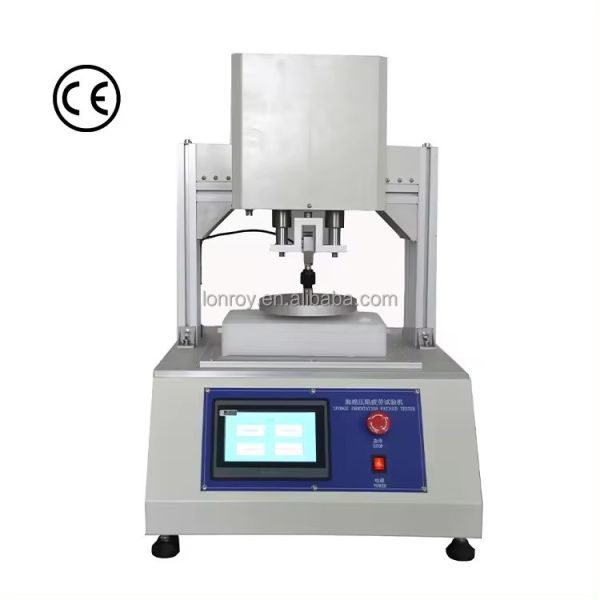

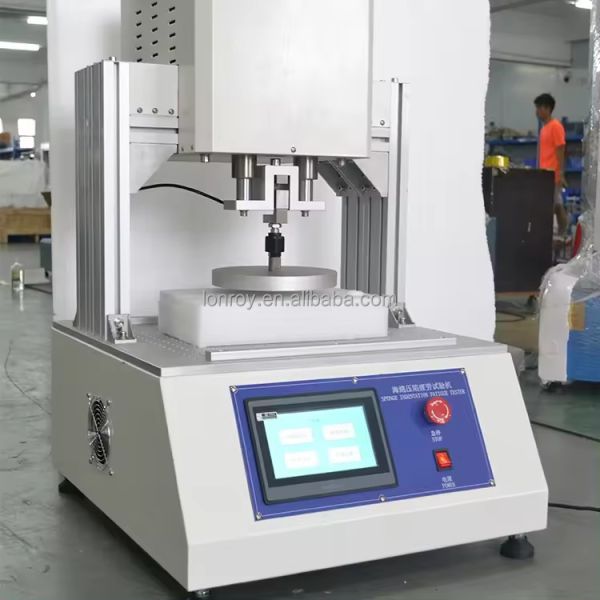

Sponge Compression Fatigue Tester/Fixed Polyurethane Testing Machine ISO 2439 ISO 3386 Film Testing Equipment Film Film
Sponge Compression Fatigue Tester/Fixed Polyurethane Testing Machine ISO 2439 ISO 3386 Film Testing Equipment Film Film
Sponge Compression Fatigue Tester/Fixed Polyurethane Testing Machine ISO 2439 ISO 3386 Film Testing Equipment Film Film
Sponge Compression Fatigue Tester/Fixed Polyurethane Testing Machine ISO 2439 ISO 3386 Film Testing Equipment Film Film
Sponge Compression Fatigue Tester/Fixed Polyurethane Testing Machine ISO 2439 ISO 3386 Film Testing Equipment Film Film
Sponge Compression Fatigue Tester/Fixed Polyurethane Testing Machine ISO 2439 ISO 3386 Film Testing Equipment Film Film
Sponge Compression Fatigue Tester/Fixed Polyurethane Testing Machine ISO 2439 ISO 3386 Film Testing Equipment Film Film
Sponge Compression Fatigue Tester/Fixed Polyurethane Testing Machine ISO 2439 ISO 3386 Film Testing Equipment Film Film
Sponge Compression Fatigue Tester/Fixed Polyurethane Testing Machine ISO 2439 ISO 3386 Film Testing Equipment Film Film
Sponge Compression Fatigue Tester/Fixed Polyurethane Testing Machine ISO 2439 ISO 3386 Film Testing Equipment Film Film
Specifications
Brand Name :
LONROY
Place of Origin :
Guangdong, China
customized support :
OEM, ODM, OBM
power :
Electronic
warranty :
1year
Model Number :
LR-190
Effective Accuracy :
±1%
Power supply :
220v 50/60HZ
Capacity :
50, 100, 200, 500Kg
Resolution :
1/25,000
MOQ :
1
Description

Sponge Compression Fatigue Tester/Fixed Polyurethane Testing Machine ISO 2439 ISO 3386 Film Testing Equipment Film Film

Sponge compression fatigue tester/Fixed polyurethane testing machine ISO 2439 ISO 3386

Summary:

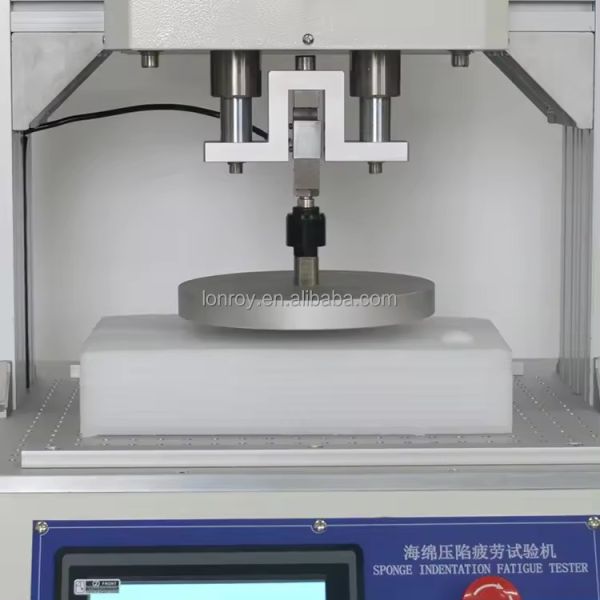

Foam Indentation Hardness Compression IFD Tester is used to test material compressed indentation hardness, such as sponge, foam and other porous elastic. Put specimen under pressure plate, the plate compress the specimen with a specify speed until the national standard require concavity, the load cell feedback the pressure to micro computer, it processing and display, then measure the indentation hardness of sponge, foam and other materials.

Sponge compression fatigue tester/Fixed polyurethane testing machine ISO 2439 ISO 3386

Applicable Testing Standards

ISO 2439: Flexible cellular polymeric materials — Determination of hardness (indentation technique)

ISO 3386-1: Polymeric materials, cellular flexible — Determination of stress-strain characteristic in compression

ASTM D3574: Standard Test Methods for Flexible Cellular Materials—Slab, Bonded, and Molded Urethane Foams

DIN 53576, JIS K6400-6

ETC...

Sponge compression fatigue tester/Fixed polyurethane testing machine ISO 2439 ISO 3386

Speficiations:

Control and display

Touch Screen

Sensor

USA “TRANSCELL” Load cell

Capacity

100, 200 KG (or specified)

Unit

G, KG, N, LB can be exchanged

Accurate Grade

1 grade

Up plate

Diameter 200mm, bottom fillet R1mm (or customized)

Low plate

420×420mm, holes diameter 6mm, space 20mm (or customized)

Max stroke

200mm

Test speed

100 ± 20mm/min (0.01~500mm/min adjustable)

Motor

Convertor Motor

Driver

Taiwan high precision ball screw

Power

AC220V, 50/60HZ (custom-made)

Features:

1. Automatic return: after the sample breaks, it automatically returns to the original position.

2. Automatic shift: according to the size of the load, you can switch different gears to ensure the measurement accuracy;

3. Change the speed: the machine can change the test speed arbitrarily according to different samples;

4. Control method: test methods such as test force, test speed, displacement and strain can be selected according to test requirements.

5. Multi-purpose machine: support equip with different specifications of sensors, can achieve multi-purpose machine;

6. Display: dynamic display of data and curve test process;

7. Limit: with program control and mechanical limit;

8. Overload: automatic shutdown when load exceeds rated value;Sponge Compression Fatigue Tester/Fixed Polyurethane Testing Machine ISO 2439 ISO 3386 Film Testing Equipment Film FilmSponge Compression Fatigue Tester/Fixed Polyurethane Testing Machine ISO 2439 ISO 3386 Film Testing Equipment Film FilmSponge Compression Fatigue Tester/Fixed Polyurethane Testing Machine ISO 2439 ISO 3386 Film Testing Equipment Film FilmSponge Compression Fatigue Tester/Fixed Polyurethane Testing Machine ISO 2439 ISO 3386 Film Testing Equipment Film FilmSponge Compression Fatigue Tester/Fixed Polyurethane Testing Machine ISO 2439 ISO 3386 Film Testing Equipment Film Film
