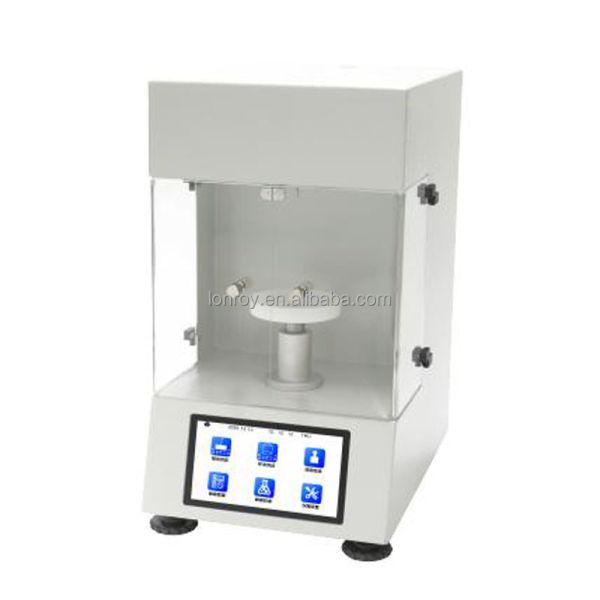

BZY100/BZY200 Automatic Interfacial Tensiometer for Oil Liquid Values Surface Tension Meter
BZY100/BZY200 Automatic Interfacial Tensiometer for Oil Liquid Values Surface Tension Meter
BZY100/BZY200 Automatic Interfacial Tensiometer for Oil Liquid Values Surface Tension Meter
BZY100/BZY200 Automatic Interfacial Tensiometer for Oil Liquid Values Surface Tension Meter
Specifications
Brand Name :
LONROY
Place of Origin :
Guangdong, China
customized support :
OEM, ODM, OBM
power :
Electronic
warranty :
1 Year
Model Number :
BZY100/BZY200
MOQ :
1
Description

BZY100/BZY200 Automatic Interfacial Tensiometer for Oil Liquid Values Surface Tension Meter

Summary

High performance weight sensing based on the principle of electromagnetic force balance

Accurate measurement and good repeatability.

Both the platinum plate method and the platinum ring method are used.

Automatic measurement, one key value.

Range correction, accuracy correction function to ensure the length of the instrument

Period of accurate measurement.

Save the data and print it directly.

Interchange of Chinese and English

BZY100/BZY200 Automatic Interfacial Tensiometer for Oil Liquid Values Surface Tension Meter

Features:

*BZY100 and BZY200 are the upgraded products of BZY-101, BZY-102, BZY-201, BZY-202, etc., which are greatly improved in performance.

* 4.3-inch touch screen, all operations and information are completed or displayed on the screen;

* The electromagnetic force balance principle of the sensor, high sensitivity, high precision, high repetition;

* Platinum plate method, platinum ring method;

* Automatic measurement, no calculation, directly display the surface tension value or interfacial tension value;

* One key clear zero, one key correction; Digital processing technology, no deviation;

* Users can calibrate data with standard samples (distilled water and pure ethanol) to ensure measurement accuracy;

* Display measurement curve in real time, save measurement results, print main parameters, data and curves;

* Double door transparent plexiglass wind hood, easy to operate, reduce the use of environmental requirements;

* Password management function to ensure data traceability, prevent data modification and mis-deletion;

* Chinese/English interchange operation

Standards

ASTM D971 , ASTM D1331 ,ASTM D1417 ,DIN EN 14210 ,DIN EN 14370 ,ISO 304 ,ISO 1409 .ISO 4311,ISO 6889

BZY100/BZY200 Automatic Interfacial Tensiometer for Oil Liquid Values Surface Tension Meter

Product Specifications

Model

BZY100

BZY200

Test Method*

Du Nouy Ring Method & Wilhelmy Plate Method

Test Range

0-1000mN/m

0-1000mN/m

Resolution

0.1mN/m

0.01mN/m

Operation Method

Automatic lifting and lowering of sample stage Automatic measurement

Display Method

4.3-inch touch screen data direct reading

Data Method

Support data storage/view/print

Measure Time

Normally within 60 seconds

Data Output**

RS232 (Printer)

Dimensions

28*20*36cm(L*W*H)

Net Weight

8kg

Power Supply

110V or 220V ,30W


BZY100/BZY200 Automatic Interfacial Tensiometer for Oil Liquid Values Surface Tension Meter

Application field

1) Oil aging test, especially transformer oil (ASTM D-971)

2) Determination of Surfactant Effectiveness in Wetting Agents and Cleaners Test Surfactant Solution Concentration.

3) Canning approval and cleaning validation in the food industry.

4) Interfacial tension measurements for quality control and optimization of emulsifiers.

5) Cooling lubricant surface tension test.

BZY100/BZY200 Automatic Interfacial Tensiometer for Oil Liquid Values Surface Tension MeterBZY100/BZY200 Automatic Interfacial Tensiometer for Oil Liquid Values Surface Tension MeterBZY100/BZY200 Automatic Interfacial Tensiometer for Oil Liquid Values Surface Tension Meter
