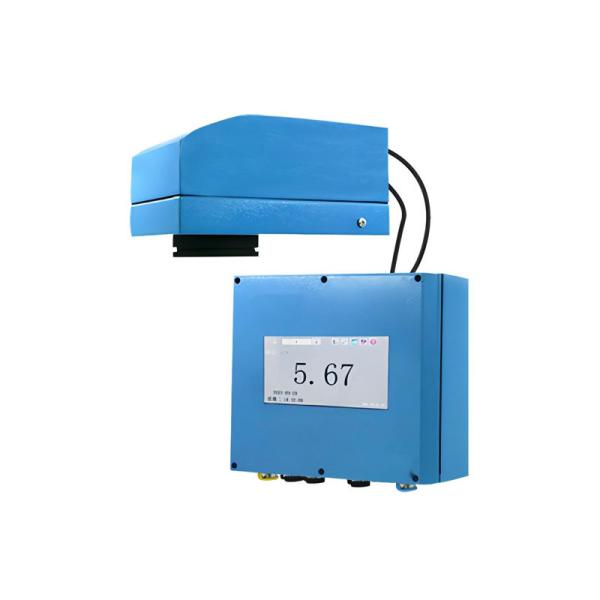

Online Infrared Moisture Meter Online NIR Analytical Instrument Infrared Online Moisture Analyzer

Introduction
Infrared online moisture analyzer, non-contact, continuous, real-time, on-line measuring moisture. The distance is 20cm-40cm, high accuracy, wide range, and provides 4-20mA current signal, automated control

Principle
It is the use of water molecules on the infrared spectral absorption characteristics, to measure the moisture content of the measured object.

Advantages

Measuring range: 0-99% (can OEM)

The probe is imported from the United States

Standard 4-20mA output

The probe is not affected by the change of external light without a light shield

It has automatic temperature compensation and is not affected by external temperature changes

Feature
1. Fast measurements
With long-life high-speed brushless motor, imported high response infrared sensors, information processing chip FPGA + DSP + ARM9 combination, to ensure the real-time data acquisition, improve measurement precision and stability.
2. Reliability
With dual optical detectors, the optical system for monitoring and compensation, moisture measurement from the sensor to ensure effects of aging.
3. Non-contact and fast response
Online fast continuous measurement and non-contact measurement, the measured object can fluctuate between 20-40cm, online dynamic real-time detection, to achieve a real-time control of product moisture content.
4. Stable performance, high precision
5-beam infrared moisture analyzer, its stability compared four beam and six beam greatly improved, in order to ensure the
measurement more accurate and more stable.
5. Easy to install, easy to operate
Instrument easy installation, using a predetermined calibration, only need fix the intercept (zero) to complete the demarcation.Using single-chip digital operation, easy to operate

Online Infrared Moisture Meter Online NIR Analytical Instrument Infrared Online Moisture Analyzer

Technical Specification
