Specifications
Standard :
GB/T 9279 ,ISO 1518,12137-2,ASTM D 2197,D 5178
Price :
$1,200
Voltage :
220 V, Other
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
warranty :
1 Year
Protection Class :
Ip56
customized support :
OEM, ODM, OBM
Accuracy Class :
High Accuracy
Brand Name :
LONROY
MOQ :
1
Type :
Testing Machine
power :
---
Accuracy :
/
Description

ZHY ISO 1518 ASTM D2197 Automatic Scratch Tester ISO 12137 ASTM D5178 Paint Coating Film Scratch Resistance Testing Machine

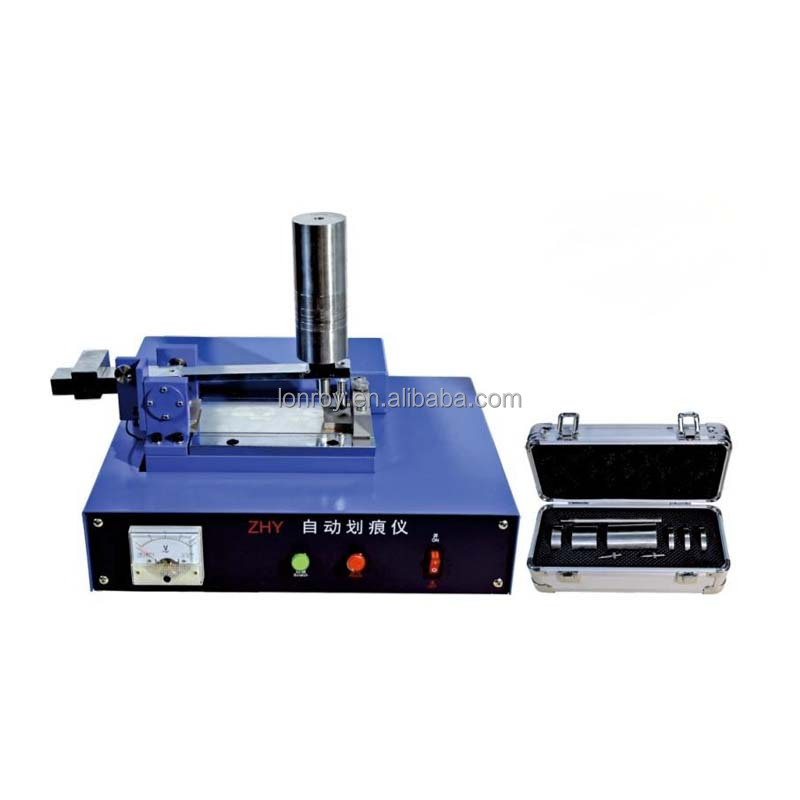

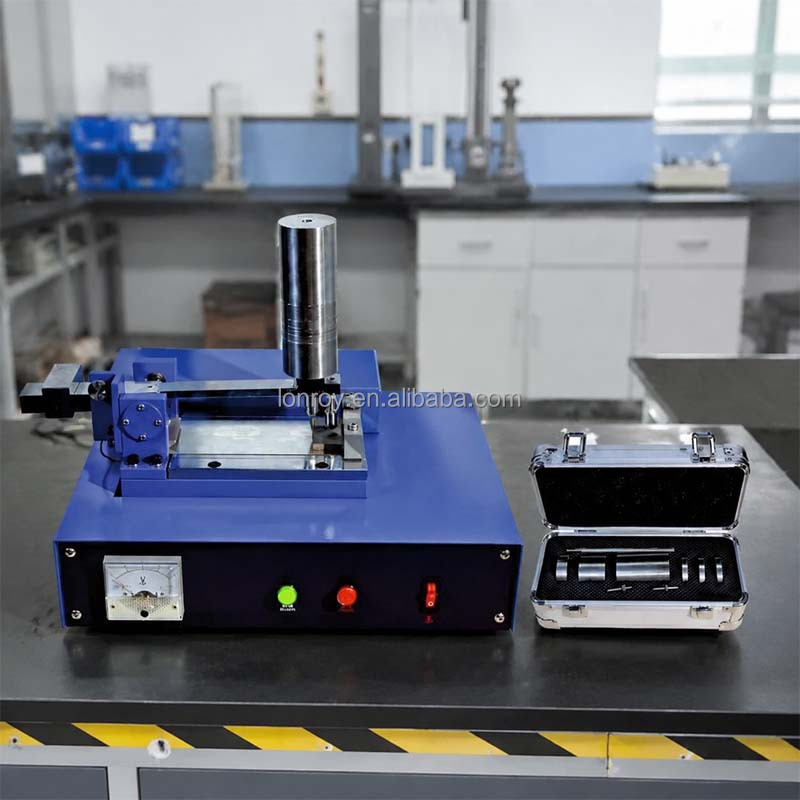

Automatic Scratch Tester

Used to test the scratch resistance of metal surface coatings, such as coil paint, tin can ink, metal paint, automotive surface coatings, etc. It is also applicable for evaluating the surface scratch resistance of single or composite coatings on color coated boards. Evaluate the scratch resistance of the coating based on the maximum weight of a spherical steel needle that has scratched or not scratched the coating under a certain weight. During testing, use a hemispherical scribe with a diameter of 1mm to slowly touch the surface being tested and make a scratch approximately 10cm long. Depending on the testing purpose and the load applied, varying degrees of penetration can be observed, ranging from surface traces to thorough penetration. The motor drives the sample to lightly contact the scratch needle, which runs over the sample and automatically stops when it reaches the endpoint. The contact between the scratch needle and the metal substrate is identified by a voltmeter. When the coating of the tested sample is scratched, the ammeter shows that there is current passing through.

Standard: GB/T 9279 ,ISO 1518,12137-2,ASTM D 2197,D 5178

ZHY ISO 1518 ASTM D2197 Automatic Scratch Tester ISO 12137 ASTM D5178 Paint Coating Film Scratch Resistance Testing Machine

Technical Parameter

Input Voltage

220V AC 50Hz

Needle Diameter

1 mm

Load Weight

50-2000 g

Running Itinerary

100 mm

Sample Size

150×70 mm

Running Speed

30 mm/sec

External Dimensions

380×300×180 mm

Shipping Weight

30 kg
