ASTM D4294 X-Ray Spectroscopic Sulfur Sample Tester Fluorescence Micro Sulfur Testing Machine XRF Polymer Sulfides Analyzer

Product Introduction

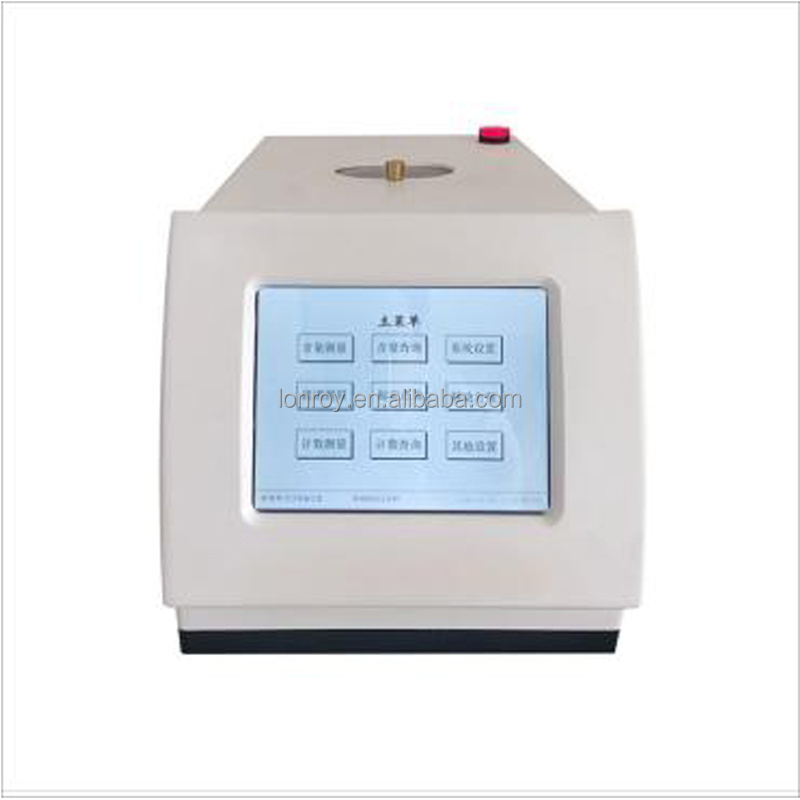

The HH-17040X fluorescence sulfur analyzer is a specialized analyzer designed based on energy-dissipative X-ray fluorescence spectroscopy. The analyzer's principle, design structure, instrument components, analytical method operation procedures, errors, and reproducibility all comply with GB/T 17040, GB/T 11140, and ASTM D4294, "Determination of Sulfur Content in Crude Oil and Crude Oil Products."

Main Applications

Measuring the sulfur content of crude oil, crude oil, heavy oil, diesel oil, kerosene, and naphtha;

Measuring the total sulfur content in coal chemical products, such as primary benzene;

Measuring the sulfur content in other liquid or solid fine powder samples, such as crude oil coke.

Instrument Features

1. Intelligent electromechanical integrated microcomputer design, 8-inch wide-view capacitive touchscreen (1024*768) display;

2. Employs ultra-thin beryllium window proportional counter tubes and original color filters;

3. Wide range of detectable varieties, wide detection range, fast analysis speed (as fast as 1 minute), and low standard sample consumption;

4. The instrument has automatic diagnostic functions to monitor the instrument's operating status and electrical parameters;

5. Disposable Mylar membrane sample cups avoid cross-contamination, and sample cup preparation is convenient and quick;

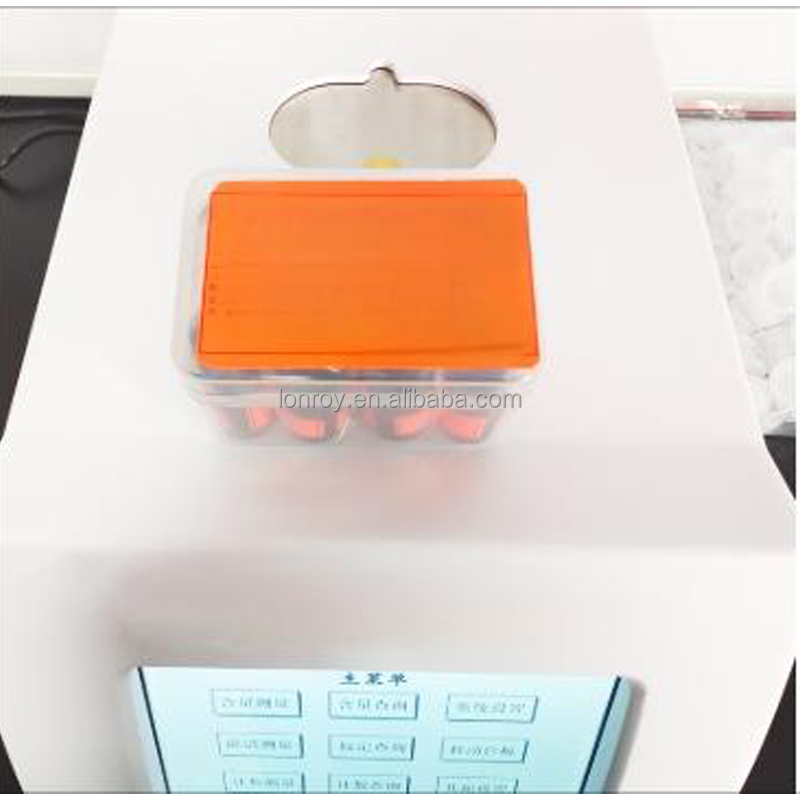

6. Precise sample stage positioning, convenient sample placement and replacement of leak-proof oil membrane, and minimizes the possibility of contamination of the detection system;

7. Large instrument data storage capacity: 4096 content analysis results and 8192 count measurement data, 16 8. Instrument calibration results data;

9. Results data are automatically sent to the host computer via serial port upon completion of content detection;

10. Silent thermal printer automatically prints test results;

11. Instrument automatically selects the operating curve, requiring no user input;

12. User can select the measurement result unit: ppm or (m/m)%;

13. Safe radiation protection measures ensure no ionizing radiation harm to individuals or groups.

ASTM D4294 X-Ray Spectroscopic Sulfur Sample Tester Fluorescence Micro Sulfur Testing Machine XRF Polymer Sulfides Analyzer

Technical Specifications
