Specifications
Accuracy Class :
High Accuracy
power :
---
MOQ :
1
Place of Origin :
Guangdong, China
Type :
Testing Machine
Brand Name :
LONROY
Protection Class :
Ip56
warranty :
1 Year
Voltage :
220 V, Other
Heavy hammer weight :
300 g, 500 g, 1000 g
customized support :
OEM, ODM, OBM
Accuracy :
/
Application :
Auto Testing, Laboratory Testing, Lab Testing
Price :
$958
Description

DCJ-II ASTM D2794 DuPont Impact Tester Materials Firmness Testing Machine JIS K5400 Coatings Deformation Resistance Test Device

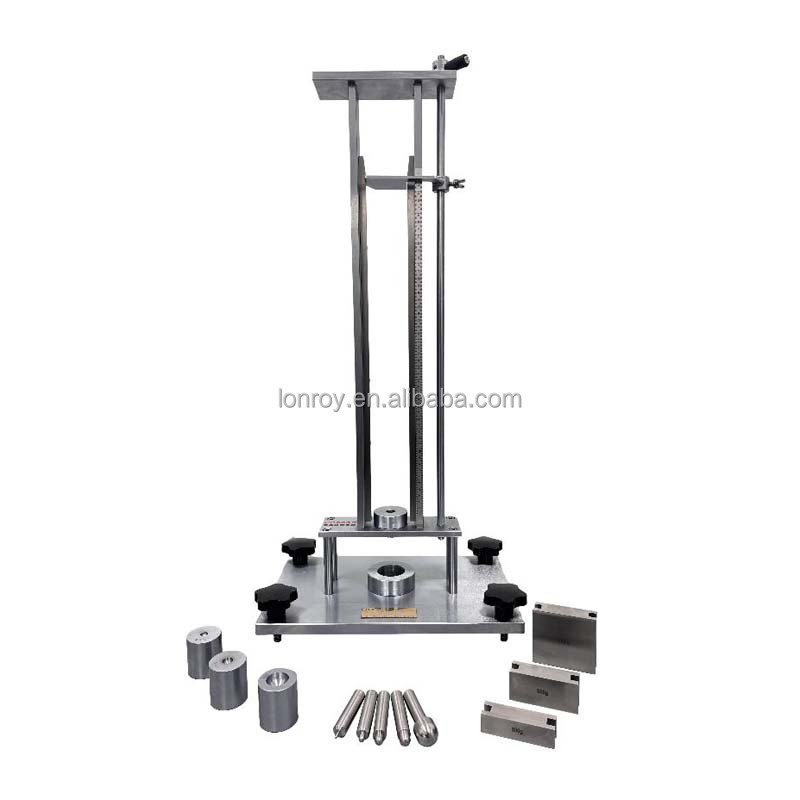

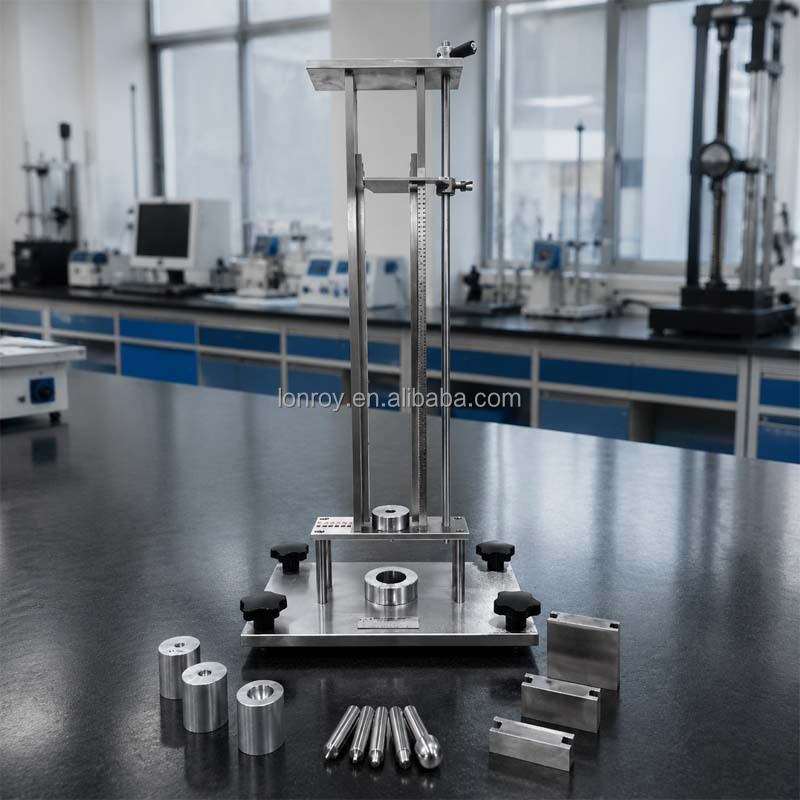

DuPont Impact Tester

The DCJ-II DuPont impactor is suitable for testing the firmness of materials such as plastic, ceramics, acrylic, fiberglass, and test coatings. The principle is to adjust a steel ball of a specified weight to a certain height, allowing it to fall freely, strike the sample, and observe the degree of damage.

Standard:

CNS 10756 "General Inspection Method for Coatings"

JIS-K5400 "General Test Methods for Coatings"

ASTM-D2794 "Standard Test Method for Resistance of Organic Coatings to Rapid Deformation"

DCJ-II ASTM D2794 DuPont Impact Tester Materials Firmness Testing Machine JIS K5400 Coatings Deformation Resistance Test Device

Technical Parameter

Order Number

LR 2699

DuPont impactor (500mm)

LR 2699/1

DuPont impactor (1000mm)

Falling height of heavy hammer

50-500mm (with each 50mm as a level, adjustable freely)

50-1000mm (with each 50mm as a level, adjustable freely)

Heavy hammer weight

300 g, 500 g, 1000 g

Punch radius

Five types: 1/2 ", 1/4", 1/8 ", 1/16", and 3/16 "

Mold seat radius

Five types: 1/2 ", 1/4", 1/8 ", 1/16", and 3/16 "

Instrument info.

390*250*840mm (28 KG)

380*240*1340mm (34 KG)

Shipping info.

470*330*1020mm (39 KG)

450*270*1400mm (49 KG)
