Specifications
Price :
$591
Type :
Testing Machine
Standard :
GB/T 2794,ISO 2884-2, 2555,ASTM D 2196
MOQ :
1
Accuracy :
/
Protection Class :
Ip56
Brand Name :
LONROY
Accuracy Class :
High Accuracy
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---
Voltage :
220 V, Other
Place of Origin :
Guangdong, China
warranty :
1 Year
Description

ISO 2884 ASTM D2196 Touch Screen Viscometer NDJ-5SE ISO 2555 Digital Rotary Coatings Viscosity Meter Fluids Viscosity Analyzer

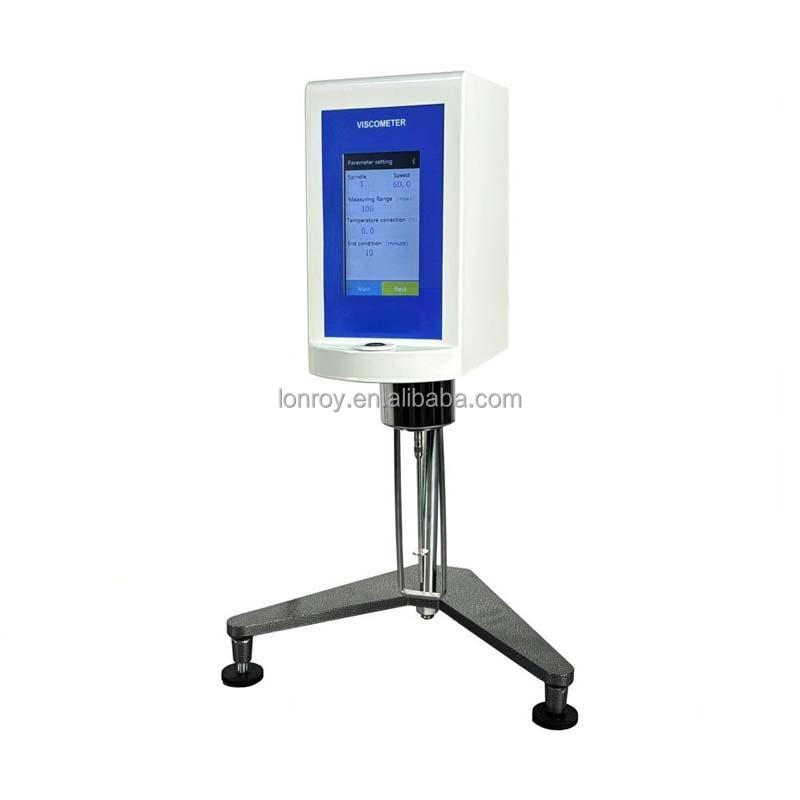

NDJ-5SE Touch Screen Viscometer

The upgraded touch screen rotary viscometer is an intelligent instrument based on microcontroller intelligent control, using a 4.3-inch high-definition IPA touch screen, high-performance ARM processor, imported stepper motor, and driver. The motor is driven by a torque sensor to rotate the rotor at a constant speed. When the rotor experiences viscous resistance in the measured liquid, the force is fed back to the sensor, and then processed and calculated by specialized software to display the viscosity of the measured liquid on the LCD screen. This instrument adopts ARM technology, with a simple and clear operating interface, intuitive readings, and rich display content. Each range is automatically calibrated by a computer, with high measurement accuracy, stable rotation speed, and strong anti-interference performance. It is an instrument used to measure the absolute viscosity of Newtonian liquids and the apparent viscosity of non Newtonian liquids. It is widely used for measuring the viscosity of various fluids such as solvent adhesives, latex, paint, coatings, cosmetics, inks, detergents, etc.

Standard:GB/T 2794,ISO 2884-2, 2555,ASTM D 2196

ISO 2884 ASTM D2196 Touch Screen Viscometer NDJ-5SE ISO 2555 Digital Rotary Coatings Viscosity Meter Fluids Viscosity Analyzer

Technical Parameter

Input voltage

110-240V AC 50/60Hz

Measuring range

10-100,000 mPa.s

Rotor specifications

1, 2, 3, 4

Rotor speed

6, 12, 30, 60 rpm

Display accuracy

±1%

Display page

Chinese and English system switching

External dimensions

260 * 160 * 110mm (excluding base)

Shipping weight

9KG (including base)

NDJ-5SE ISO 2884 Touch Screen Viscometer ISO 2555 ASTM D2196 Digital Rotary Coatings Viscosity Meter Fluids Viscosity AnalyzerNDJ-5SE ISO 2884 Touch Screen Viscometer ISO 2555 ASTM D2196 Digital Rotary Coatings Viscosity Meter Fluids Viscosity AnalyzerNDJ-5SE ISO 2884 Touch Screen Viscometer ISO 2555 ASTM D2196 Digital Rotary Coatings Viscosity Meter Fluids Viscosity Analyzer
