Low-temperature Fatigue Test Machine Cryogenic Tensile Repetitive Compression Life Device Subzero Bending Durability Tester
Low-temperature Fatigue Test Machine Cryogenic Tensile Repetitive Compression Life Device Subzero Bending Durability Tester
Low-temperature Fatigue Test Machine Cryogenic Tensile Repetitive Compression Life Device Subzero Bending Durability Tester
Low-temperature Fatigue Test Machine Cryogenic Tensile Repetitive Compression Life Device Subzero Bending Durability Tester
Low-temperature Fatigue Test Machine Cryogenic Tensile Repetitive Compression Life Device Subzero Bending Durability Tester
Low-temperature Fatigue Test Machine Cryogenic Tensile Repetitive Compression Life Device Subzero Bending Durability Tester
Low-temperature Fatigue Test Machine Cryogenic Tensile Repetitive Compression Life Device Subzero Bending Durability Tester
Low-temperature Fatigue Test Machine Cryogenic Tensile Repetitive Compression Life Device Subzero Bending Durability Tester
Low-temperature Fatigue Test Machine Cryogenic Tensile Repetitive Compression Life Device Subzero Bending Durability Tester
Low-temperature Fatigue Test Machine Cryogenic Tensile Repetitive Compression Life Device Subzero Bending Durability Tester
Low-temperature Fatigue Test Machine Cryogenic Tensile Repetitive Compression Life Device Subzero Bending Durability Tester
Low-temperature Fatigue Test Machine Cryogenic Tensile Repetitive Compression Life Device Subzero Bending Durability Tester
Specifications
Place of Origin :
Guangdong, China
power :
/
Type :
Low-temperature Fatigue Testing Machine
Protection Class :
/
Voltage :
220 V, Other
Accuracy Class :
High Accuracy
Accuracy :
/
customized support :
OEM, ODM, OBM
MOQ :
1
Brand Name :
LONROY
warranty :
1 Year
Description
Products Description
Low-temperature Fatigue Test Machine Cryogenic Tensile Repetitive Compression Life Device Subzero Bending Durability Tester

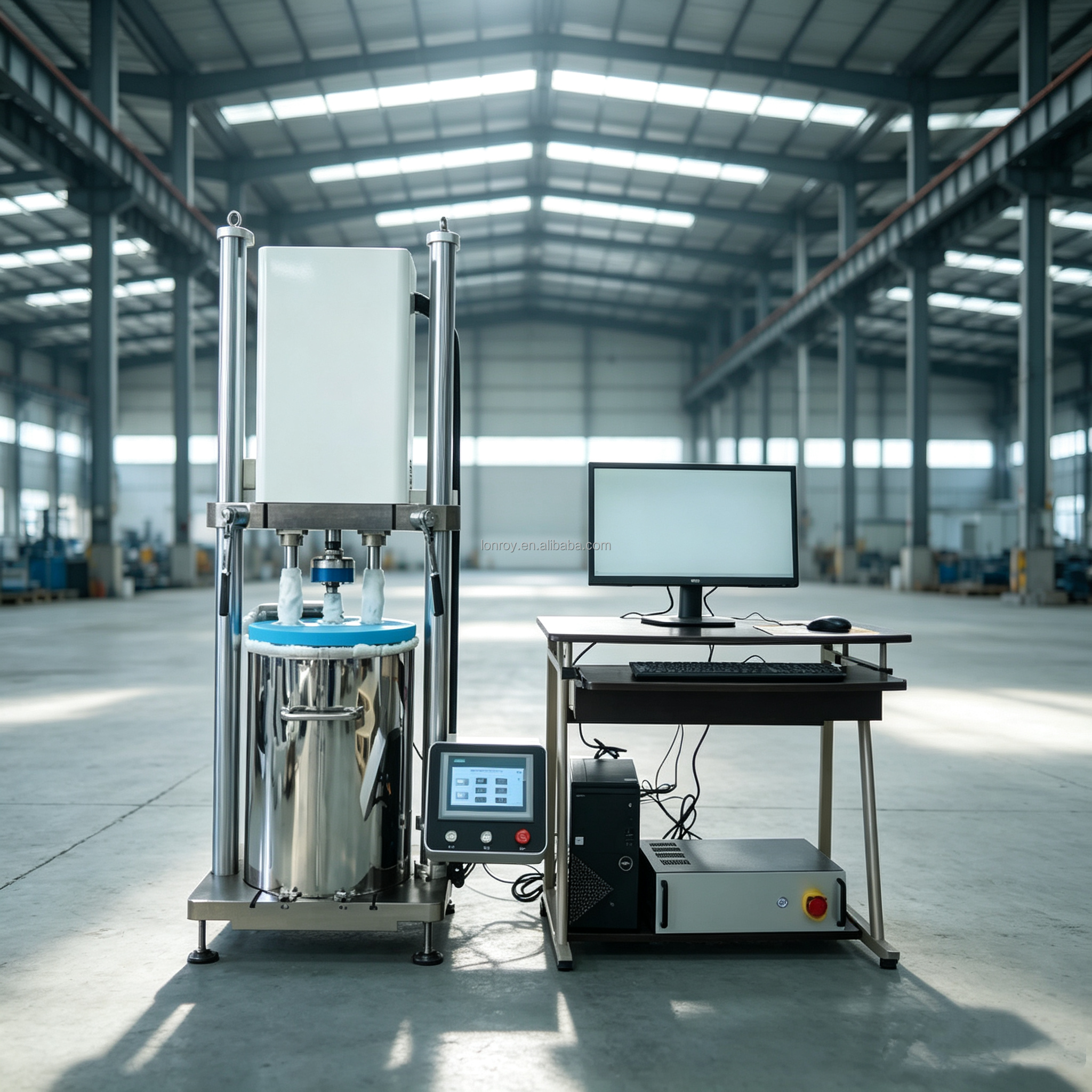

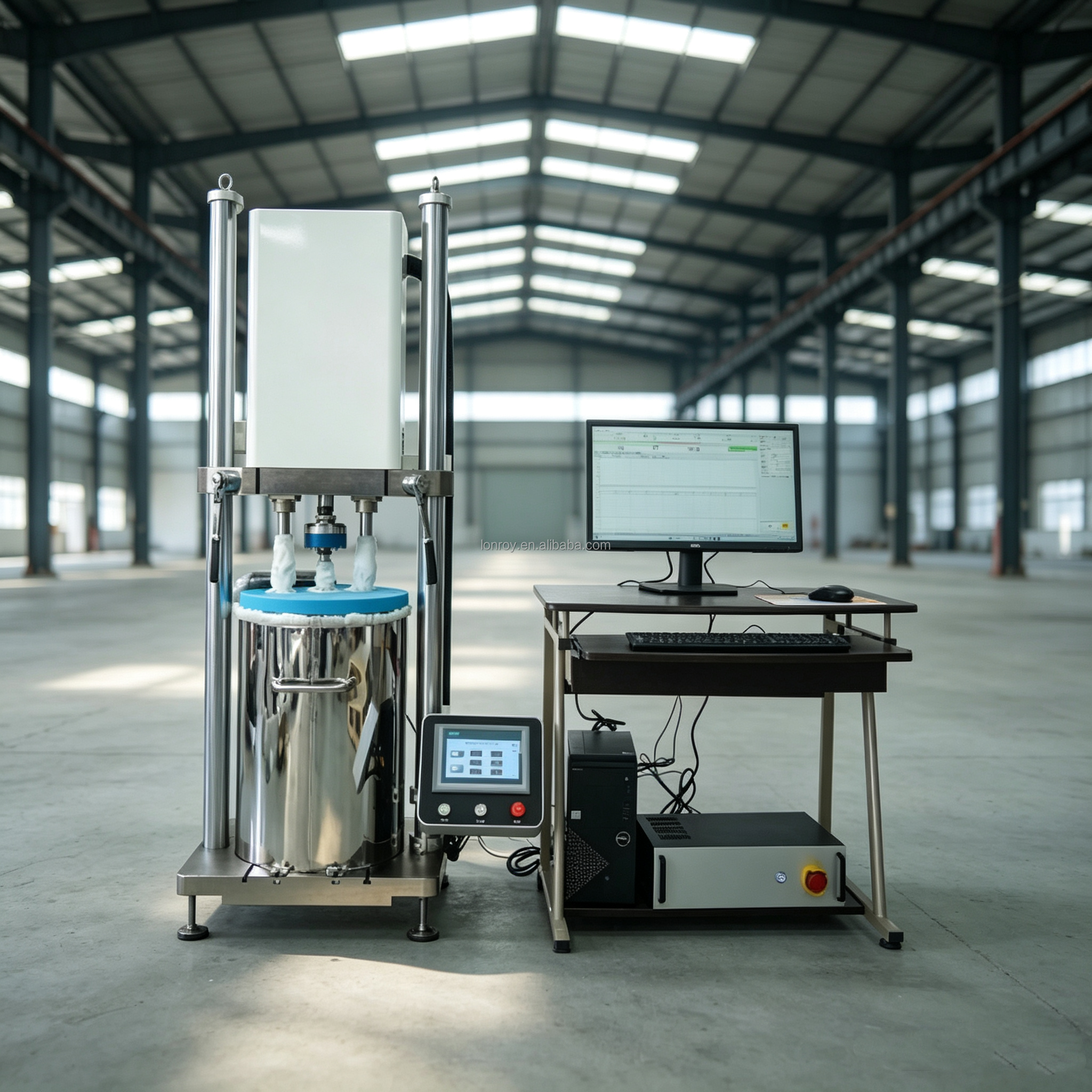

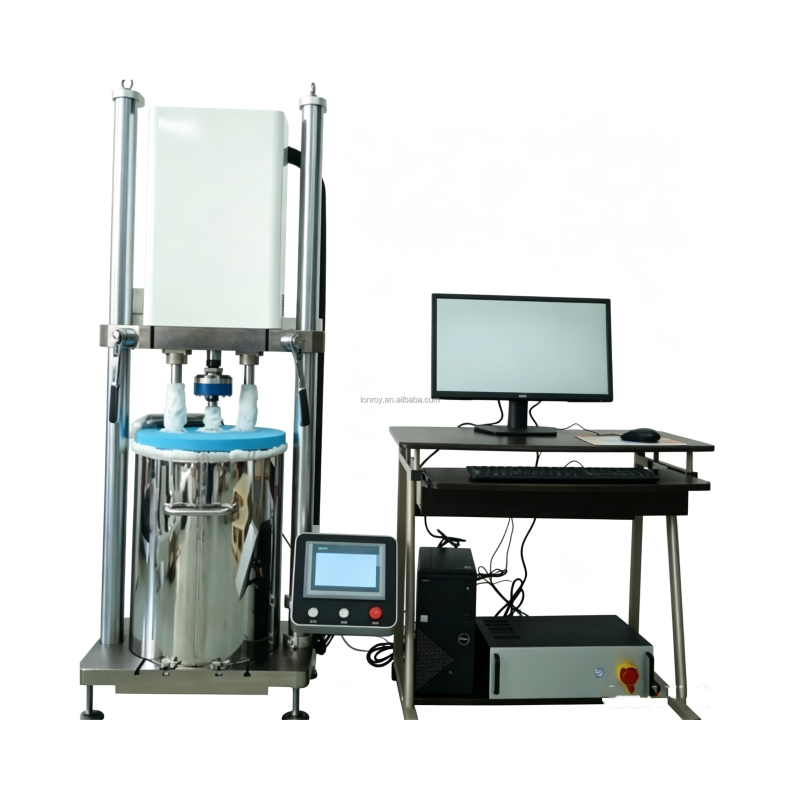

Equipment Overview The low-temperature fatigue testing machine creates a low-temperature environment to evaluate the dynamic and static mechanical properties of various materials—including metals, non-metals, and composites—as well as components such as power lithium battery terminals. It supports tensile, compressive, and bending tests, as well as dynamic/static stiffness and low-cycle fatigue tests, using waveforms such as sine, triangle, square, trapezoidal, and composite waves. Equipped with a temperature control system, it enables environmental simulation tests at specific temperatures. The KZS series dynamic and static universal testing machine is an ideal choice for dynamic testing across sectors including aerospace, aviation, transportation, and metallurgy, as well as in research institutes and educational institutions.

Low-temperature Fatigue Test Machine Cryogenic Tensile Repetitive Compression Life Device Subzero Bending Durability Tester
Low-temperature Fatigue Test Machine Cryogenic Tensile Repetitive Compression Life Device Subzero Bending Durability Tester
Low-temperature Fatigue Test Machine Cryogenic Tensile Repetitive Compression Life Device Subzero Bending Durability Tester
Low-temperature Fatigue Test Machine Cryogenic Tensile Repetitive Compression Life Device Subzero Bending Durability Tester
Low-temperature Fatigue Test Machine Cryogenic Tensile Repetitive Compression Life Device Subzero Bending Durability Tester
Specification
System Technical Specifications
No.
Item
Technical Specifications
1
System Stiffness
3.3 × 10⁸ N/m
2
Maximum Static Test Force
±2000 N
3
Maximum Dynamic Test Force
±2000 N
4
Test Force Indication Accuracy
±1% of the indicated value (within 2%–100% load range)
5
Dynamic Test Force Indication Fluctuation
±2%
6
Load Coaxiality
Better than 5%
7
Maximum Actuator Stroke
±75 mm
8
Available Test Waveforms
Sine wave, square wave, triangle wave, trapezoidal wave, sawtooth wave
9
Operating Frequency Range
0.01 ~ 10 Hz
10
Control System
TMC1000 Servo Controller
11
Overall Dimensions (L×W×H)
Approx. 800 × 450 × 1500 mm
12
Total Machine Weight
Approx. 400 kg
Low-temperature Fatigue Test Machine Cryogenic Tensile Repetitive Compression Life Device Subzero Bending Durability Tester
Amplitude-Frequency Characteristics Table
Frequency (Hz)
1
2
5
10
Max Amplitude (mm)
±100
±50
±20
±10
