GZY-II ASTM D5895 Linear Paint Drying Time Recorder ISO 9117 Linear Drying Time Tester Straight-line Film Drying Time Machine
GZY-II ASTM D5895 Linear Paint Drying Time Recorder ISO 9117 Linear Drying Time Tester Straight-line Film Drying Time Machine
GZY-II ASTM D5895 Linear Paint Drying Time Recorder ISO 9117 Linear Drying Time Tester Straight-line Film Drying Time Machine
GZY-II ASTM D5895 Linear Paint Drying Time Recorder ISO 9117 Linear Drying Time Tester Straight-line Film Drying Time Machine
GZY-II ASTM D5895 Linear Paint Drying Time Recorder ISO 9117 Linear Drying Time Tester Straight-line Film Drying Time Machine
GZY-II ASTM D5895 Linear Paint Drying Time Recorder ISO 9117 Linear Drying Time Tester Straight-line Film Drying Time Machine
GZY-II ASTM D5895 Linear Paint Drying Time Recorder ISO 9117 Linear Drying Time Tester Straight-line Film Drying Time Machine
GZY-II ASTM D5895 Linear Paint Drying Time Recorder ISO 9117 Linear Drying Time Tester Straight-line Film Drying Time Machine
GZY-II ASTM D5895 Linear Paint Drying Time Recorder ISO 9117 Linear Drying Time Tester Straight-line Film Drying Time Machine
GZY-II ASTM D5895 Linear Paint Drying Time Recorder ISO 9117 Linear Drying Time Tester Straight-line Film Drying Time Machine
GZY-II ASTM D5895 Linear Paint Drying Time Recorder ISO 9117 Linear Drying Time Tester Straight-line Film Drying Time Machine
GZY-II ASTM D5895 Linear Paint Drying Time Recorder ISO 9117 Linear Drying Time Tester Straight-line Film Drying Time Machine
Specifications
customized support :
OEM, ODM, OBM
warranty :
1 Year
power :
---
Brand Name :
LONROY
MOQ :
1
Price :
$903
Protection Class :
Ip56
Standard :
ISO 9117-4,ASTM D 5895
Type :
Testing Machine
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
Accuracy :
/
Voltage :
220 V, Other
Accuracy Class :
High Accuracy
Description

GZY-II ASTM D5895 Linear Paint Drying Time Recorder ISO 9117 Linear Drying Time Tester Straight-line Film Drying Time Machine

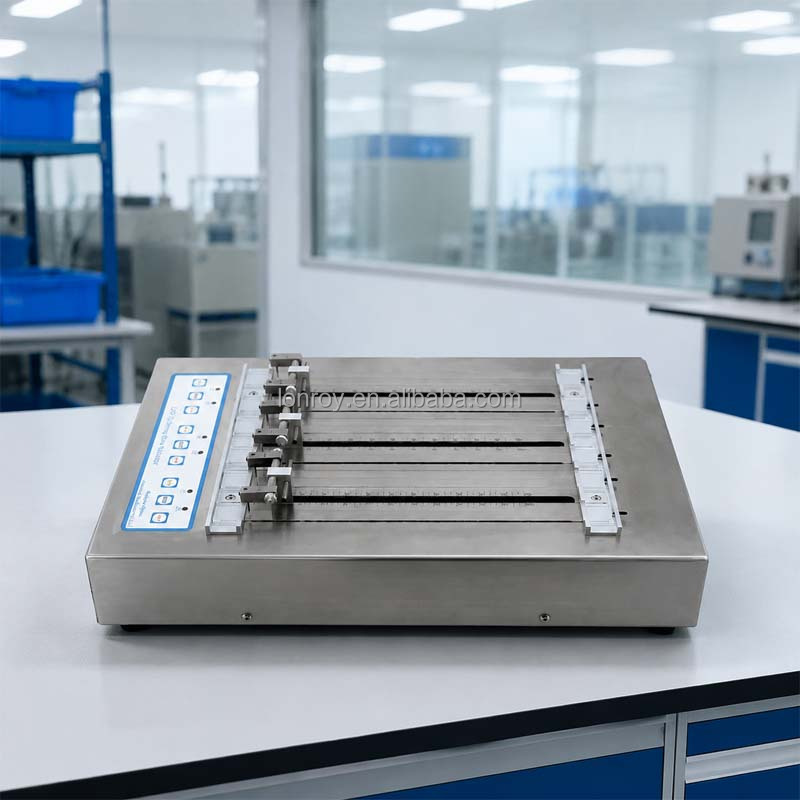

GZY-II Linear Drying Time Recorder

Six stroke rods with hemispherical contacts, installed on three independent sliding frames. Each channel can have its own set running time to test different samples separately. The rod is driven by a sliding frame and comes into contact with the new coating layer. Starting from one end, it moves longitudinally on the sample. The movement time can be measured by the scale on the edge of the channel, corresponding to the various drying stages of the observed trajectory. The coating is pre applied on glass strips with a width of 23mm and a length of 340mm, using a square preparer for coating. The principle of a drying time recorder is based on the mathematical formula: distance=velocity x time.

Standard

ISO 9117-4,ASTM D 5895

GZY-II ASTM D5895 Linear Paint Drying Time Recorder ISO 9117 Linear Drying Time Tester Straight-line Film Drying Time Machine

Technical Parameter

Input voltage

220V AC 50Hz

Motor power

60 W

Number of Needles Needled

6

Needle diameter

1 mm

Load weight

11 g

Moving distance

300 mm

Time setting

1h/6h, 2h/12h, 3h/24h

External dimensions

490×220×130 mm

Shipping weight

10 kg

Applicators and coating strips need to be purchased separately.
