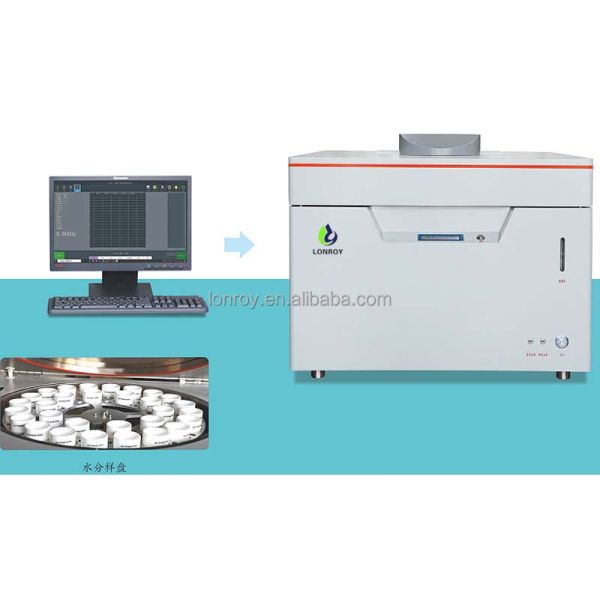

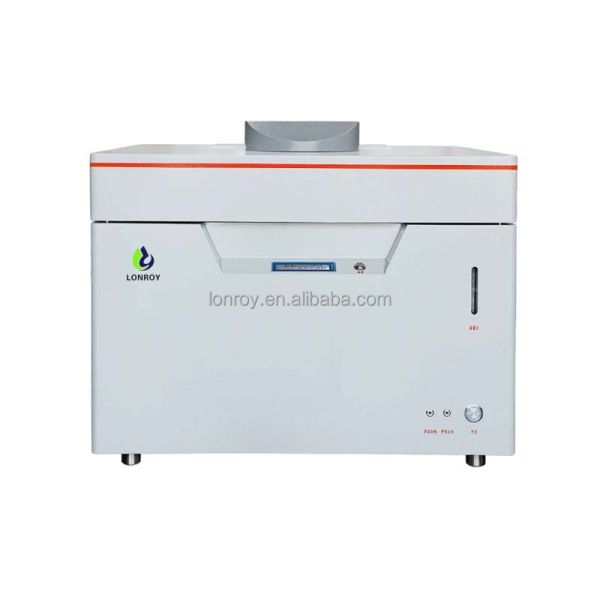

Air-dried Basis Moisture Tester Ore Coke Total Moisture Testing Machine Solid Fuels Moisture Test Device Coal Proximate Analyzer

Scope of Application

Suitable for measuring air-dried basis moisture and total moisture (in φ6 and φ3 samples) of coal, coke, ore, solid biomass fuels, etc.

Standards Compliance

GB/T 212 "Proximate analysis of coal"

GB/T 30732 "Proximate analysis of coal — Instrumental method"

GB/T 211 "Determination of total moisture in coal"

GB/T 483 "General rules for analytical and testing methods of coal"

Features

1. Utilizes an MCPC control module and display screen to monitor instrument status in real-time and save parameters; the test process runs independently without requiring a host computer, enabling offline operation and self-diagnostic alerts, which significantly enhances instrument reliability;

2. Employs a high-precision, rapid-rotation platform control mechanism for accurate positioning and fast sample weighing;

3. Features automatic sample weighing, automatic determination of moisture drying completion, and automatic calculation, storage, and printing of results; includes a built-in electronic balance for stable and reliable weighing;

4. Uses a PID temperature control algorithm to ensure higher temperature control precision;

5. Supports both nitrogen-purged drying and air drying methods;

6. Equipped with a power-loss memory function; test data is preserved in the event of an unexpected interruption, and the test can resume automatically upon power restoration;

7. Features an integrated top-and-bottom lid opening design that facilitates rapid heat dissipation, effectively shortening the interval between tests;

8. Utilizes an electric lid opening/closing mechanism, eliminating the need for manual intervention;

9. Supports "check drying" (verification drying) with customizable duration settings;

10. Complies with standard test durations and arbitration method requirements, making the results valid for legal arbitration;

Air-dried Basis Moisture Tester Ore Coke Total Moisture Testing Machine Solid Fuels Moisture Test Device Coal Proximate Analyzer

Technical Specification
