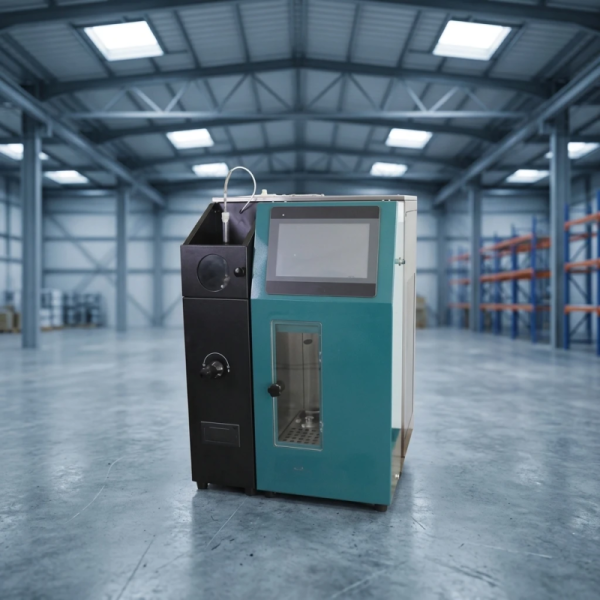

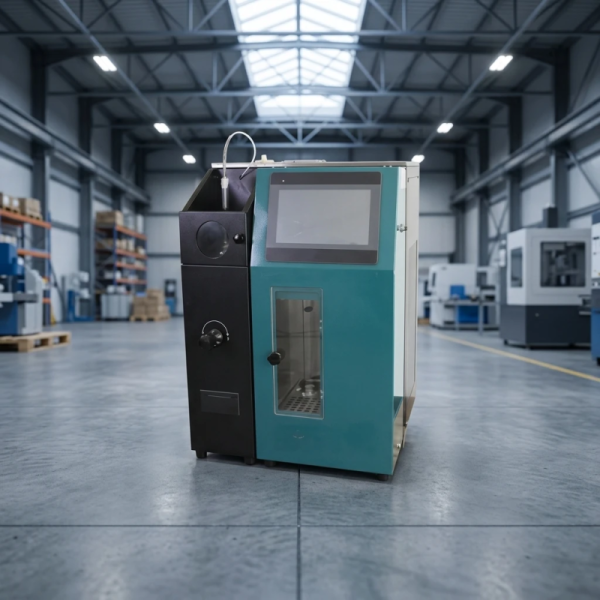

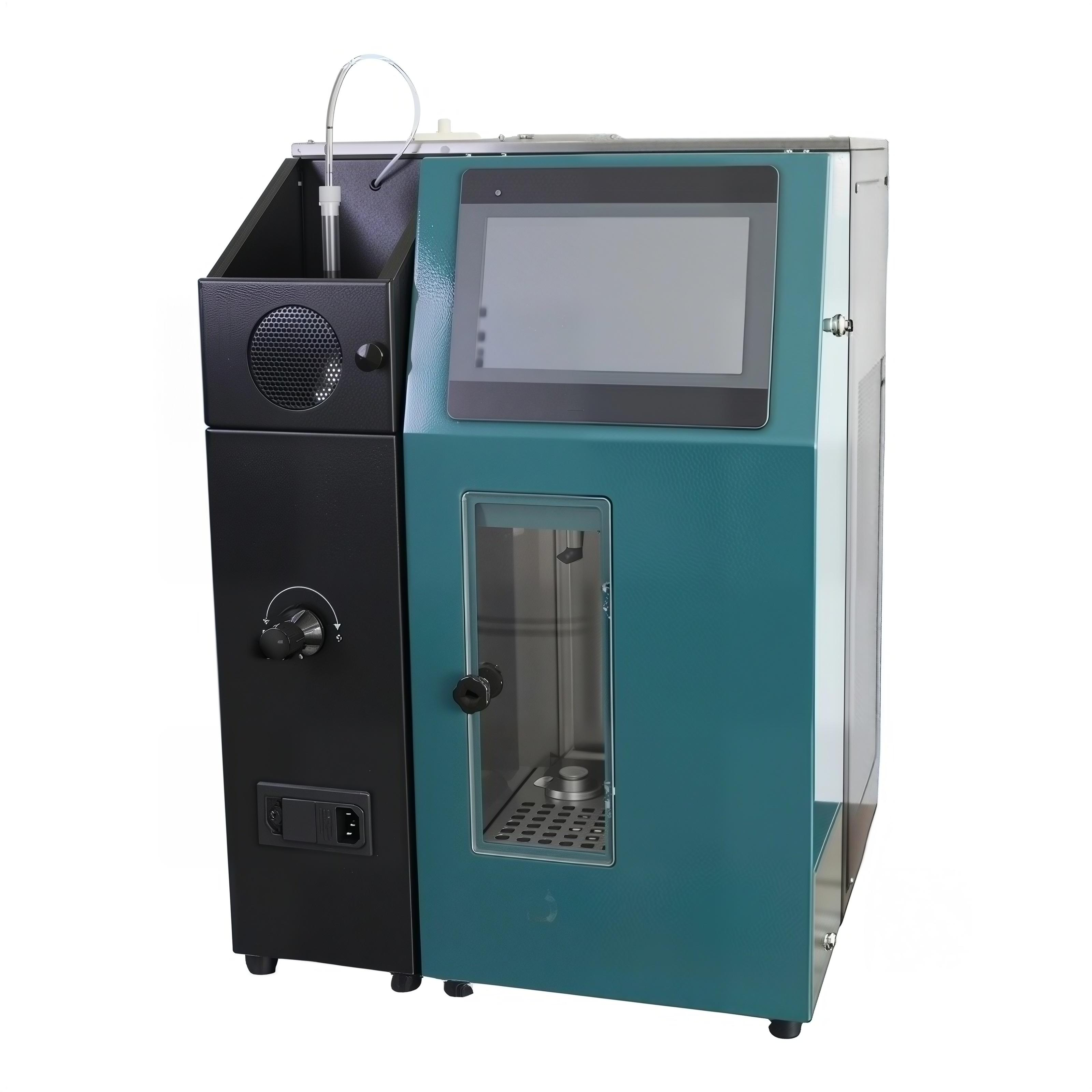

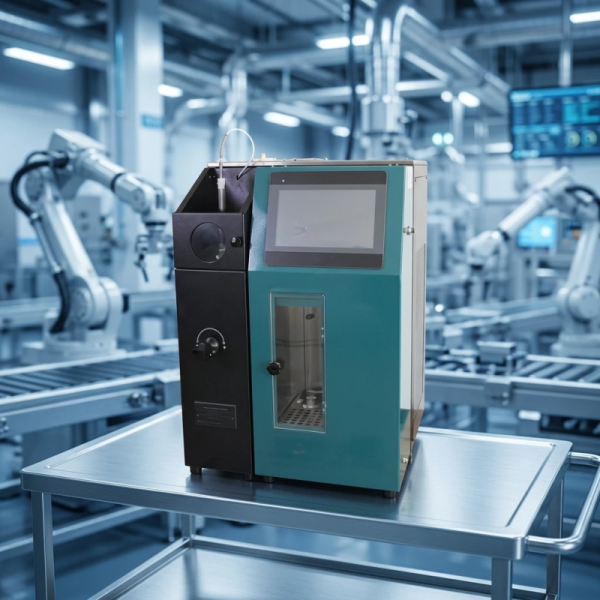

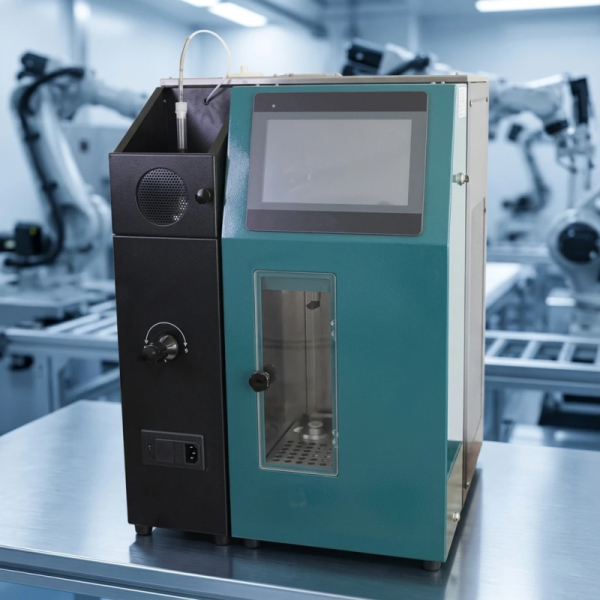

ASTM D86 ISO 3405 Fully Automatic Distillation Tester Automatic Petroleum Distillation Test Lab Atmospheric Distillation Tester
ASTM D86 ISO 3405 Fully Automatic Distillation Tester Automatic Petroleum Distillation Test Lab Atmospheric Distillation Tester
ASTM D86 ISO 3405 Fully Automatic Distillation Tester Automatic Petroleum Distillation Test Lab Atmospheric Distillation Tester
ASTM D86 ISO 3405 Fully Automatic Distillation Tester Automatic Petroleum Distillation Test Lab Atmospheric Distillation Tester
ASTM D86 ISO 3405 Fully Automatic Distillation Tester Automatic Petroleum Distillation Test Lab Atmospheric Distillation Tester
ASTM D86 ISO 3405 Fully Automatic Distillation Tester Automatic Petroleum Distillation Test Lab Atmospheric Distillation Tester
ASTM D86 ISO 3405 Fully Automatic Distillation Tester Automatic Petroleum Distillation Test Lab Atmospheric Distillation Tester
ASTM D86 ISO 3405 Fully Automatic Distillation Tester Automatic Petroleum Distillation Test Lab Atmospheric Distillation Tester
ASTM D86 ISO 3405 Fully Automatic Distillation Tester Automatic Petroleum Distillation Test Lab Atmospheric Distillation Tester
ASTM D86 ISO 3405 Fully Automatic Distillation Tester Automatic Petroleum Distillation Test Lab Atmospheric Distillation Tester
ASTM D86 ISO 3405 Fully Automatic Distillation Tester Automatic Petroleum Distillation Test Lab Atmospheric Distillation Tester
ASTM D86 ISO 3405 Fully Automatic Distillation Tester Automatic Petroleum Distillation Test Lab Atmospheric Distillation Tester
Specifications
Protection Class :
/
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Type :
Fully Automatic Distillation Tester
Voltage :
220 V, Other
customized support :
OEM, ODM, OBM
MOQ :
1
Accuracy :
/
Accuracy Class :
High Accuracy
power :
/
warranty :
1 Year
Description
Products Description
ASTM D86 ISO 3405 Fully Automatic Distillation Tester Automatic Petroleum Distillation Test Lab Atmospheric Distillation Tester

Instrument Overview The fully automatic distillation tester is designed and manufactured in accordance with national and international standards, including GB/T 6536 ("Standard Test Method for Distillation of Petroleum Products at Atmospheric Pressure"), ASTM D86, and ISO 3405. It is suitable for determining the distillation characteristics of natural gasoline (stabilized light hydrocarbons), automotive gasoline, aviation gasoline, jet fuel, special boiling-point solvents, naphtha, petroleum solvents, kerosene, diesel, gas oil, distillate fuel oils, and similar petroleum products. ASTM D86 ISO 3405 Fully Automatic Distillation Tester Automatic Petroleum Distillation Test Lab Atmospheric Distillation Tester Applicable Standards GB/T 6536, ASTM D86, ISO 3405 ASTM D86 ISO 3405 Fully Automatic Distillation Tester Automatic Petroleum Distillation Test Lab Atmospheric Distillation Tester Performance Features Automated control of the testing process; testing begins with a single-key operation after parameters are set. The entire process—including condenser bath cooling, distillation flask heating, Initial Boiling Point (IBP) detection, recovery volume level tracking, Final Boiling Point (FBP) detection, real-time distillation temperature recording, and the correction, calculation, storage, and printing of results—is performed automatically. The instrument stops automatically upon test completion. Equipped with a 10-inch high-definition color touchscreen LCD and a Chinese-language user interface for simple, intuitive operation. Features a built-in atmospheric pressure sensor for automatic pressure correction, ensuring test results remain unaffected by atmospheric pressure fluctuations. Heating power is automatically adjusted during the test. The liquid level tracker automatically returns to its initial position after the test concludes. Compressor-based refrigeration is used for the condenser tube cooling bath and the recovery chamber. Equipped with a flame detection system and an automatic fire-extinguishing function. Includes a function to input recovery sample volume compensation; displays and prints temperature values corresponding to recovery percentages in real-time. ASTM D86 ISO 3405 Fully Automatic Distillation Tester Automatic Petroleum Distillation Test Lab Atmospheric Distillation Tester
ASTM D86 ISO 3405 Fully Automatic Distillation Tester Automatic Petroleum Distillation Test Lab Atmospheric Distillation Tester
ASTM D86 ISO 3405 Fully Automatic Distillation Tester Automatic Petroleum Distillation Test Lab Atmospheric Distillation Tester
ASTM D86 ISO 3405 Fully Automatic Distillation Tester Automatic Petroleum Distillation Test Lab Atmospheric Distillation Tester
ASTM D86 ISO 3405 Fully Automatic Distillation Tester Automatic Petroleum Distillation Test Lab Atmospheric Distillation Tester
Specification
Technical Specifications
Power supply
AC 220V ±10%, 50Hz
Total power consumption
2000W
Temperature sensing element
Class A Pt100 platinum resistance temperature sensor
Temperature measurement range
0–400°C; Resolution: 0.1°C
Number of test samples
Single channel; Condenser: Single tube
Cooling bath temperature (compressor cooling)
0°C to +60°C; Measurement accuracy: 0.1°C
Display
10-inch color touchscreen LCD
Initial Boiling Point (IBP) detection method
10mm fiber-optic sensor
Liquid level tracking system
U-shaped slot fiber-optic through-beam detection for tracking liquid level changes
Distillation rate
4–5 mL/min (automatic adjustment)
Volume measurement range
0–100 mL; Resolution: 0.1 mL
Printing method
Thermal printer
Fire extinguishing method
Automatic nitrogen fire suppression
Dimensions
510 × 560 × 750 mm; Weight: 65 kg
Operating environment
Inside a fume hood
