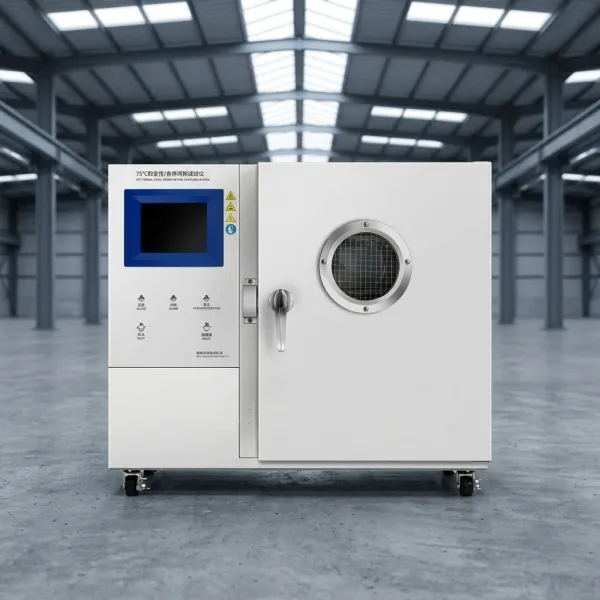

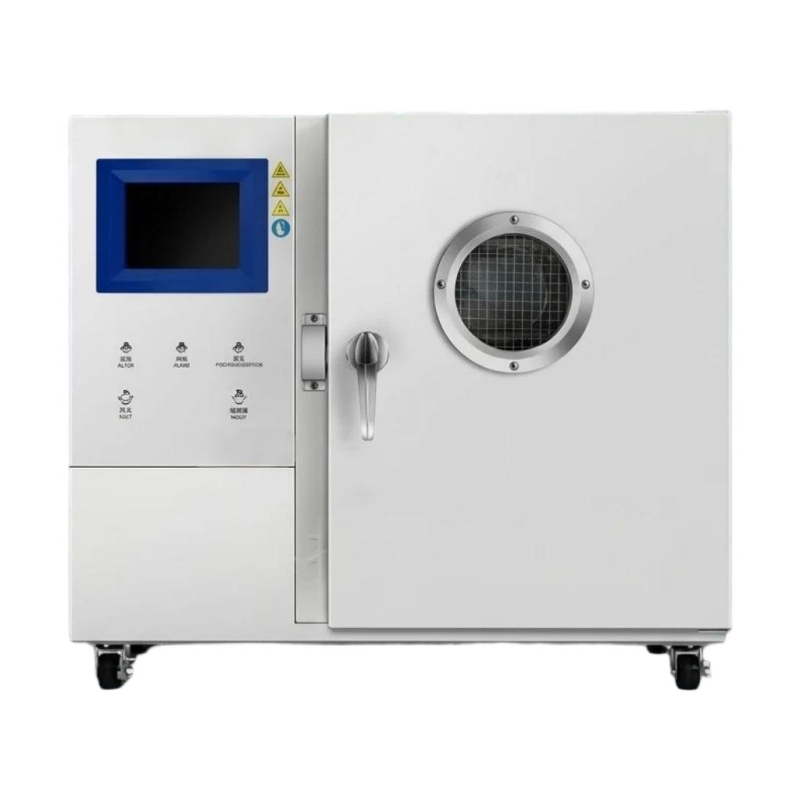

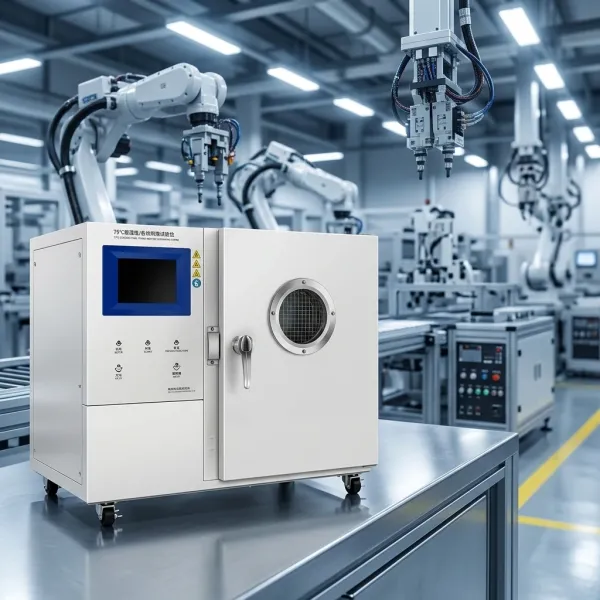

Oxidative Self-heating Identification Machine Self-heating Substance Tester Fully Automatic Self-Heating Solid Test Apparatus
Oxidative Self-heating Identification Machine Self-heating Substance Tester Fully Automatic Self-Heating Solid Test Apparatus
Oxidative Self-heating Identification Machine Self-heating Substance Tester Fully Automatic Self-Heating Solid Test Apparatus
Oxidative Self-heating Identification Machine Self-heating Substance Tester Fully Automatic Self-Heating Solid Test Apparatus
Oxidative Self-heating Identification Machine Self-heating Substance Tester Fully Automatic Self-Heating Solid Test Apparatus
Oxidative Self-heating Identification Machine Self-heating Substance Tester Fully Automatic Self-Heating Solid Test Apparatus
Oxidative Self-heating Identification Machine Self-heating Substance Tester Fully Automatic Self-Heating Solid Test Apparatus
Oxidative Self-heating Identification Machine Self-heating Substance Tester Fully Automatic Self-Heating Solid Test Apparatus
Oxidative Self-heating Identification Machine Self-heating Substance Tester Fully Automatic Self-Heating Solid Test Apparatus
Oxidative Self-heating Identification Machine Self-heating Substance Tester Fully Automatic Self-Heating Solid Test Apparatus
Oxidative Self-heating Identification Machine Self-heating Substance Tester Fully Automatic Self-Heating Solid Test Apparatus
Oxidative Self-heating Identification Machine Self-heating Substance Tester Fully Automatic Self-Heating Solid Test Apparatus
Specifications
power :
/
Accuracy Class :
High Accuracy
Accuracy :
/
Protection Class :
/
customized support :
OEM, ODM, OBM
Brand Name :
LONROY
MOQ :
1
Voltage :
220 V, Other
Place of Origin :
Guangdong, China
warranty :
1 Year
Type :
Testing Machine
Description
Products Description
Oxidative Self-heating Identification Machine Self-heating Substance Tester Fully Automatic Self-Heating Solid Test Apparatus

Brief Description The Self-Heating Substance Tester determines whether a substance undergoes oxidative self-heating by placing it in a cubic wire-mesh container (with side lengths of 25 mm or 100 mm) and exposing it to air at temperatures of 100°C, 120°C, or 140°C. It complies with Test N.4 (Test method for self-heating substances) as specified in Section 33.3.1.6 of the Recommendations on the Transport of Dangerous Goods: Manual of Tests and Criteria, as well as GB/T 21612, Dangerous goods—Test method for self-heating of flammable solids Oxidative Self-heating Identification Machine Self-heating Substance Tester Fully Automatic Self-Heating Solid Test Apparatus Scope of application and standards 1) This tester measures the internal temperature of 100℃, 120℃, Exposure to air at 140°C determines whether a substance will self-heat by oxidation. 2) Comply with 33.3.1.6 Test N.4 of "Recommendation on the Transport of Dangerous Goods·Manual of Tests and Criteria": Self-heating Test methods for substances and GB/T 21612 "Dangerous Goods - Test Methods for Self-Heating of Flammable Solids". Oxidative Self-heating Identification Machine Self-heating Substance Tester Fully Automatic Self-Heating Solid Test Apparatus Functional features 1) The self-heating material tester uses an embedded processor and Windows CE operating system; 2) 8-inch LCD touch screen, which can display test status in real time; 3) Built-in hot air circulation heating system to ensure uniformity and stability of heating; 4) The digital PID algorithm accurately controls the heating temperature with high temperature control accuracy; 5) The test report includes the judgment of packaging type; 6) Automatic detection of instrument faults and sound and light alarm functions to ensure safer testing; 7) The test options are diversified, and users can configure corresponding test parameters according to the characteristics of the sample to realize any adjustment of the test sequence; 8) The mesh cage has special specifications and can be customized; 9) Display running time and real-time temperature in real time, automatically draw test curves, and view original data; 10) The front of the equipment is equipped with an explosion-proof glass observation window, and the back is designed with a pressure relief door. The internal thrust is greater than 2.5 kgf. Open the pressure relief door to ensure safer testing; 11) The test process is fully automated, without manual intervention, and supports functions such as parameter setting, data storage, and report viewing. Oxidative Self-heating Identification Machine Self-heating Substance Tester Fully Automatic Self-Heating Solid Test Apparatus
Oxidative Self-heating Identification Machine Self-heating Substance Tester Fully Automatic Self-Heating Solid Test Apparatus
Oxidative Self-heating Identification Machine Self-heating Substance Tester Fully Automatic Self-Heating Solid Test Apparatus
Oxidative Self-heating Identification Machine Self-heating Substance Tester Fully Automatic Self-Heating Solid Test Apparatus
Oxidative Self-heating Identification Machine Self-heating Substance Tester Fully Automatic Self-Heating Solid Test Apparat
Specification
Technical indicators
No.
Technical Indicator Item
Specification Value
1
Working environment
5℃～30℃, <85%RH
2
Temperature control range
room temperature ~ 200℃
3
Temperature control accuracy
±1℃
4
Uniform temperature in the experimental area (below 140℃)
±1.5℃
5
Uniform temperature in the experimental area (140℃~180℃)
±2℃
6
Uniform temperature in the experimental area (180℃~200℃)
±2.5℃
7
Temperature measurement range
0～500℃
8
Temperature measurement resolution
0.1℃
9
Temperature measurement accuracy (below 300℃)
±2.5℃
10
Temperature measurement accuracy (above 300℃)
±(0.75% of reading)
11
Standard timing range
0～24h
12
Custom timing range
0～48h
13
Timing display resolution
1s
14
Cubic steel mesh container (small container)
side length 25mm, hole diameter 0.05mm
15
Small container cover
30mm×30mm×30mm
16
Cubic steel mesh container (large container)
side length 100mm, hole diameter 0.05mm
17
Large container cover
105mm×105mm×105mm
18
Cage size
150mm×150mm×250mm
19
Inner tank size
350mm×350mm×400mm
