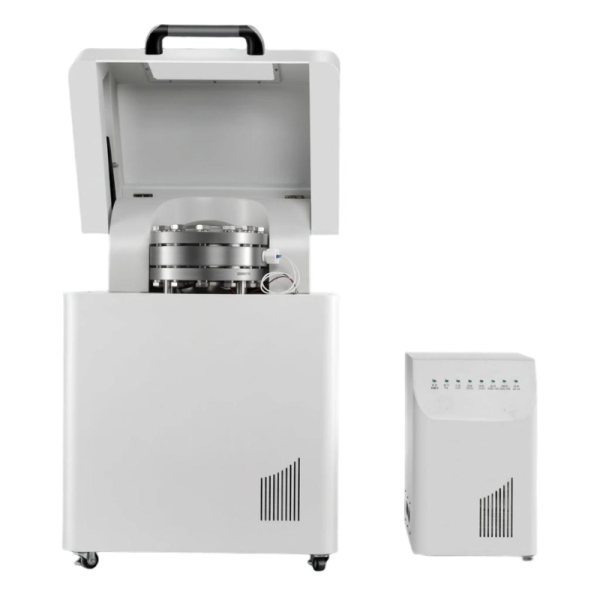

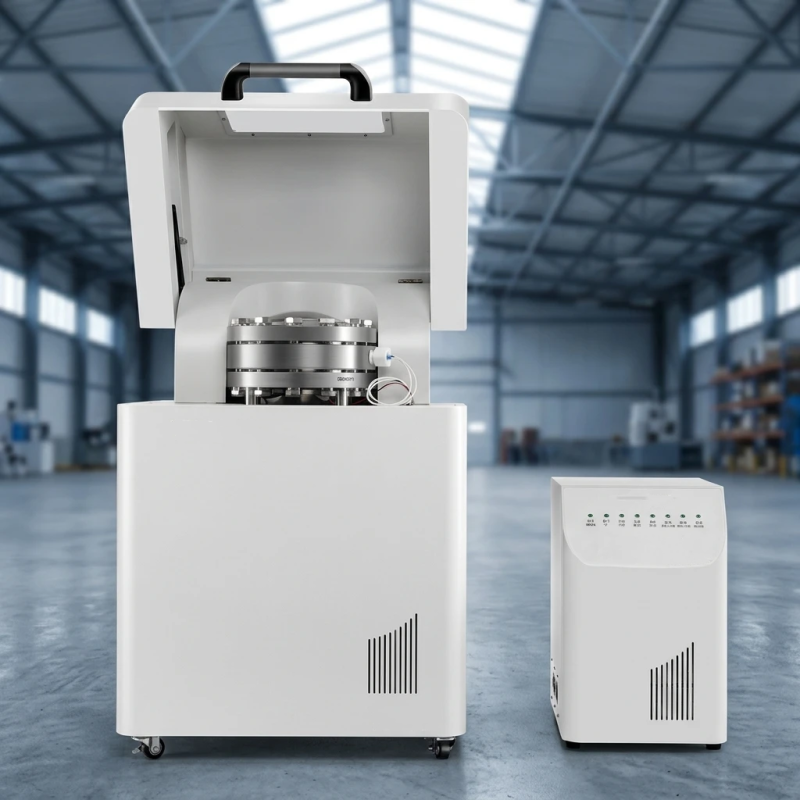

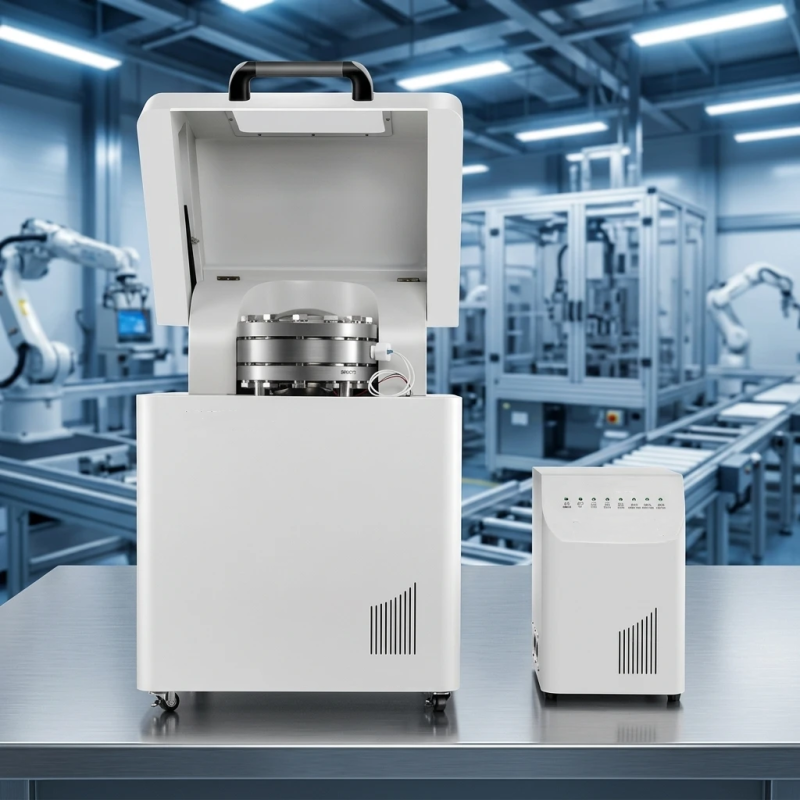

ISO 10156 Gas Oxidizing Property Tester Fully Automatic Gas Oxidation Test Apparatus Gas Mixture Oxidizing Capacity Test Machine
ISO 10156 Gas Oxidizing Property Tester Fully Automatic Gas Oxidation Test Apparatus Gas Mixture Oxidizing Capacity Test Machine
ISO 10156 Gas Oxidizing Property Tester Fully Automatic Gas Oxidation Test Apparatus Gas Mixture Oxidizing Capacity Test Machine
ISO 10156 Gas Oxidizing Property Tester Fully Automatic Gas Oxidation Test Apparatus Gas Mixture Oxidizing Capacity Test Machine
ISO 10156 Gas Oxidizing Property Tester Fully Automatic Gas Oxidation Test Apparatus Gas Mixture Oxidizing Capacity Test Machine
ISO 10156 Gas Oxidizing Property Tester Fully Automatic Gas Oxidation Test Apparatus Gas Mixture Oxidizing Capacity Test Machine
ISO 10156 Gas Oxidizing Property Tester Fully Automatic Gas Oxidation Test Apparatus Gas Mixture Oxidizing Capacity Test Machine
ISO 10156 Gas Oxidizing Property Tester Fully Automatic Gas Oxidation Test Apparatus Gas Mixture Oxidizing Capacity Test Machine
ISO 10156 Gas Oxidizing Property Tester Fully Automatic Gas Oxidation Test Apparatus Gas Mixture Oxidizing Capacity Test Machine
ISO 10156 Gas Oxidizing Property Tester Fully Automatic Gas Oxidation Test Apparatus Gas Mixture Oxidizing Capacity Test Machine
ISO 10156 Gas Oxidizing Property Tester Fully Automatic Gas Oxidation Test Apparatus Gas Mixture Oxidizing Capacity Test Machine
ISO 10156 Gas Oxidizing Property Tester Fully Automatic Gas Oxidation Test Apparatus Gas Mixture Oxidizing Capacity Test Machine
Specifications
Brand Name :
LONROY
Accuracy Class :
High Accuracy
Protection Class :
/
power :
/
Accuracy :
/
warranty :
1 Year
Type :
Testing Machine
Voltage :
220 V, Other
MOQ :
1
Place of Origin :
Guangdong, China
customized support :
OEM, ODM, OBM
Description
Products Description
ISO 10156 Gas Oxidizing Property Tester Fully Automatic Gas Oxidation Test Apparatus Gas Mixture Oxidizing Capacity Test Machine

Brief Description The gas oxidizer tester is used to determine whether the oxidizing ability of a gas or gas mixture exceeds that of air; it is suitable for testing toxic and corrosive gases or their mixtures. ISO 10156 Gas Oxidizing Property Tester Fully Automatic Gas Oxidation Test Apparatus Gas Mixture Oxidizing Capacity Test Machine Scope and Standards 1) This tester is designed to determine whether the oxidizing power of a gas or gas mixture exceeds that of air; it is suitable for testing toxic and corrosive gases or their mixtures. 2) Complies with ISO 10156:2010 "Gas cylinders — Gases and gas mixtures — Part 2: Determination of oxidizing ability of toxic and corrosive gases and gas mixtures" (specifically Clause 4: Oxidizing ability of gases and gas mixtures) and GB/T 27862-2011 "Test method for classification of dangerous chemicals — Flammability potential and oxidizing ability of gases and gas mixtures" (specifically Clause 4: Oxidizing ability of gases and gas mixtures). ISO 10156 Gas Oxidizing Property Tester Fully Automatic Gas Oxidation Test Apparatus Gas Mixture Oxidizing Capacity Test Machine Features of the Gas Oxidizing Ability Tester 1) Features a split-structure design separating the test unit from the control system, ensuring the safety of the control unit and operating personnel; 2) Includes PC control software to simplify instrument operation; 3) Supports remote ignition to ensure operator safety; 4) Offers customizable high-frequency igniters, with arc power and duration precisely controlled via PLC; 5) Utilizes high-precision, high-frequency-response pressure sensors (response time ≤2.5 ms, IP65 protection rating); combined with fast-response solenoid valves and an automatic gas-mixing algorithm, this enables precise gas mixture proportioning; 6) Equipped with high-precision pressure sensors for accurate measurement of explosion pressure and control of gas partial pressure ratios; 7) Equipped with a magnetic stirring device; 8) Features electronic microprocessor control for ignition timing; 9) Includes an automatic purging/cleaning function; 10) Features an automatic pressure relief device; upon test completion, automatic pressure relief can be selected to vent the pressure from the test vessel; 11) Incorporates multiple explosion-proof safety features to protect operators; 12) Includes fault detection and automatic audible/visual alarm functions; 13) Fully automated testing process requiring no manual intervention; supports parameter configuration, data storage, and report viewing; 14) Supports two ignition methods—remote control and instrument-based ignition—to ensure operator safety. ISO 10156 Gas Oxidizing Property Tester Fully Automatic Gas Oxidation Test Apparatus Gas Mixture Oxidizing Capacity Test Machine
ISO 10156 Gas Oxidizing Property Tester Fully Automatic Gas Oxidation Test Apparatus Gas Mixture Oxidizing Capacity Test Machine
ISO 10156 Gas Oxidizing Property Tester Fully Automatic Gas Oxidation Test Apparatus Gas Mixture Oxidizing Capacity Test Machine
ISO 10156 Gas Oxidizing Property Tester Fully Automatic Gas Oxidation Test Apparatus Gas Mixture Oxidizing Capacity Test Machine
ISO 10156 Gas Oxidizing Property Tester Fully Automatic Gas Oxidation Test Apparatus Gas Mixture Oxidizing Capacity Test Machine
Specification
Technical Parameters
Technical Specifications Item
Parameter Value
Operating environment
(-5 to 45)°C, <95% RH
Test vessel material
316L stainless steel
Pressure vessel pressure rating
≥5 MPa
Test vessel volume
≥5 L
Ultimate vacuum level
≤0.1 kPa
Leakage rate
≤0.01 kPa/min
Gas mixing sensor detection range
(0 to 200) kPa
Gas mixing sensor measurement accuracy
≤±0.1% FS
Test vessel accessory
Magnetic stirrer
Ignition system metal rod diameter
≥3 mm
Ni-Cr wire diameter
(0.05 to 0.2) mm
Ignition energy
(10 to 20) J
Explosion pressure sensor detection range
(0 to 5000) kPa
Explosion sensor pressure rating
≥10 MPa
Explosion sensor measurement accuracy
±0.1% FS
Explosion sensor response time
≤0.5 ms
Explosion temperature measurement range
(-50 to 350)°C
Explosion temperature measurement accuracy
≤±(0.15 + 0.002t)
Actual frequency response
≥2 kHz
Timing range & accuracy
0 to 24 h; accuracy: ±0.01 s
Stirring speed
≥300 rpm
Our Advantages
ISO 10156 Gas Oxidizing Property Tester Fully Automatic Gas Oxidation Test Apparatus Gas Mixture Oxidizing Capacity Test Machine
