ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test
ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test
ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test
ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test
ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test
ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test
ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test
ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test
ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test
ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test
ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test
ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test
Specifications
Accuracy Class :
High Accuracy
Brand Name :
LONROY
Type :
Measurement Crude Oil Water Content Tester
power :
/
warranty :
1 Year
MOQ :
1
Place of Origin :
Guangdong, China
Voltage :
220 V, Other
Accuracy :
/
customized support :
OEM, ODM, OBM
Protection Class :
/
Description
Products Description
ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test

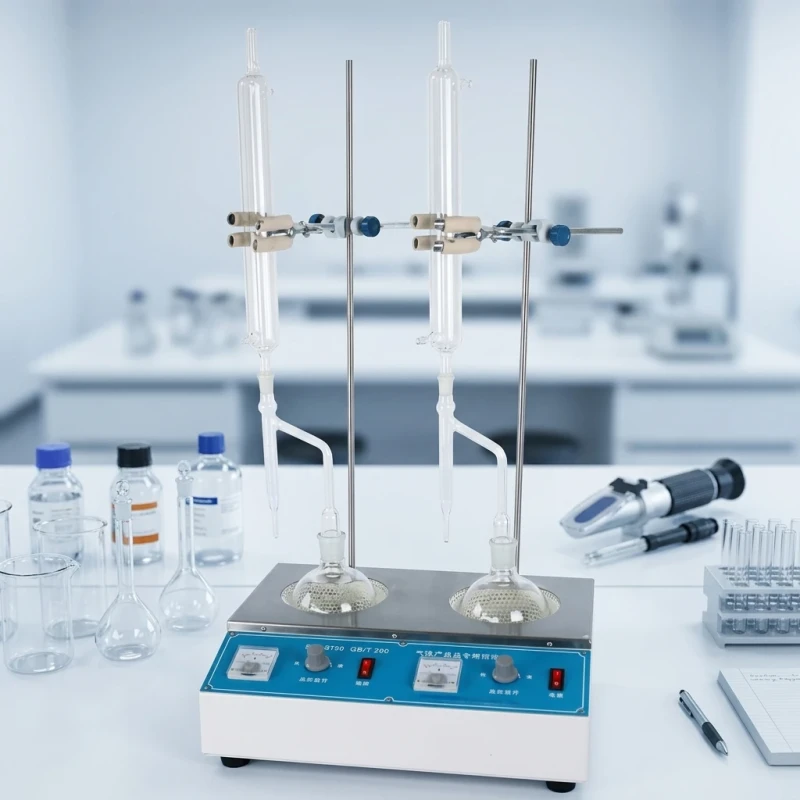

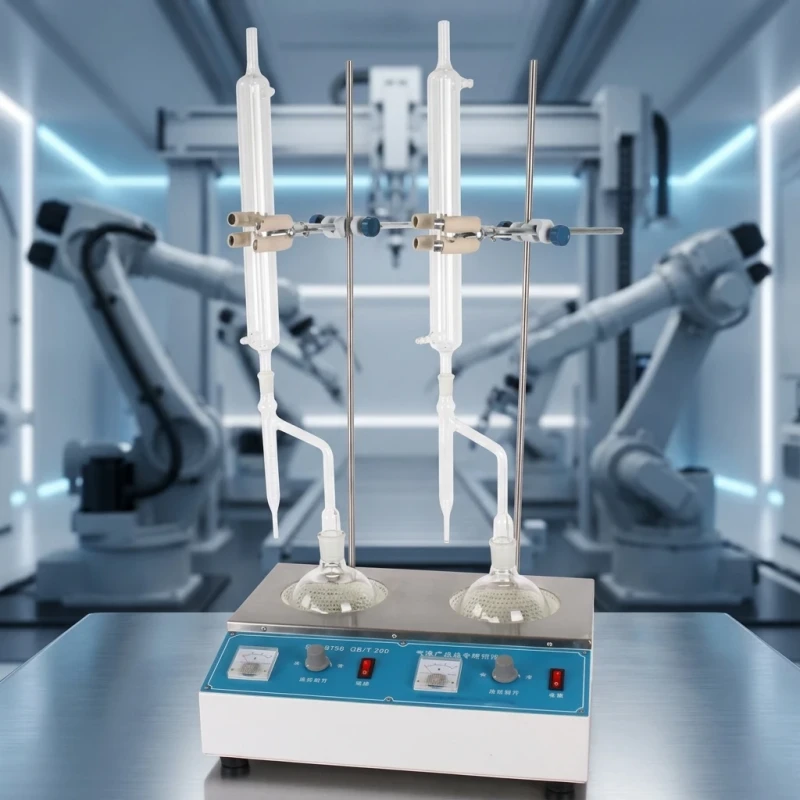

Instrument Overview This instrument is designed and manufactured specifically for determining the water content of crude oil in accordance with the national standard GB/T 8929-2006, "Crude Oil—Determination of Water Content—Distillation Method." It is suitable for measuring water content in crude oil using the distillation technique. ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test Principle Under reflux conditions, the sample is mixed with a water-immiscible solvent and heated; water within the sample is distilled off simultaneously. The condensed solvent and water separate continuously in the receiver. The water settles in the graduated tube of the receiver, while the solvent returns to the distillation flask. ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test Applicable Standards GB/T 8929-2006 "Crude Oil—Determination of Water Content—Distillation Method"; ASTM D4006 ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test Performance Features The instrument consists primarily of an electrical control unit and testing glassware (distillation flask, condenser, receiver, and drying tube). It features a dual-unit configuration with a clean, aesthetic design; it is highly practical and easy to operate. Each testing unit is regulated by an independent potentiometer, and a voltmeter displays the heating voltage. The heating system utilizes a fiberglass-woven heating mantle (flame-free electric heating) with sensitive temperature control. ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test
ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test
ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test
ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test
ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test
Specification
Technical Parameters
Technical Parameter Item
Specification
Power Supply
AC 220V ±10%, 50Hz
Voltage Regulation Mode
Stepless regulation via solid-state regulator
Heating Power
0–400W continuously adjustable (2 units)
Distillation Flask
1000mL capacity (2 units)
Receiver
5mL capacity (2 units); minimum scale division: 0.05mL
Condenser
Straight type, 400mm length (2 units)
Drying Tube
Approx. 125mm length (2 units)
Overall Dimensions
520 × 290 × 700 mm
Unit Weight
Approx. 8 kg
