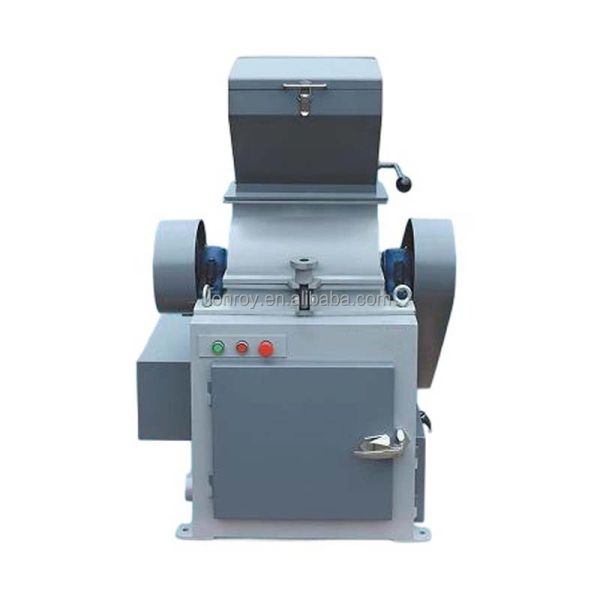

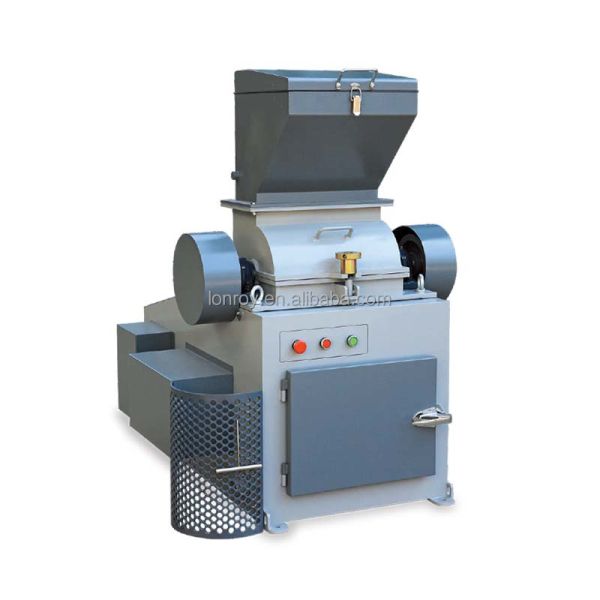

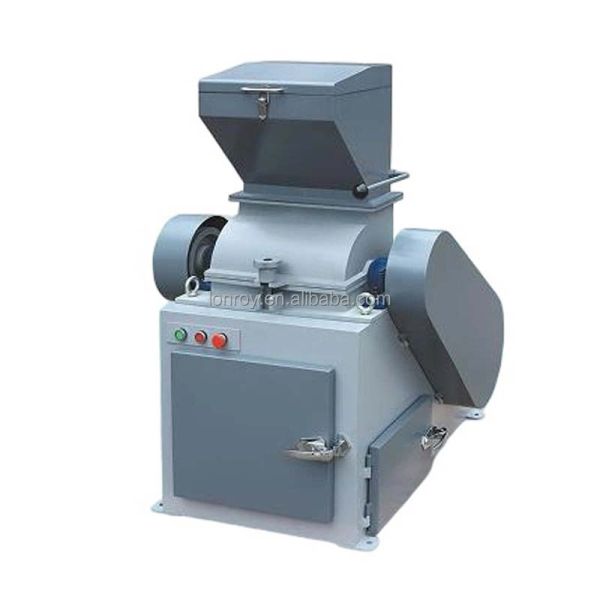

Coal Sample Hammer Crusher Splitter Hammer Type Crushing Dividing Machine for Coal Analysis Coal Precision Bias test Equipment
Coal Sample Hammer Crusher Splitter Hammer Type Crushing Dividing Machine for Coal Analysis Coal Precision Bias test Equipment
Coal Sample Hammer Crusher Splitter Hammer Type Crushing Dividing Machine for Coal Analysis Coal Precision Bias test Equipment
Coal Sample Hammer Crusher Splitter Hammer Type Crushing Dividing Machine for Coal Analysis Coal Precision Bias test Equipment
Coal Sample Hammer Crusher Splitter Hammer Type Crushing Dividing Machine for Coal Analysis Coal Precision Bias test Equipment
Coal Sample Hammer Crusher Splitter Hammer Type Crushing Dividing Machine for Coal Analysis Coal Precision Bias test Equipment
Coal Sample Hammer Crusher Splitter Hammer Type Crushing Dividing Machine for Coal Analysis Coal Precision Bias test Equipment
Coal Sample Hammer Crusher Splitter Hammer Type Crushing Dividing Machine for Coal Analysis Coal Precision Bias test Equipment
Coal Sample Hammer Crusher Splitter Hammer Type Crushing Dividing Machine for Coal Analysis Coal Precision Bias test Equipment
Coal Sample Hammer Crusher Splitter Hammer Type Crushing Dividing Machine for Coal Analysis Coal Precision Bias test Equipment
Coal Sample Hammer Crusher Splitter Hammer Type Crushing Dividing Machine for Coal Analysis Coal Precision Bias test Equipment
Coal Sample Hammer Crusher Splitter Hammer Type Crushing Dividing Machine for Coal Analysis Coal Precision Bias test Equipment
Specifications
Protection Class :
Ip56
Application :
Auto Testing
power :
---
Voltage :
220 V
Place of Origin :
Guangdong, China
Weight :
281KG
Accuracy Class :
High Accuracy
Accuracy :
/
Type :
Testing Machine
customized support :
OEM, ODM, OBM
warranty :
1 Year
Brand Name :
LONROY
MOQ :
1
Description

Coal Sample Hammer Crusher Splitter Hammer Type Crushing Dividing Machine for Coal Analysis Coal Precision Bias test Equipment

Standards Compliance

GB 474 Method for preparation of coal samples

GB/T 211 Method for determination of total moisture in coal

GB/T 19494.2 Mechanical sampling of coal — Part 2: Preparation of coal samples

GB/T 19494.3 Mechanical sampling of coal — Part 3: Determination of precision and bias testing

Technical Features

1. The unit features a fully sealed design, preventing dust pollution and meeting environmental protection standards;

2. The crushing chamber is constructed from welded steel, eliminating the cracking issues associated with traditional cast components;

3. Wear-resistant sickle-shaped hammers ensure comprehensive material crushing, resulting in uniform output particle size and preventing chamber clogging or sample retention in dead zones;

4. High crushing ratio and efficient sample preparation;

5. Convenient adjustment of the sample splitting ratio;

6. High-strength screen plate that resists deformation and allows for easy replacement;

7. Suitable for samples with high moisture content; the system does not clog and prevents moisture loss during processing.

Coal Sample Hammer Crusher Splitter Hammer Type Crushing Dividing Machine for Coal Analysis Coal Precision Bias test Equipment

Technical Specification

Rotor Diameter (mm)

250

Rotor Length (mm)

360

Feed Size (mm)

≤150

Discharge Particle Size (mm)

≤3, ≤6, ≤13

Allowable Total Moisture

≤12%

Splitting Ratio

Adjustable from 1/32 ~ 1/2

Capacity (kg/h)

1200 ~ 1800

Main Shaft Speed (r/min)

940

Motor Power (kW)

4

Power Supply Voltage (V)

3-phase 380

Hammer Material

NM500

Overall Dimensions (mm)

1070 × 860 × 1200

Total Machine Weight (kg)

281

Coal Sample Hammer Crusher Splitter Hammer Type Crushing Dividing Machine for Coal Analysis Coal Precision Bias test EquipmentCoal Sample Hammer Crusher Splitter Hammer Type Crushing Dividing Machine for Coal Analysis Coal Precision Bias test EquipmentCoal Sample Hammer Crusher Splitter Hammer Type Crushing Dividing Machine for Coal Analysis Coal Precision Bias test EquipmentCoal Sample Hammer Crusher Splitter Hammer Type Crushing Dividing Machine for Coal Analysis Coal Precision Bias test Equipment
