BS 812 Aggregate Impact Value Tester AIV Test Device Aggregate Impact Value Apparatus Comprehensive Impact Value Testing Machine
BS 812 Aggregate Impact Value Tester AIV Test Device Aggregate Impact Value Apparatus Comprehensive Impact Value Testing Machine
BS 812 Aggregate Impact Value Tester AIV Test Device Aggregate Impact Value Apparatus Comprehensive Impact Value Testing Machine
BS 812 Aggregate Impact Value Tester AIV Test Device Aggregate Impact Value Apparatus Comprehensive Impact Value Testing Machine
BS 812 Aggregate Impact Value Tester AIV Test Device Aggregate Impact Value Apparatus Comprehensive Impact Value Testing Machine
BS 812 Aggregate Impact Value Tester AIV Test Device Aggregate Impact Value Apparatus Comprehensive Impact Value Testing Machine
BS 812 Aggregate Impact Value Tester AIV Test Device Aggregate Impact Value Apparatus Comprehensive Impact Value Testing Machine
BS 812 Aggregate Impact Value Tester AIV Test Device Aggregate Impact Value Apparatus Comprehensive Impact Value Testing Machine
BS 812 Aggregate Impact Value Tester AIV Test Device Aggregate Impact Value Apparatus Comprehensive Impact Value Testing Machine
BS 812 Aggregate Impact Value Tester AIV Test Device Aggregate Impact Value Apparatus Comprehensive Impact Value Testing Machine
BS 812 Aggregate Impact Value Tester AIV Test Device Aggregate Impact Value Apparatus Comprehensive Impact Value Testing Machine
BS 812 Aggregate Impact Value Tester AIV Test Device Aggregate Impact Value Apparatus Comprehensive Impact Value Testing Machine
Specifications
power :
---
Brand Name :
LONROY
warranty :
1 Year
Accuracy :
/
Protection Class :
Ip56
Voltage :
220 V
MOQ :
1
Application :
Auto Testing
Type :
Testing Machine
Price :
$320
Impact hammer drop height :
380 ± 5mm
Accuracy Class :
High Accuracy
Place of Origin :
Guangdong, China
customized support :
OEM, ODM, OBM
Description

BS 812 Aggregate Impact Value Tester AIV Test Device Aggregate Impact Value Apparatus Comprehensive Impact Value Testing Machine

Standards

BS 812 NF P18-574

Description

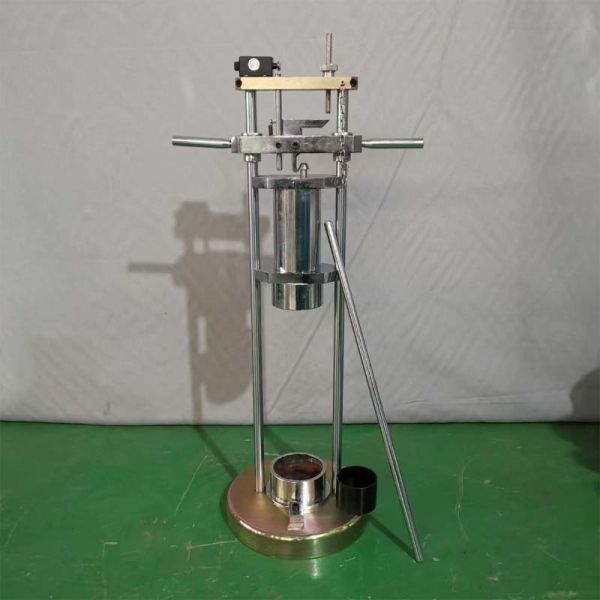

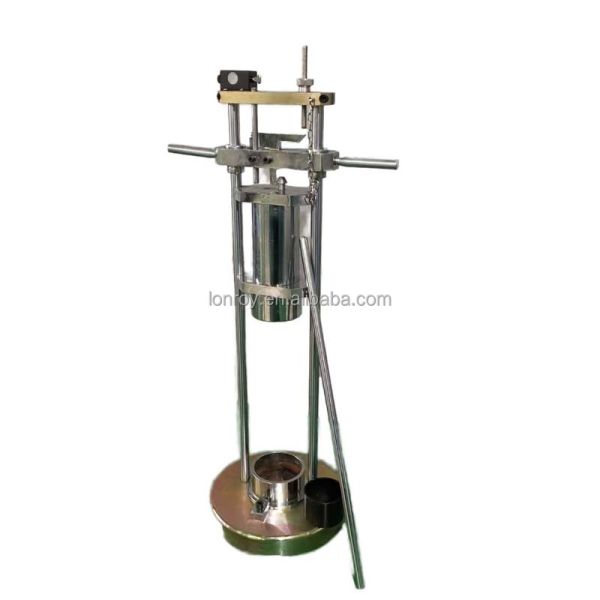

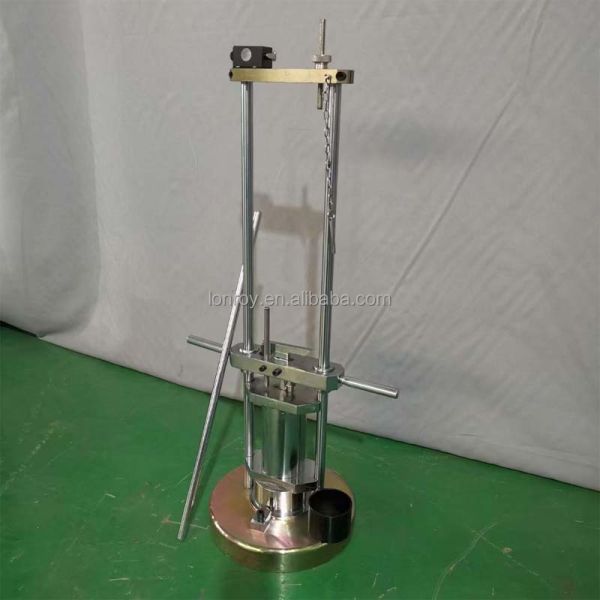

This machine is used to deter-mine the aggregate impact value(AIV) which provides a relative measure of the resistance of an aggregate to sudden shock or impact. The machine is robustly designed and made from corrosion- resistant steel. It is fitted with a counter to check the number of blows delivered to the sample and comes complete with two cylindrical measures (BS and NF) and a tamping rod.

BS 812 Aggregate Impact Value Tester AIV Test Device Aggregate Impact Value Apparatus Comprehensive Impact Value Testing Machine

Technical Specification

Measuring cylinder

inner diameter 76mm, inner height 51mm

A circular steel cylinder

with an inner diameter of 102mm

a wall thickness

of 3mm

The steel rod has a diameter

of 16mm

Impact hammer weight

13.75Kg+0.05Kg, lower cylinder diameter 100mm,

Impact hammer drop height

380 ± 5mm

BS 812 Aggregate Impact Value Tester AIV Test Device Aggregate Impact Value Apparatus Comprehensive Impact Value Testing MachineBS 812 Aggregate Impact Value Tester AIV Test Device Aggregate Impact Value Apparatus Comprehensive Impact Value Testing MachineBS 812 Aggregate Impact Value Tester AIV Test Device Aggregate Impact Value Apparatus Comprehensive Impact Value Testing MachineBS 812 Aggregate Impact Value Tester AIV Test Device Aggregate Impact Value Apparatus Comprehensive Impact Value Testing Machine
