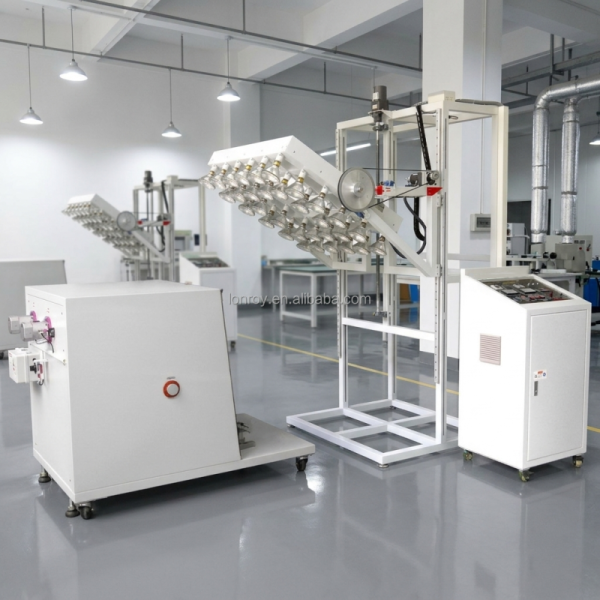

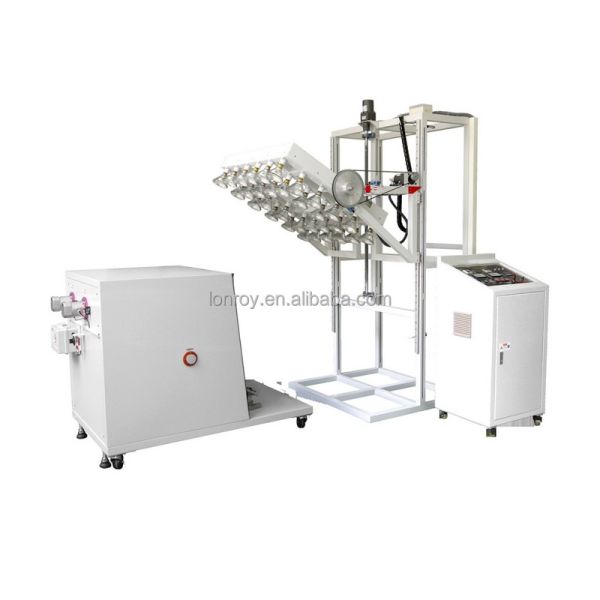

Irradiation Heat Resistance Tester Radiation Thermal Resistant Testing Machine Environment test Equipment Heating Aging Tester

1. Equipment Basic Technical Specifications

1.6 Test Procedure for Irradiated Sample

1.6.1 Mount the lamp in its actual vehicle-mounted condition onto the fixture. Remove the back cover of the bulb holder, the bulb, and the bulb holder itself to allow easy air convection within the laboratory environment.

1.6.2 Adjust temperature and humidity according to the following conditions:

1.6.3 Secure the components using the specified minimum tightening torque.

A: Dry condition at 80±2°C, 10% RH for 2 hours

B: Ambient temperature and humidity for 1 hour

C: 38°C, 70% RH for 1.5 hours

After adjustment, assemble the lamp in an environment maintained at 10°C ambient temperature, then install the lamp for irradiation as described below.

1.6.4 Rotate the test sample 20 degrees every 30 minutes in the direction shown in the figure above, totaling 120 minutes of irradiation, with the surface temperature of the test specimen maintained at 80°C.

1.6.5 Equipped with automatic rotation testing function

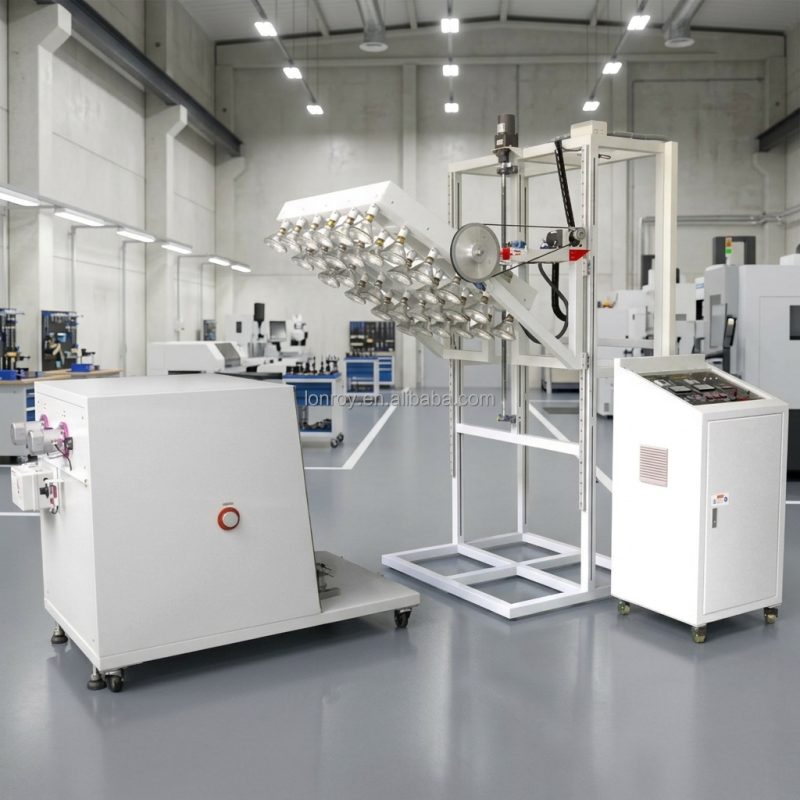

Irradiation Heat Resistance Tester Radiation Thermal Resistant Testing Machine Environment test Equipment Heating Aging Tester

Materials

2.1 The irradiation frame is constructed of 75x75mm aluminum extrusion, anodized.

2.2 One set of angle adjustment device for the irradiation frame (including angle gauge).

2.3 Thirty-two original imported high-temperature resistant lamp holders.

The outer shell of the irradiation chamber is made of 1.2mm steel plate with light-colored paint.

The outer shell of the control box is made of 1.2mm steel plate with light-colored paint.

2.4 One set of angle adjustment device for the lighting fixture (including angle gauge).

2.5 One set of digital black globe temperature controller.

(One standard black panel made of 2mm thick SUS#304 stainless steel sheet with black coating; range 0.0–120.0°C, PT 100Ω TB–700)

Radiant heat generator with light control (one thyristor controller), ensuring uninterrupted radiant heat.

2.6 Time control: 0–9990 hours.

2.7 Test rack made of SUS#304 stainless steel plate, conforming to CNS8499.

2.8 Temperature air supply chamber: SUS#304 multi-blade fan, temperature range: RT–80°C.

2.9 One set of irradiance meter: 0–2000 W/m².

2.10 One DC voltage meter, European-style analog type, 0–20.0V. (SAINT WIEN TYPE – PA – H2 )

2.11. Cumulative timer 0-9999.9 hours, one set.

2.12. Timer, one set. ANCY – AFR

2.13. One set of special fixture and canvas cover for lamp housing.

2.14 Calibration time: The light source should be replaced after 2,000 hours of operation.

2.15 Standard equipment: Includes detailed user manual and operator instruction guide.
