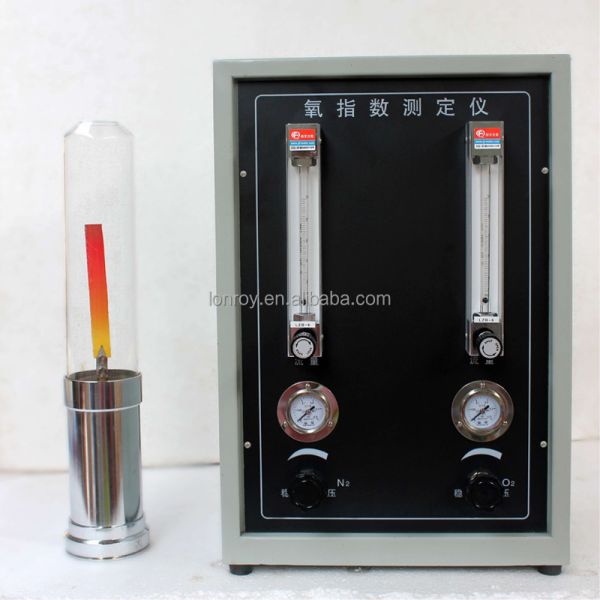

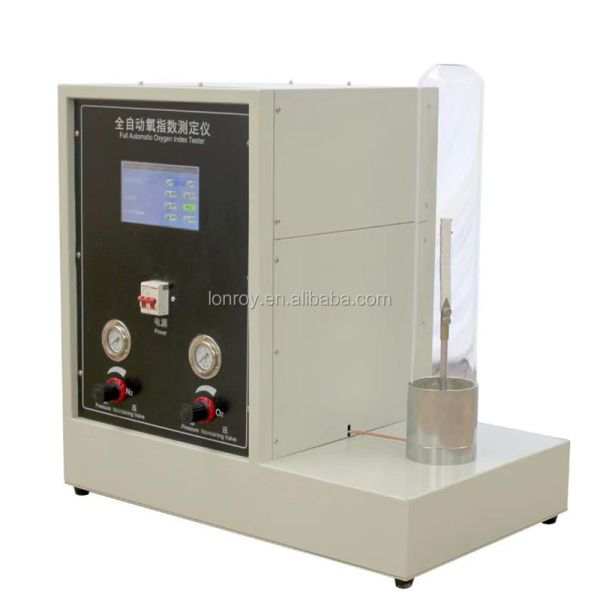

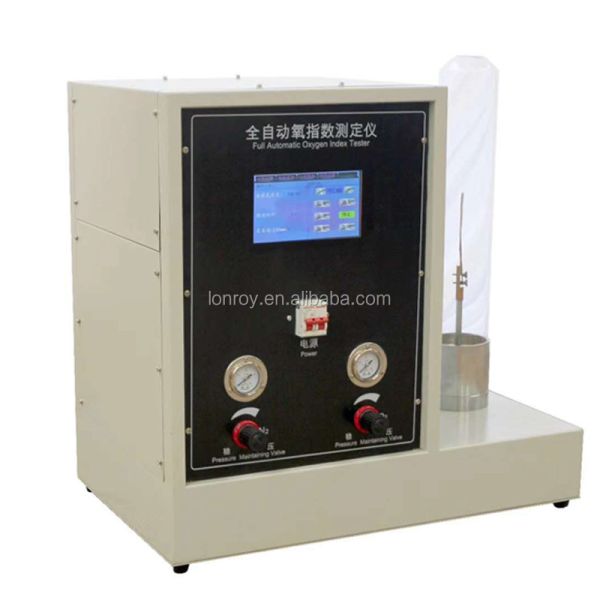

LR-A029 ISO4589-2 ASTM D2863 Oxygen Index Tester

Product advantages:

1. Full-color touch screen control: as long as the oxygen concentration value is set on the touch screen, the program will automatically adjust to the oxygen concentration balance and give a sound hint of the di, avoiding the trouble of manually adjusting the oxygen concentration;

2. The step ratio valve is adopted to greatly improve the flow control accuracy, and the closed-loop control is adopted. During the test, the oxygen concentration drift program is automatically adjusted back to the target value, which avoids the disadvantages of the traditional oxygen index tester that cannot adjust the oxygen concentration in the test and greatly improves the test accuracy.

1. Imported oxygen sensor is adopted to display the oxygen concentration without calculation, with higher accuracy and more accuracy, and the range is 0-100%

2. Digital resolution: plus or minus 0.1%

3. Measurement accuracy: 0.1 level

4. Set the touch screen program to adjust the oxygen concentration automatically

5. Precision of one-button calibration

6. One bond concentration

7. Automatic alarm sound with stable oxygen concentration

With timing

9. Experimental data can be stored

10. Historical data can be queried

11. Historical data can be cleared

12. Whether to burn 50mm or not is optional

13. Air source fault prompt

14. Oxygen sensor fault indication

15. Oxygen and nitrogen mismatch prompt

16. Oxygen sensor aging tips

17. Standard oxygen concentration input

Diameter of combustion tube can be set (two commonly used specifications are optional)

19. Flow regulation range: 0-20l /min (0-1200l /h)

. 20 quartz glass tube: two specifications either (diameter 75 mm or inner diameter or greater or higher 75 mm)

21. Gas flow rate in combustion tube: 40mm + / 2mm/s

22. Overall dimensions: 650mm x 400 x 830mm

23. Pressure gauge accuracy: 2.5, resolution: 0.01MPa

24. The test environment: the environment temperature: room temperature ~ 40 ℃;, relative humidity: no more than 70%;

LR-A029 ISO4589-2 ASTM D2863 Oxygen Index Tester

25. Input pressure: 0.25-0.3mpa

26. Working pressure: nitrogen 0.15-0.20mpa oxygen 0.15-0.20mpa

27. Sample clips can be used for soft and hard plastics, various building materials, textiles, fire doors, etc

28. Propane (butane) ignition system, the ignition nozzle is made of a metal, the end has Φ 2 + / - 1 mm inner diameter nozzle, can be bent freely.The flame length: 16 + 4mm, the size of 5mm-60mm can be freely adjusted.

29. Gas: nitrogen and oxygen for industrial use, purity > 99%;(the industrial oxygen purity of user - owned/regular gas station is generally between 99.2% and 99.3%).

30. Power supply requirements: AC220 (+10%) V, 50HZ

31. Maximum power: 150W

32. Self-supporting material sample holder: it can be fixed on the position of combustion cylinder axis and can clip the sample vertically

33. Non-self-supporting material sample holder: can fix two vertical edges of the sample on the frame at the same time (optional/applied to soft non-self-supporting materials such as textiles)

Test standard: ISO4589-2 ASTM D2863
