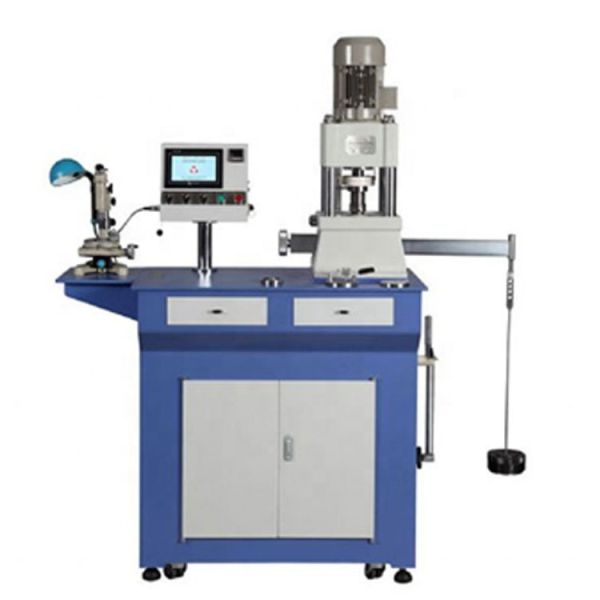

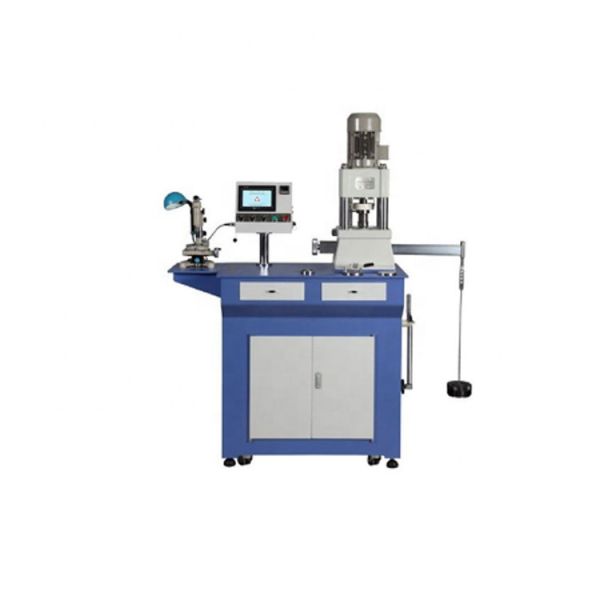

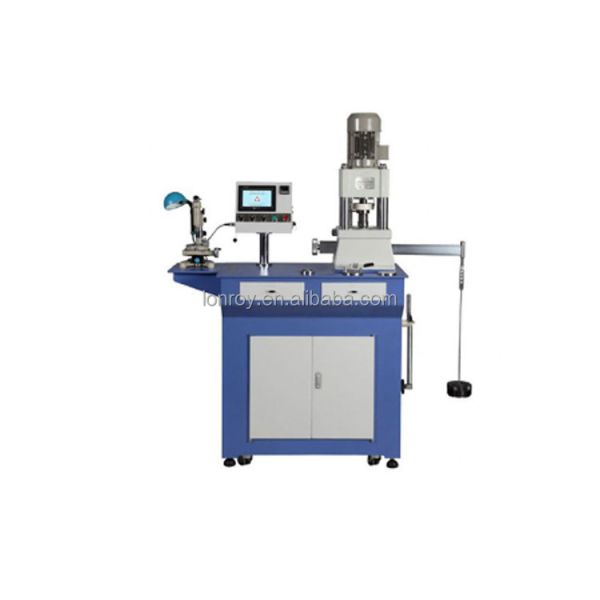

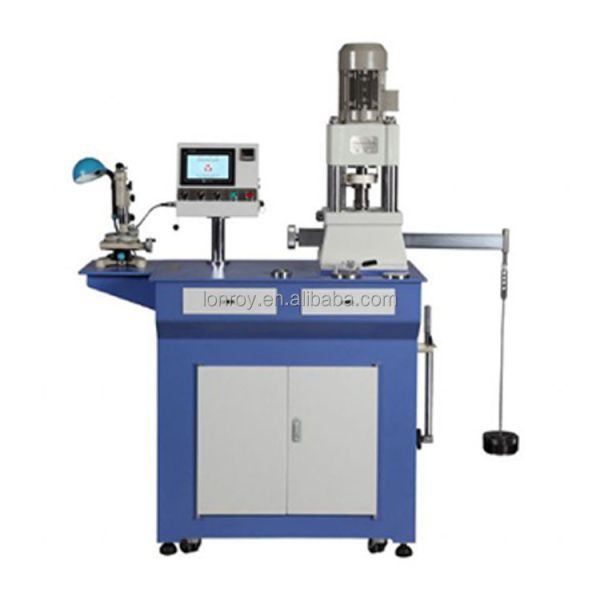

Friction Tester Petroleum Product Four Ball Wear Testing Machine Anti-wear extreme Pressure Performance Four Ball Petrol
Friction Tester Petroleum Product Four Ball Wear Testing Machine Anti-wear extreme Pressure Performance Four Ball Petrol
Friction Tester Petroleum Product Four Ball Wear Testing Machine Anti-wear extreme Pressure Performance Four Ball Petrol
Friction Tester Petroleum Product Four Ball Wear Testing Machine Anti-wear extreme Pressure Performance Four Ball Petrol
Friction Tester Petroleum Product Four Ball Wear Testing Machine Anti-wear extreme Pressure Performance Four Ball Petrol
Friction Tester Petroleum Product Four Ball Wear Testing Machine Anti-wear extreme Pressure Performance Four Ball Petrol
Friction Tester Petroleum Product Four Ball Wear Testing Machine Anti-wear extreme Pressure Performance Four Ball Petrol
Friction Tester Petroleum Product Four Ball Wear Testing Machine Anti-wear extreme Pressure Performance Four Ball Petrol
Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
±2%
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
220 V
warranty :
1 Year
Product name :
Anti-wear extreme pressure test machine
MOQ :
1
Description

Friction Tester Petroleum Product Four Ball Wear Testing Machine Anti-wear extreme Pressure Performance Four Ball Petrol

Friction tester Petroleum Product Four Ball Wear Testing Machine Anti-wear extreme pressure performance four ball machine

Friction Tester Petroleum Product Four Ball Wear Testing Machine Anti-wear extreme Pressure Performance Four Ball Petrol

Friction tester Petroleum Product Four Ball Wear Testing Machine ASTM D2266 ASTM D2783 Anti-wear extreme pressure performance

Anti-wear extreme pressure performance testing machine (four ball machine)

Features of the instrument:

1, assess lubricating oil, grease, cutting fluid PB, PD, ZMZ, D value.

2. Control the number of additives in lubricating oil, grease and cutting fluid.

3, in accordance with ASTM, ISO, DIN, GB/T, SH/T requirements.

4, the same machine to meet the wear and sintering test.

5, the application of frequency conversion system to achieve stepless speed regulation.

6. Wear spot evaluation method.

7, mechanical microscope magnifies the grinding spot to 25 times and 100 times.

8, man-machine interface, parameter centralized control.

9. Self-maintenance wizard.

Friction tester Petroleum Product Four Ball Wear Testing Machine ASTM D2266 ASTM D2783 Anti-wear extreme pressure performance

Technical parameters:

Test force: 10000N

The relative error of the test force shows: above 400N is not more than ±1%, below 400N is not more than ±5N

Friction measuring range: 0-200N

The relative error of friction is not more than ±3%

Stepless speed regulation range of spindle: 200-2000r/min

Spindle speed control accuracy: less than ±10r/min

Testing machine heating system temperature range: room temperature -200℃

Temperature control accuracy: ±2℃

Spindle motor: three-phase AC asynchronous motor,

Power: 1.5 KW

Testing machine time display and control range: 1s-9999min

Standard steel ball: φ12.7

No.
Description
Note
Unit
Qty
1
Certification & Manual
Copy
1 Each
2
Main Part
Set
1
3
Ordinary Oil Cup
Include:Oil Cup,Nut, Ball Seat, O Ring for Compact, Bolt.
Piece
1
4
Oil Cup for Heating
Include:Oil Cup,Nut,Ball Seat, O Ring for Compact, Heating Jacket,Bolt(With Thermocouple)
Piece
1
5
Single Blade
Piece
1
6
Assembly of
Guide Pillar
Include:Guide Pillar,Thrust Bearing(51106),Guide Sleeve
Piece
1
7
Assembly of Lever
Include:Lever,Balancer
Piece
1
8
Assembly of Scale Pan(1Kg)
Include:Pylons,Rod,Scale Pan
Piece
1
9
Assembly of Scale Pan(0.5Kg)
Include:Pylons,Rod,Scale Pan
Piece
1
10
Weight
5Kg
Piece
9
11
Weight
2Kg
Piece
2
12
Weight
1Kg
Piece
1
13
Weight
0.5Kg
Piece
1
14
Weight
0.2Kg
Piece
2
15
Weight
0.1Kg
Piece
1
16
Weight
0.05Kg
Piece
1
17
Microscope
MZD0745C
Set
1
18
Seat for Microscope
Piece
1
19
Optical Standards of Piece for Microscope
Piece
1
20
Light Source for Microscope
Piece
1
21
Printer
IP100
Set
1
22
Lifter
Set
1
23
Foot Switch
Piece
1
24
Eccentric Rod
Piece
1
25
Nut for Compact
Piece
1
26
Pin Roll
Piece
2
27
Chuck
Piece
2
28
O Ring for Compact
Piece
2
29
Ball Seat
Piece
2
30
Insert
1#:H0.0mm 2#:H0.0mm
Piece
2
31
Gasket of Heat Insulation
1mm
Piece
2
32
Gasket of Heat Insulation
0.5mm
Piece
1
33
Bolt
Piece
1
34
Bolt for Oil Cup
General Oil Cup
Piece
1
35
Steel Ball
Φ12.7
Piece
200
36
Cable for Heating
Piece
1
37
Heating Jacket
Piece
1
38
Thermocouple
Piece
2
39
Fuse
Φ10×38 1A
Piece
2
40
Middle Relay
RJ1S-CLD-D24
Piece
1
41
O Ring
Φ9×2
Piece
8
42
Wrench
0-300N.M
Piece
1
43
Wrench
SE-01-100
Piece
1
44
Jacket for Oil Cup
Piece
1
45
Pylons of
Torque Wrench
Piece
1
46
Steel Ball Top Tight Stem
Piece
1
47
T Hex Wrench
7mm
Piece
1
48
Head Wrench Hook
45-52
Piece
1
49
Stay Wrench
6/10
Piece
1
50
Socket Wrench
Piece
1
51
Tweezer for Steel Ball
Piece
1
52
Chuck Steel Ball Plunger
Piece
1
53
Key for Cabinet
Piece
2
54
Manual
Copy
1
55
Software on Disk
Piece
1
56
Calculate Seat for Weight
Piece
1
57
Leds
White Light
Piece
2
58
Cable Power for Out
Include Joint
Piece
1
59
Block Ring Plier
Piece
1
60
Clean Dish
Piece
2
61
Amphibious Screwdriver
ST-201N
Piece
1
62
Screwdriver
2×50mm
Piece
1
63
Hex Wrench
4mm
Piece
1
64
Hex Wrench
1.5mm
Piece
1
65
Hex Wrench
1.2mm
Piece
1
66
Round Head Tweezer
18cm
Piece
1
67
Ink for Printer
e-820
Piece
1
68
USB Storage
4G
Piece
1
69
Sample Oil
Bottle
1
70
USB Lamp
Piece
1

Friction tester Petroleum Product Four Ball Wear Testing Machine ASTM D2266 ASTM D2783 Anti-wear extreme pressure performance
