Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
±0.2%
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Lab Testing, Laboratory Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
220 V
warranty :
1 Year
Product name :
Needle flame testing machine
Model Number :
LR-K003
MOQ :
1
Description

IEC 884 UL 1694 Needle Flame Testing Equipment/Flammability Tester/Needle Flame Testing Machine Flammability Tester

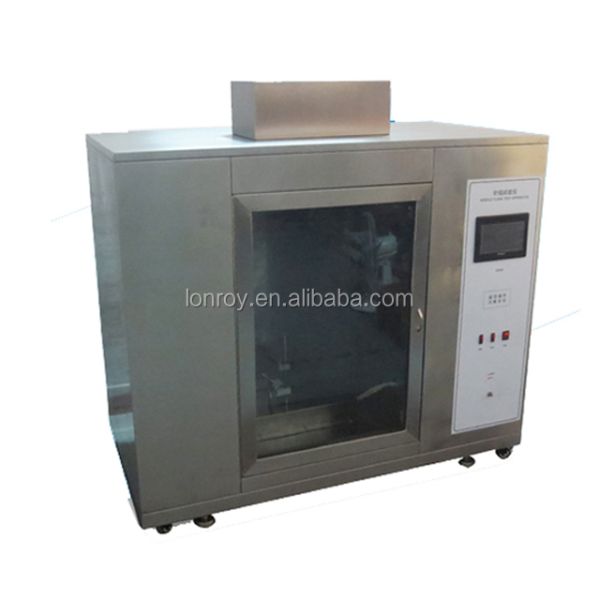

Needle flame testing equipment/Flammability Tester/Needle flame testing machine

IEC 884-1, GB2099.1, VDE, IEC335, GB4706.1, GB5169.5, UL1694.

Needle flame testing equipment/Flammability Tester/Needle flame testing machine

Technical specifications

This product according to used in electronic, electrical products due to fault conditions, such as through the leak path of fault current, components or parts of overheating, such as bad contact also may cause fire, it may be shot into the nearby on the part of the test is simulation under fault conditions inside the product produced by the small flame, simulation technology is used to evaluate the fire risk.For small parts (or components) hot wire test or horizontal - vertical combustion test method is not suitable, can cite needle flame test method.If the sample is ignited during the hot wire test, a needle flame test is required for the combustion hazard.Suitable for electronic electrical products, household appliances, components, such as: terminal, centrifugal switch, electric rice cooker socket.

Needle flame testing equipment/Flammability Tester/Needle flame testing machine

basic specifications

Volume of the box

≥0.5 m3 , with glass observation door

Fuel

butane gas

Burner specification

more than 35 mm long, inner Ø0.5mm±0.1mm,Outside diameter less than Ø 0.9 mm

Flame height

12mm ± 1mm adjustable

Flame temperature

100 ℃ to 700 ℃ within 23.5 ± 1 S

Timer

adjustable within the range of 0 ~ 99 minutes and 99 seconds, the combustion time can be set, and the combustion duration can be recorded

Product features

the combustion chamber and main mechanical parts of this tester are all made of stainless steel, with beautiful shape, smoke resistance and gas corrosion resistance.Time and digital display, three - dimensional adjustable fixture, automatic control system, independent ventilation, easy to use observation records, stable and reliable.With a temperature measuring device.

Power supply

AC220V / 50Hz
