Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
None
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
X-ray Spectrometer
customized support :
OEM, ODM, OBM
power :
5-50KV
Protection Class :
None
Voltage :
220 V
warranty :
1 Year
Analysis time :
30-900 seconds, adjustable
Filter :
6filters are automatically selected and converted
ADC :
2048 channels
Sanple type :
Plastic/metal/film/powder/liquid etc
MOQ :
1
Description

EDXRF Energy Dispersive X-ray Fluorescence Spectrometer X-ray Spectrometer Gold Tester Xrf Spectrometer XRF Analyzer XRF

Product Description

EDXRF Energy Dispersive X-ray Fluorescence Spectrometer X-ray Spectrometer Gold Tester Xrf Spectrometer XRF Analyzer XRF

EDXRF Energy Dispersive X-ray Fluorescence Spectrometer X-ray Spectrometer Gold Tester Xrf Spectrometer XRF Analyzer XRF

EDXRF Energy Dispersive X-ray Fluorescence Spectrometer X-ray Spectrometer Gold Tester Xrf Spectrometer XRF Analyzer XRF

EDXRF Energy Dispersive X-ray Fluorescence Spectrometer X-ray Spectrometer Gold Tester Xrf Spectrometer XRF Analyzer XRF

EDXRF Energy Dispersive X-ray Fluorescence Spectrometer X-ray Spectrometer Gold Tester Xrf Spectrometer

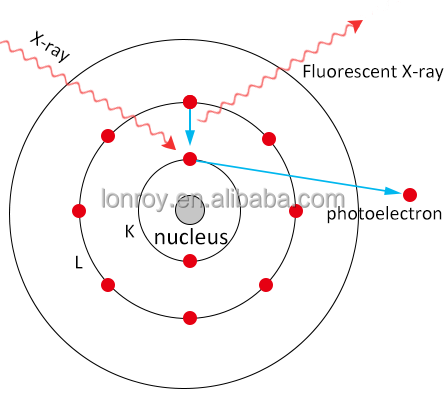

4.Basic principle of XRF analysis
The electron orbital potential energy of the various elements is different from each other excitation is different from each other,i.e.,each element emits x-rays with the specific energy of the atom of that element,which represents the characteristics of the element and is therefore called the characteristic X-ray of the element. The characteristic X-ray of each element has its specific energy, and the X-ray detected with certain energy can determine the existence of this element in the material sample.

EDXRF Energy Dispersive X-ray Fluorescence Spectrometer X-ray Spectrometer Gold Tester Xrf Spectrometer

5.Applications widely

Electronics, plastics, metal materials: various electronic components, hardware, plastic materials and products, circuit board etc.
Paper and paper materials: raw materials, various paper, toner, ink, etc.
Petroleum, coal: petroleum, lubricating oil, heavy oil, polymer, coal, coke, etc.
Ceramics, cement: ceramics, refractory materials, rocks, glass, cement, cement raw materials and raw materials, clinker, limestone, clay, etc.
Agriculture, food: soil, pesticide residues, fertilizer, plants, various food and so on.
Non-ferrous metals: copper alloys, aluminum alloys, lead alloys, zinc alloys, magnesium alloys, titanium alloys, precious metals, etc.
lron and steel: pig iron, cast iron, stainless steel, low alloy steel, high alloy steel, special steel, ferroalloy, iron ore, slag, electroplating solution, casting sand, etc
Chemical industry: inorganic organics and products, cosmetics, detergents, rubber, toners, catalysts, coatings, pigments, drugs, chemical fibers, etc.
Environment: all kinds of waste, industrial waste, atmospheric dust, industrial waste water, sea water, river water, etc.
Biological science: organisms. auxiliaries, etc.

EDXRF Energy Dispersive X-ray Fluorescence Spectrometer X-ray Spectrometer Gold Tester Xrf Spectrometer

6.Main component and technial parameters

The detection limit of harmful elements Cd, Pd, Cr, Hg and Br is restricted according to ROHS instruction
Detection limit (Cd, Pd, Cr, Hg, Br): 2ppm
Si(PIN) or SDD detectorThe resolution of detector is one of the main indexes to evaluate the performance of energy dispersive XRF spectrometer. Resolution< 145eV (The lower the resolution, the higher the sensitivity.)
Counting rate >1000/S Crystal area > 15m² Beryllium window thickness = 0.025mm
Detector power< 1.2W
Multi-channel analyzerNumber of channels: 2048 channels
Power controllerSystem power control: +5 VDC at 250 mA(1.2 W)
Constant cooling control: 400 VDC
X ray tubeThe X-ray tube, specially treated with embedded lead inside is shielded in full range, leaving only the side window for the x ray outlet. The canned insulating oil is used for high voltage insulation and cooling, 0.005 inch Beryllium window,rated consumption power 50W, rated power 50kV. Designed service life >15000h.
High voltage generator
Input: 85 ~ 265VAC, 47 ~ 63Hz, Power factor correction.1kV ~ 5kV comply to UL85 ~250VAC input standard Voltage variation: 0.01% of output voltage from no load to full load
Current variation: 0 ~rated power, 0.01% of output current Ripple: Peak - peak of output voltage 0.25% Temperature variation:voltage or current setting, 0.01%/oC
Stability: 0.05%/8h after warming-up for half an hour
EDXRF Energy Dispersive X-ray Fluorescence Spectrometer X-ray Spectrometer Gold Tester Xrf Spectrometer
7.Technical parameters
Model
Al - NP - 5010A
Anylysis principle
Energy dispersive X-ray fluorescence analysis
Element measuring range
Any element from Na(11)~U(92)
Min. measuring limit
Cd/Hg/Br/Cr/Pb ≤ 2ppm
Sample shape
Arbitrary size, any irregular shape
Sanple type
Plastic/metal/film/powder/liquid etc
X ray tube
Target material
Mo
Tube voltage
5-50KV
Tube current
1-1000μA
Sample exposure diameter
2, 5, 8mm
Detector
Si-PIN or SDD detector, high speed pulse height analysis system
High voltage generator
Special HV genetator for X fluorescence
ADC
2048 channels
Filter
6filters are automatically selected and converted
Sample observation
200 * color CCD camera
Analysis software
Patented software products, free upgrade for life
Analysis method
Theoretical α coefficient method, basic parameter method, empirical coefficient method
Analysis time
30-900 seconds, adjustable
Operating system software
WINDOWS XP
Data processing system
Host
PC business model
CPU
≥ 2.8G
Memory
≥ 2G
CD-ROM
8*DVD
Hard disk
≥ 500G
Display
22″ or 24″ LCD display
Working enviroment
Temperature 10-35 ℃, humidity 30-90% RH
