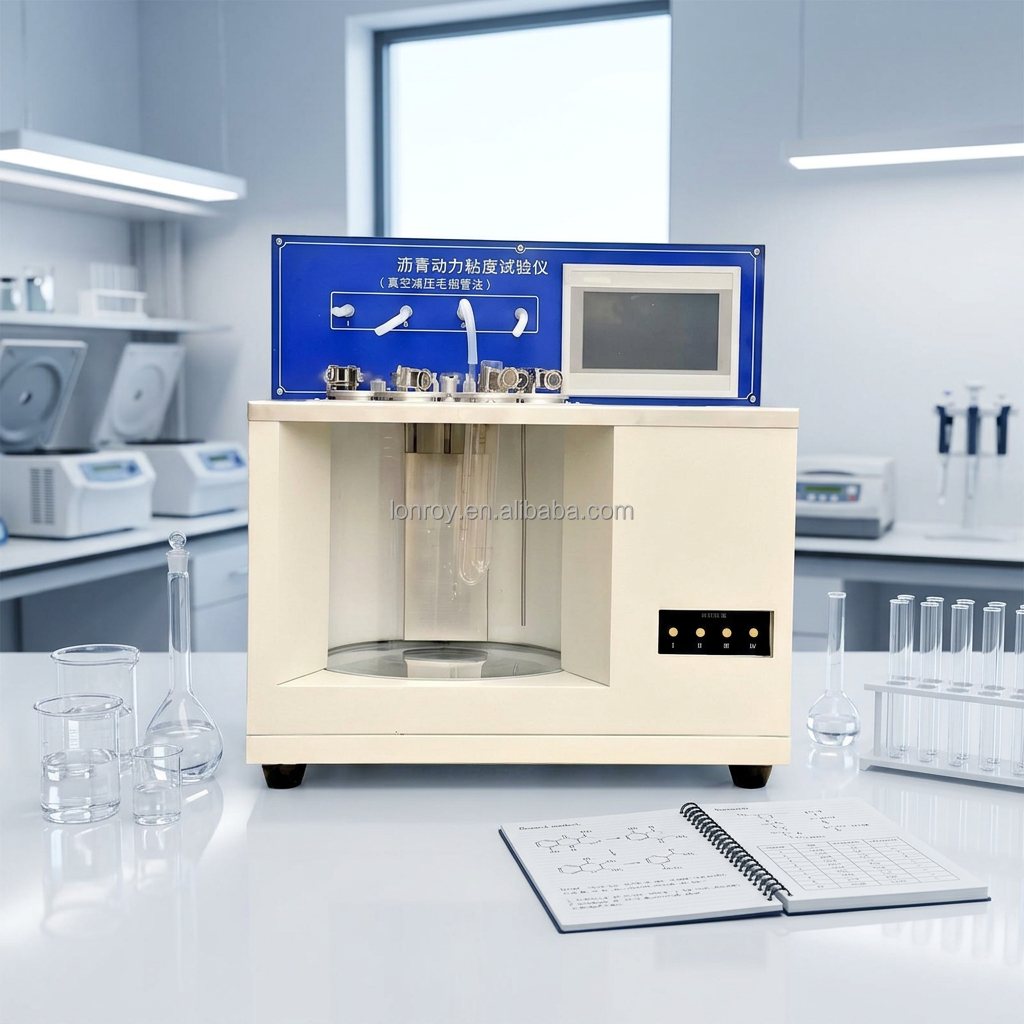

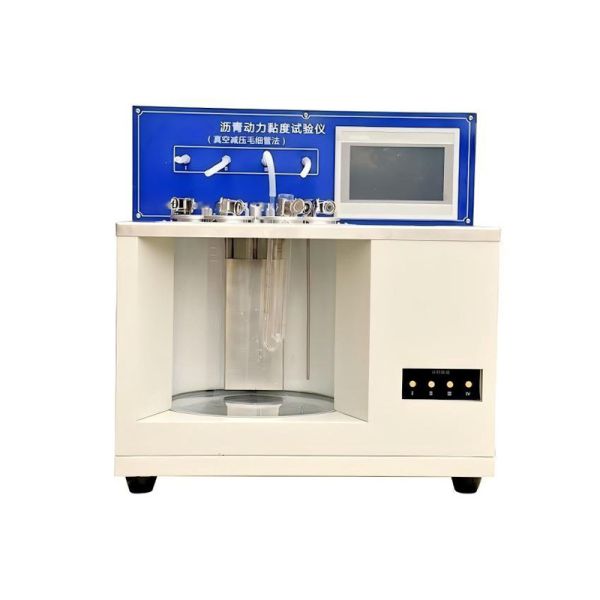

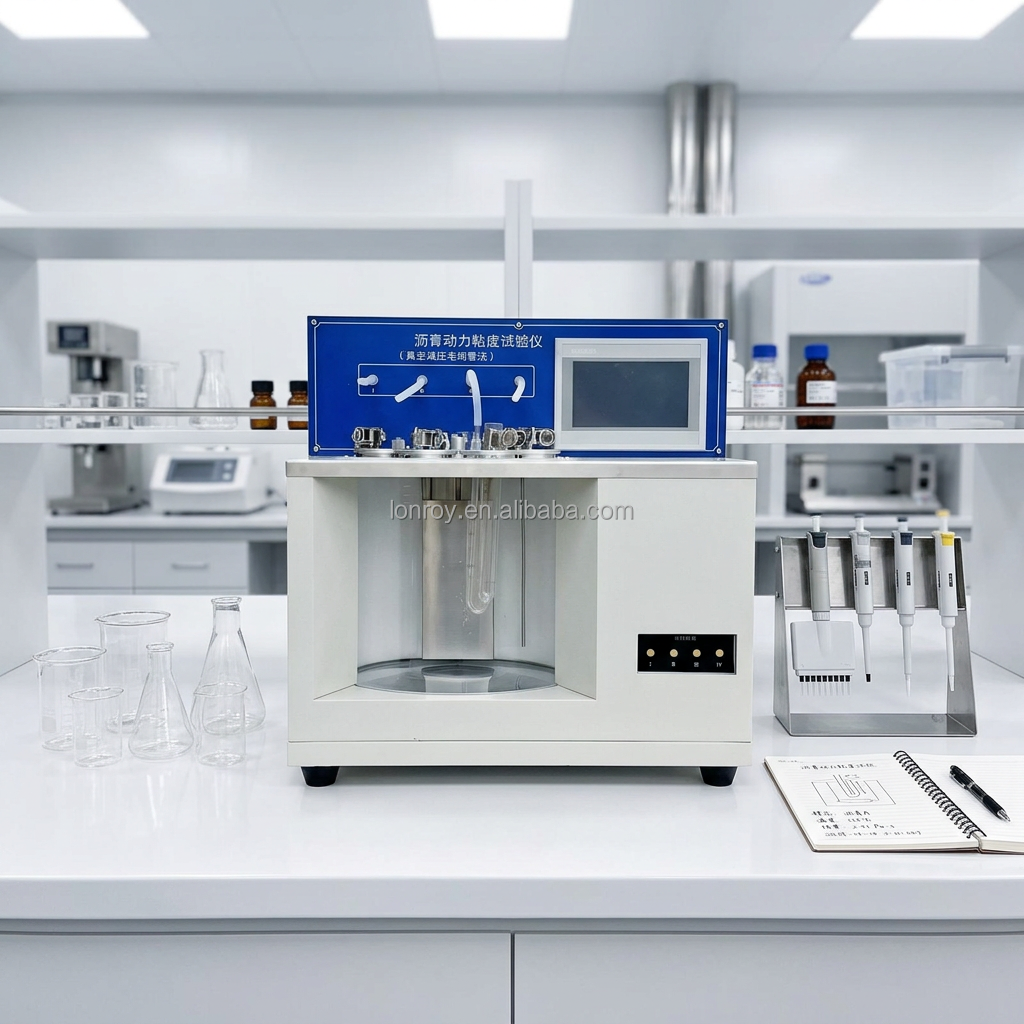

Asphalt Dynamic Viscosity Tester Vacuum Capillary Method Petroleum Asphalt Viscosity Analyzer Vacuum Capillary Petroleum
Asphalt Dynamic Viscosity Tester Vacuum Capillary Method Petroleum Asphalt Viscosity Analyzer Vacuum Capillary Petroleum
Asphalt Dynamic Viscosity Tester Vacuum Capillary Method Petroleum Asphalt Viscosity Analyzer Vacuum Capillary Petroleum
Asphalt Dynamic Viscosity Tester Vacuum Capillary Method Petroleum Asphalt Viscosity Analyzer Vacuum Capillary Petroleum
Asphalt Dynamic Viscosity Tester Vacuum Capillary Method Petroleum Asphalt Viscosity Analyzer Vacuum Capillary Petroleum
Asphalt Dynamic Viscosity Tester Vacuum Capillary Method Petroleum Asphalt Viscosity Analyzer Vacuum Capillary Petroleum
Asphalt Dynamic Viscosity Tester Vacuum Capillary Method Petroleum Asphalt Viscosity Analyzer Vacuum Capillary Petroleum
Asphalt Dynamic Viscosity Tester Vacuum Capillary Method Petroleum Asphalt Viscosity Analyzer Vacuum Capillary Petroleum
Asphalt Dynamic Viscosity Tester Vacuum Capillary Method Petroleum Asphalt Viscosity Analyzer Vacuum Capillary Petroleum
Asphalt Dynamic Viscosity Tester Vacuum Capillary Method Petroleum Asphalt Viscosity Analyzer Vacuum Capillary Petroleum
Asphalt Dynamic Viscosity Tester Vacuum Capillary Method Petroleum Asphalt Viscosity Analyzer Vacuum Capillary Petroleum
Asphalt Dynamic Viscosity Tester Vacuum Capillary Method Petroleum Asphalt Viscosity Analyzer Vacuum Capillary Petroleum
Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
----
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
220 V
warranty :
1 Year
Operating Power Supply :
AC (220±10%)V, 50Hz, power consumption not exceeding 1800W
Relative Humidity :
≤85%
Dimensions :
590mm * 430mm * 630mm (Length * Width * Height)
Net Weight :
32.5 kg (without water in the bathtub)
MOQ :
1
Description

Asphalt Dynamic Viscosity Tester Vacuum Capillary Method Petroleum Asphalt Viscosity Analyzer Vacuum Capillary Petroleum

Asphalt Dynamic Viscosity Tester Vacuum Capillary Method Petroleum Asphalt Viscosity Analyzer Vacuum Capillary Viscometer

Product Description

Purpose and Scope of Application

This instrument is designed and manufactured according to the requirements of the People's Republic of China industry standard JTG E20-2011 "Test Procedures for Asphalt and Asphalt Mixtures in Highway Engineering" T0620-2000 "Dynamic Viscosity Test of Asphalt (Vacuum Capillary Method)" and the People's Republic of China petrochemical industry standard SH/T0557-1998 "Petroleum Asphalt Viscosity Determination Method (Vacuum Capillary Method)".

This instrument is suitable for determining the dynamic viscosity of viscous petroleum asphalt using a vacuum capillary viscometer. Unless otherwise specified, the test temperature is 60℃ and the vacuum degree is 300mmHg.

This instrument is also suitable for determining the viscosity of other substances in the range of 0.0036-20.00 Pa·s using the vacuum capillary method, at a test temperature of 60℃ and a vacuum degree of 300mmHg (40Kpa).

Asphalt Dynamic Viscosity Tester Vacuum Capillary Method Petroleum Asphalt Viscosity Analyzer Vacuum Capillary Viscometer

Technical Specification

Temperature Control Method

Intelligent integrated temperature controller maintains the water bath temperature at the required experimental temperature

Temperature Control Range

Room temperature ~ 100.00℃

Temperature Control Accuracy

±0.03℃

Operating Pressure Range

300mmHg ± 0.5mmHg

Timing Method

Built-in 4 timers, capable of simultaneously timing 4 capillary tubes

Timing Range

0.0s–9999.9s (27.7 hours); Error <0.02%

Measurement Range

Approximately 18Pa·s ~ 58000Pa·s

Number of Sample Wells

4

Human-Machine Interface

Color LCD touchscreen

Operating Power Supply

AC (220±10%)V, 50Hz, power consumption not exceeding 1800W

Ambient Temperature

5℃–50℃

Relative Humidity

≤85%

Dimensions

590mm × 430mm × 630mm (Length × Width × Height)

Net Weight

32.5 kg (without water in the bathtub)
