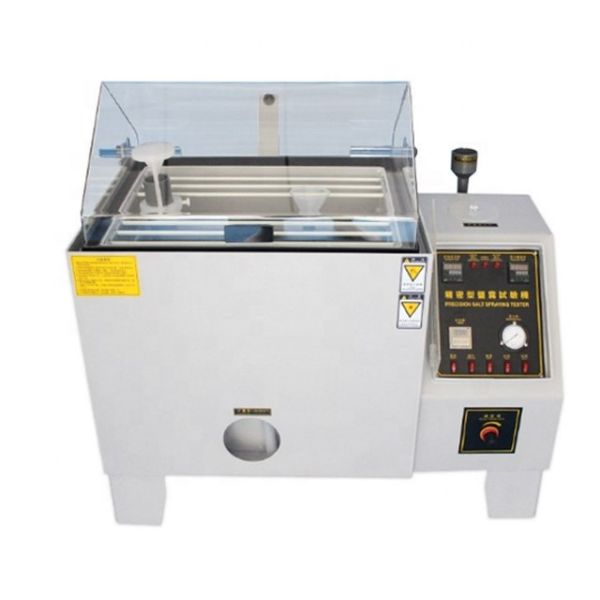

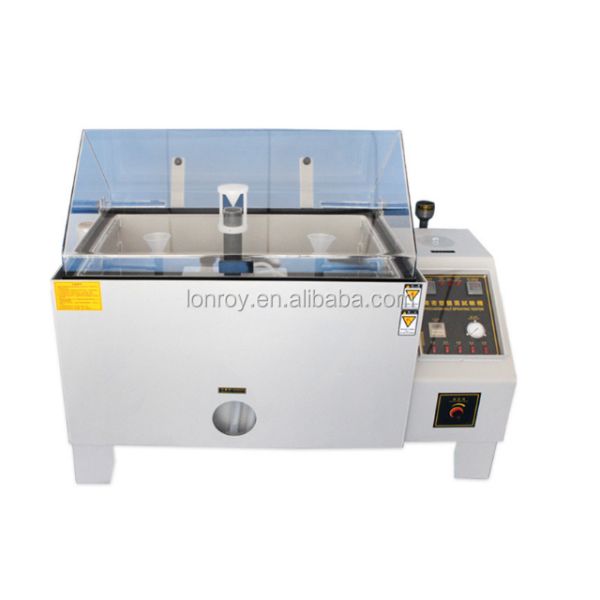

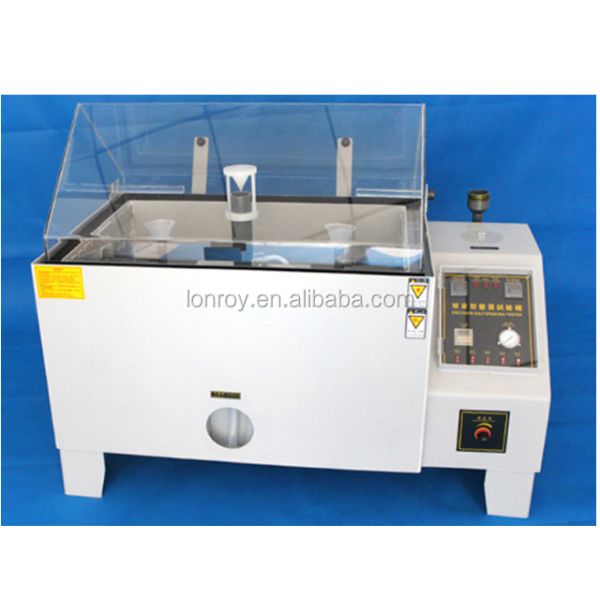

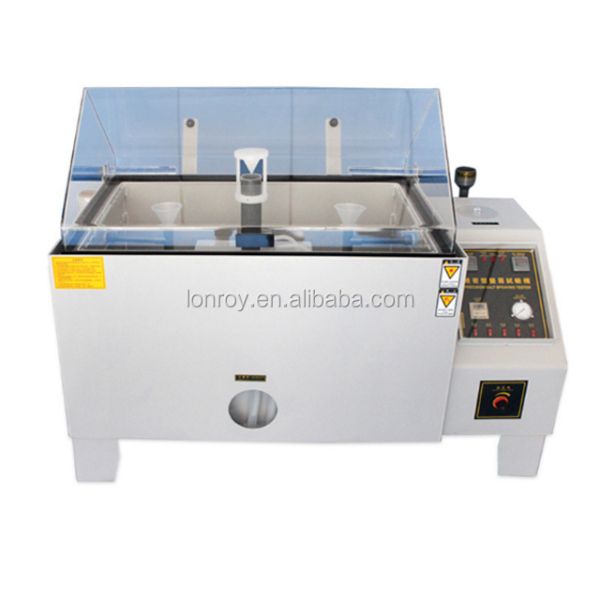

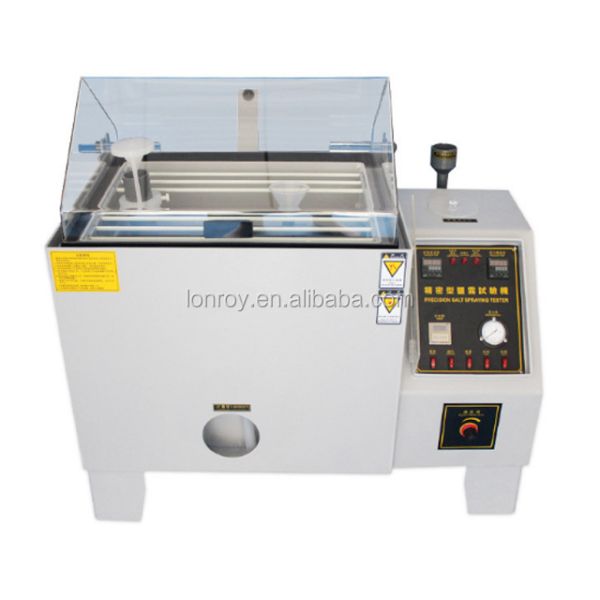

ISO 9227 ASTM B117 Composite Salt Mist Spray Cyclic Corrosion Test Chamber Salt Fog Tester
ISO 9227 ASTM B117 Composite Salt Mist Spray Cyclic Corrosion Test Chamber Salt Fog Tester
ISO 9227 ASTM B117 Composite Salt Mist Spray Cyclic Corrosion Test Chamber Salt Fog Tester
ISO 9227 ASTM B117 Composite Salt Mist Spray Cyclic Corrosion Test Chamber Salt Fog Tester
ISO 9227 ASTM B117 Composite Salt Mist Spray Cyclic Corrosion Test Chamber Salt Fog Tester
ISO 9227 ASTM B117 Composite Salt Mist Spray Cyclic Corrosion Test Chamber Salt Fog Tester
ISO 9227 ASTM B117 Composite Salt Mist Spray Cyclic Corrosion Test Chamber Salt Fog Tester
ISO 9227 ASTM B117 Composite Salt Mist Spray Cyclic Corrosion Test Chamber Salt Fog Tester
ISO 9227 ASTM B117 Composite Salt Mist Spray Cyclic Corrosion Test Chamber Salt Fog Tester
ISO 9227 ASTM B117 Composite Salt Mist Spray Cyclic Corrosion Test Chamber Salt Fog Tester
Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
±0.5%
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
220 V
warranty :
1 Year
Product name :
Salt Mist Spray Cyclic Corrosion Test Chamber
Model Number :
LR-B007
MOQ :
1
Description

Use:

This machine has a standardized test method to check corrosion resistence of coated samples. Salt spray test is an accelerated corrosion test that produces a corrosive attack to the coated samples in order to predict its suitability in use as a protective finish. The appearance of corrosion products (oxides) is evaluated after a period of time. Test duration depends on the corrosion resistance of the coating; the more corrosion resistant the coating is, the longer the period in testing without showing signs of corrosion. Different coatings have different behaviour in salt spray test and consequently, test duration will differ from one type of coating to another.

Design Standards:ISO 9227,GB/T 2423.17-1993 ,GB/T 2423.18-2000,GB/T 10125-1997,ASTM.B117-97

JIS H8502 ,IEC68-2-11,IEC68-2-52 1996 ,GB.10587-89,CNS.4158,CNS.4159,CASS,GB/T 12967.3-91 CASS

Specification:

Model

LR-B007-60

LR-B007-90

LR-B007-120

LR-B007-200

Design Standards

GB/T 10587-2006,GB/T 10125-1997,JIS-D0201,H8502,H8610,K5400,Z2371

Test chamber capacity (L)

108L

270L

600L

1440L

Temperature

NSS.ACSS 35°C±1°C/CASS 50°C±1°C

NSS.ACSS 47°C±1°C/CASS 63°C±1°C

Test chamber size

LxWxD(cm)

60*45*40

90*60*50

120*100*50

200*120*60

Max volum of test liquid (L)

15

25

40

40

Volume LxWxD(cm)

107*60*118

141*88*128

190*130*140

270*150*150

Power

AC220V,10A

AC220V,15A

AC220V,30A

AC220V,30A

Spray quantity

1.0~2.0ml/80cm2/h

PH

6.5~7.2 3.0~3.2

CNS.JIS.ASTM specification

(A) Salt water spray test:NSS , ACSS

(1)Test Room:35℃±1℃

(2)Saturation air barrel :47℃±1℃

(B) Corrosion resistance test(acidity test): CASS

(1)Test Room:50℃±1℃

(2)Saturation air barrel:63℃±1℃

Cubage of the brine barrel : 15L

Brine Concentration : 5%

ISO 9227 ASTM B117 Composite Salt Mist Spray Cyclic Corrosion Test Chamber Salt Fog TesterISO 9227 ASTM B117 Composite Salt Mist Spray Cyclic Corrosion Test Chamber Salt Fog TesterISO 9227 ASTM B117 Composite Salt Mist Spray Cyclic Corrosion Test Chamber Salt Fog TesterISO 9227 ASTM B117 Composite Salt Mist Spray Cyclic Corrosion Test Chamber Salt Fog TesterISO 9227 ASTM B117 Composite Salt Mist Spray Cyclic Corrosion Test Chamber Salt Fog Tester
