Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
±1%
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Lab Testing, Laboratory Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
IP66
Voltage :
220 V
warranty :
1 Year
Product name :
Rain test instrument
Model Number :
LR-81
MOQ :
1
Description

IPX1-4 Rain test Instrument (vertical Drip + Swing Pipe Rain) IEC 60529 Environment Test Chamber

IPX1-4 Rain test instrument (vertical drip + swing pipe rain) IEC60529

Design standard: According to IEC60529, GB4208-2017 "Shell protection level (IP code)", and GB7000.1 "Lamps Part I: General requirements and tests" requirements.

Equipment use:
This product is suitable for testing electrical products, enclosures and seals in the rain environment to ensure the good performance of equipment and components. Suitable for IPX1, IPX2, IPX3, IPX4 waterproof level test of products
Multi-functional vertical drip + swing pipe rain, a machine can be freely switched.
PLC touch screen control, easy operation, automatic stop after the test, no personnel on duty.
The equipment comes with water tank, saving resources.

IPX1-4 Rain test instrument (vertical drip + swing pipe rain) IEC60529
structural material:
1. The inner liner is stainless 304 steel
2, outer box stainless steel 304 stainless steel
3, the sample table is equipped with a circular turntable, the speed is adjustable

safety protection device:
1, power overload, short circuit protection
2, grounding protection
3. Water shortage protection
4, alarm warning

IPX1-4 Rain test instrument (vertical drip + swing pipe rain) IEC60529

Inner box size (mm)1000x1000x1000(depth x width x height)
the test bench speed (rpm)1~5 adjustable, turntable diameter :300mm,adjustable 15° tilt Angle, turntable height adjustable 200mm.
spray ring radius (mm)300
spray pipe swing Angle range45°, 90°, 180°(similar)
Blowhole diameter (mm)medium 0.4
spray aperture spacing (mm)50
Flow rate of each blowhole0.07L /min +5%
water spray pressure (Kpa)80-150
pendulum tube swingmaximum soil 150°
spray pipe swing speedIP3 15 times /min; lP4 5 times /min
IP12drip hole 0.4MM, each hole spacing 20X20MM. Drip area 600X600MM, height 80MM
test time1-999,999min(can be set)
rain water pressure80~150Kpa(adjustable)
the distance between the test sample and the test equipment is 200mm, after the test, the function test is carried out after the normal temperature is restored for 24H.
the box full stainless steel or powder, visible toughened glass window.
equipped with moderate circular turntable (for sample) speed adjustable

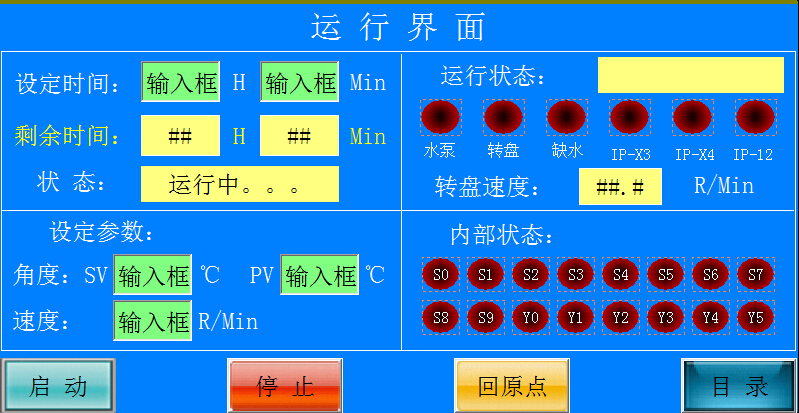

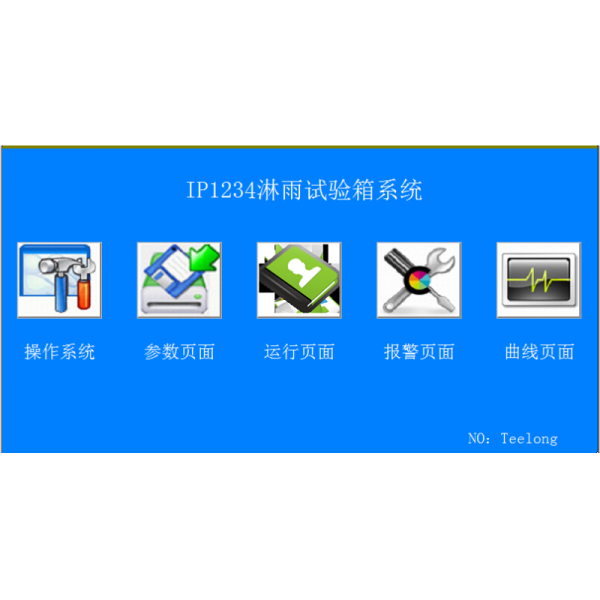

control systemself-developed touch screen control system.
Power supply220V 50HZ
implementation standardsGB2423,38-90, GB4706.32-2004IEC-5129
nameBrand and originquantityremark
7 inch touch screen controllerMGCE1
Ac contactorSnyder, France1
Intermediate relaySnyder, France1
filterTaiwan1
Stepper motorHakushan Electric1
sensorYangming, Taiwan1
Button with lightShanghai Tiande1
fuseTaiwan.1
Mains switchSnyder, France1
Stainless steel pumpA surname1

IPX1-4 Rain test Instrument (vertical Drip + Swing Pipe Rain) IEC 60529 Environment Test ChamberIPX1-4 Rain test Instrument (vertical Drip + Swing Pipe Rain) IEC 60529 Environment Test ChamberIPX1-4 Rain test Instrument (vertical Drip + Swing Pipe Rain) IEC 60529 Environment Test ChamberIPX1-4 Rain test Instrument (vertical Drip + Swing Pipe Rain) IEC 60529 Environment Test Chamber
