Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
---
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---, Electronic
Protection Class :
IP65
Voltage :
220 V
warranty :
1 Year
MOQ :
1
Description

3nh NH300 Portable Colorimeter Color Analysis Meter

Intruduction-3nh NH300 Portable Colorimeter,color analysis meter

NH300 colorimeter features a simple interface, making it's very convenient to operate. Elegant appearance combines perfectly with the ergonomic design, which makes it a model of portable handheld colorimeter.

NH300 colorimeter, easy to use and cost-effective, widely used in R&D, quality control and production management department, can measure color difference accurately and quickly. NH300 colorimeter is equipment with quality control management software which can connect the computer to realize more fuction.

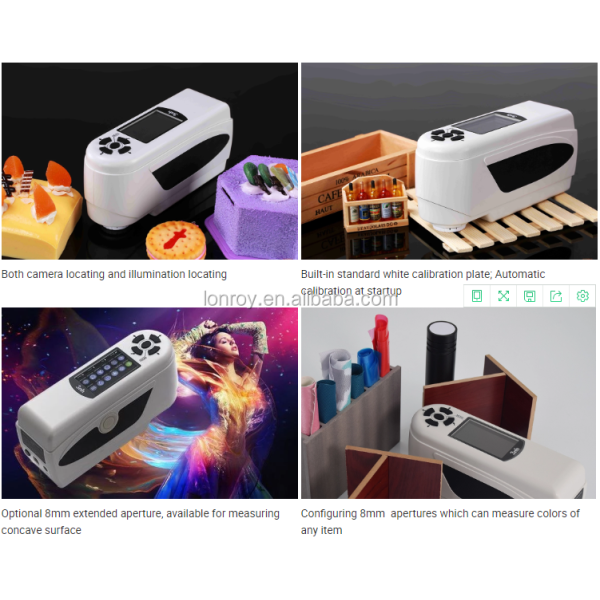

NH300 colorimeter also features its locating method, illumination locating, which can solve the problem of measuring small spots very well.

Repetitive error is less than 0.07ΔE*ab, inter-instrument error is less than 0.4ΔE*ab, which make its stability and reliability of measurement very superior.

NH300 colorimeter is standardly configured with 1 measuring aperture, 8mm, 1 light source mode, multiple color space systems, multiple chromaticity indexes conforming to different standards, all of which make NH300 can at a certain degree fulfill different kinds of requirements for color measurements in different industries.

NH300 colorimeter also goes with a powerful PC software CQCS3 which includes more extended functions that can enormously facilitate your work.

With the configuration of universal test component and powder test box, measurements of liquid, paste, powder and particle can be implemented without hesitation.

Detailed Parameters-3nh NH300 Portable Colorimeter,color analysis meter
3nh NH300 Portable Colorimeter,color analysis meter
Model Number
NH300 Colorimeter
Illuminating/Viewing Geometry
8°/D (8° illumination, diffused viewing angle)
Measuring Aperture
Φ8mm
Integrating Sphere
Non
Locating Method
Illumination Locating
Repetitive Error
Standard deviation ΔE*ab≤0.07 (Measurement Conditions: White calibration plate measured 30 times at 5 seconds intervals after white calibration performed.)
Inter-Instruments Error
ΔE*ab≤0.4
Wavelength Range
Non
Wavelength Pitch
Non
Reflectance Range
Non
Color Space
CIE L*a*b*C*H*, CIE L*a*b, CIE XYZ
Color Difference Formula
ΔE*ab, ΔL*a*b, ΔE*C*H
Display Data
Colorimetric Value, PASS/FAIL Result
Other Chromaticity Data
Non
Observer Angle
10°
Light Sources Type
D65
Light Source Device
LED Blue Light Excitation
Light Source Life
5 years, More than 1.6 million measurements
Sensor
Silicon Photoelectric Diode Array
Measuring Time
1.5s
Data Storage
100 Standards, 20000 Samples
Data Port
USB
Display Size
TFT 2.8"
Touch-Screen
Non
Operating Temperature
0~40℃ (32℉~104℉)
Storage Temperature
-20℃~50℃ (-4℉~122℉)
Humidity
0~85%, No condensation
PC Software
CQCS3
Weight
500g
Dimension
205*70*100mm
Battery
Large Capacity Li-ion Battery

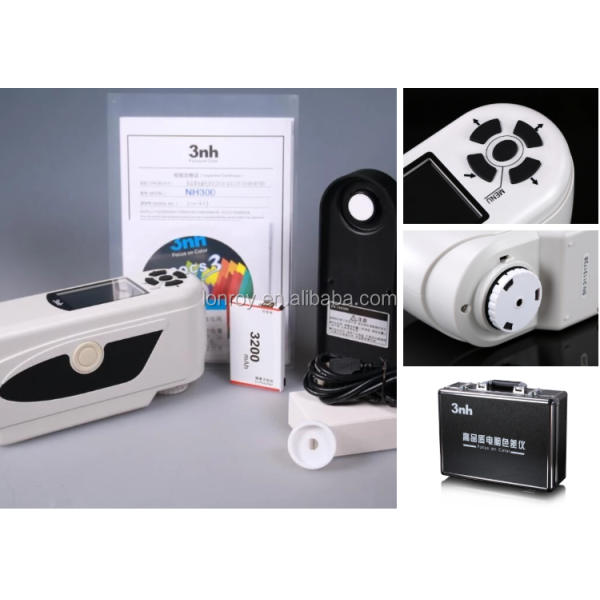

Standard Accessory
Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM(containing color management software), USB Cable, White Calibration Plate, Φ8mm Measuring Aperture
Optional Accessory
Universal Test Components, Micro-Printer, Powder Test Box
Certificates
CE & RoHS & TUV & ISO9001
3nh NH300 color meter fabric dyeing machine/ colorimeter
