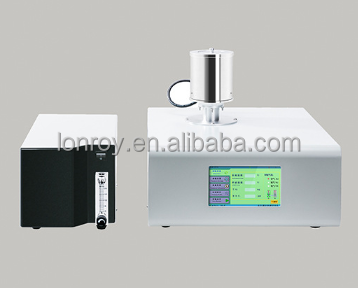

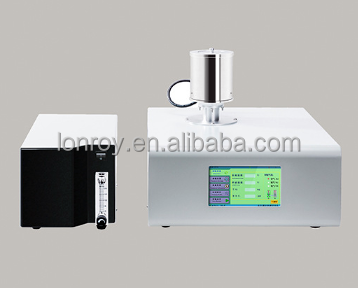

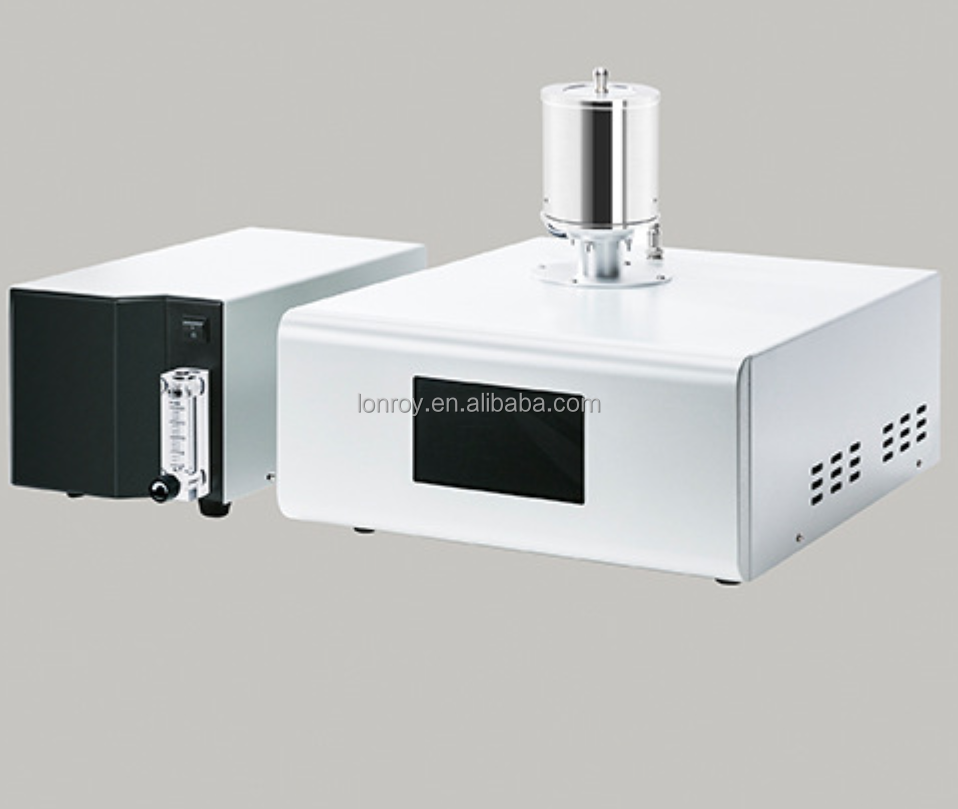

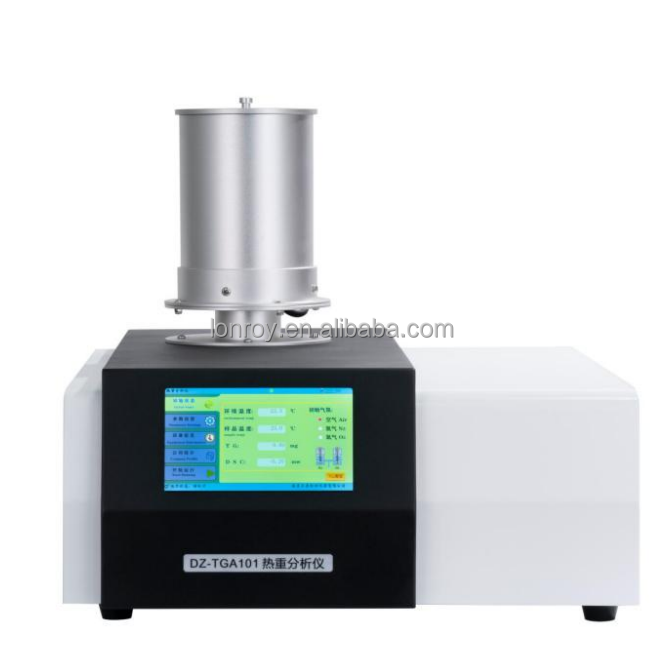

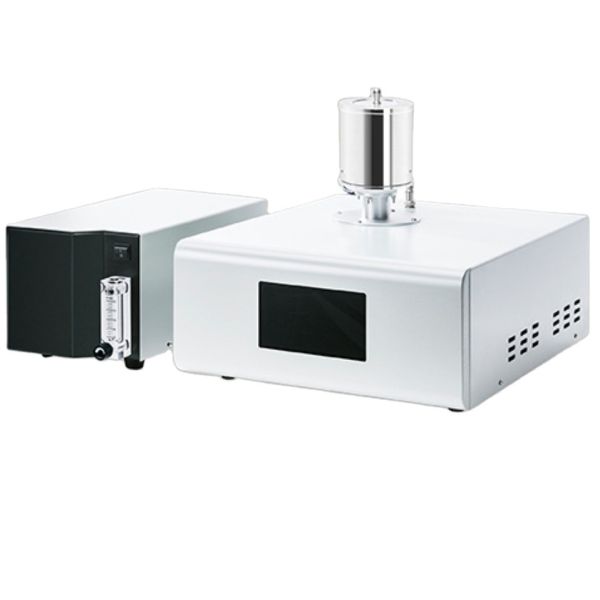

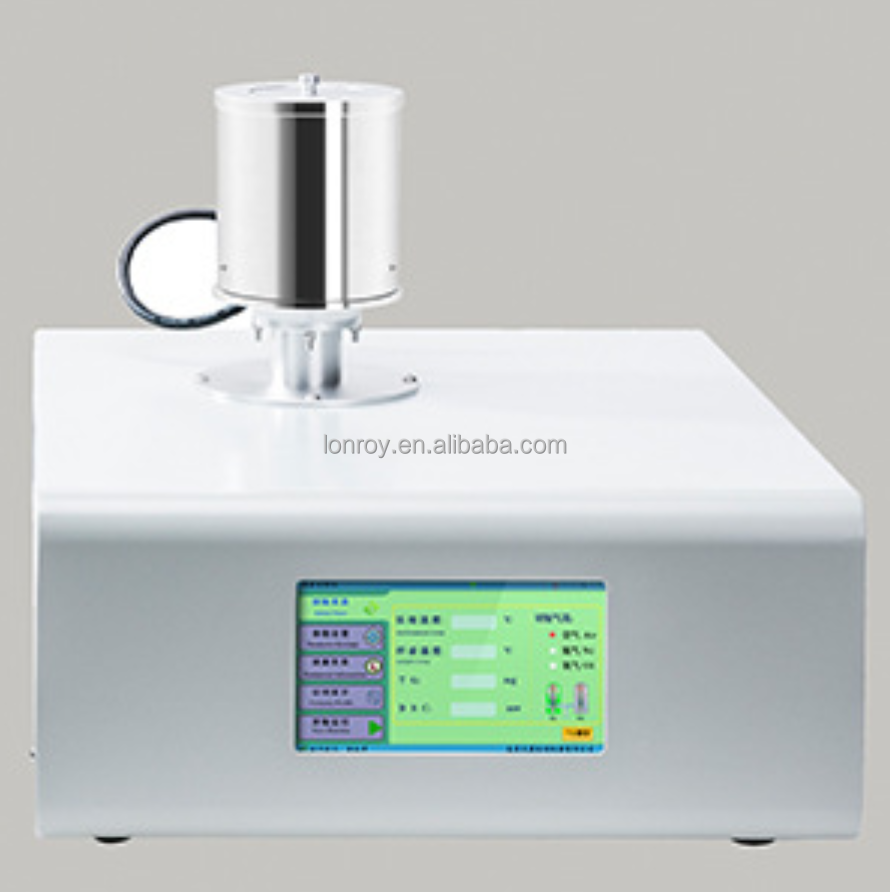

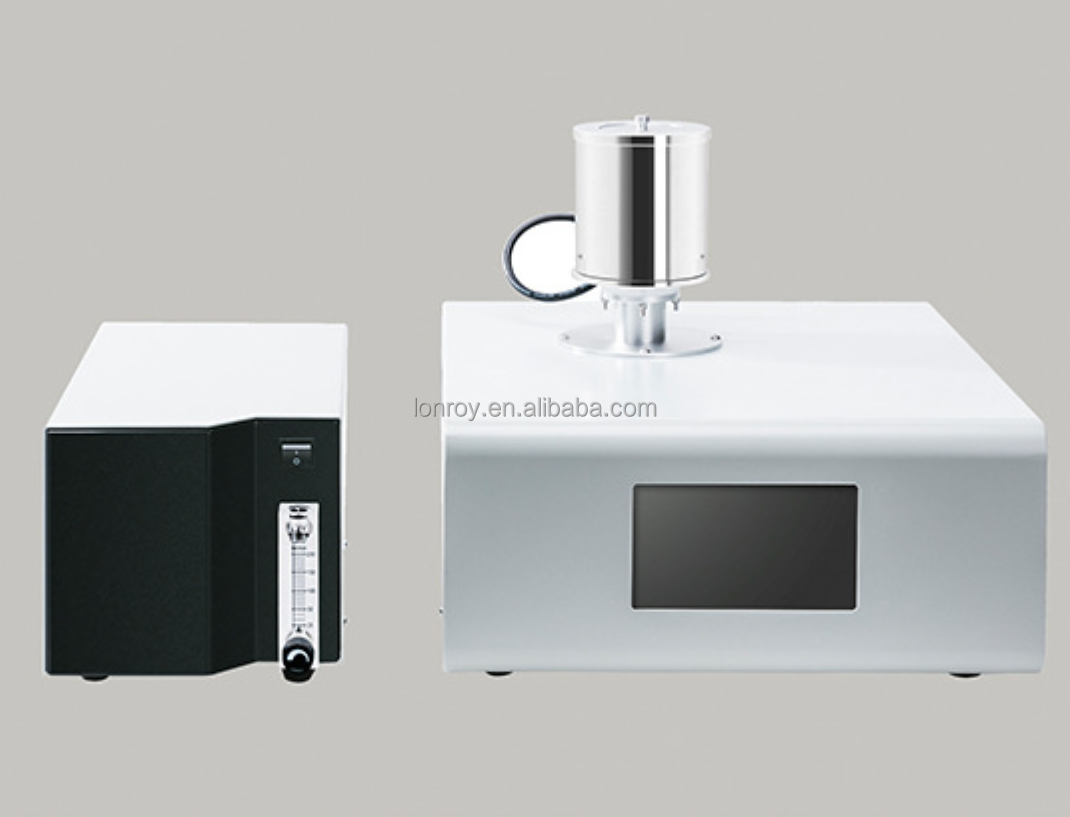

High Quality Thermogravimetry Apparatus/TGA thermo gravimetric analyzer/Thermogravimetric analysis machine

Product introduction

Thermogravimetric Analyzer (TGA/TG) is a core thermal analysis instrument widely applied in material science research and industrial quality inspection. The basic working principle is to continuously monitor and record the real-time mass change of solid and powder samples during programmed heating, constant temperature, and cooling processes. By analyzing the mass loss, residual rate, and thermal change curve of samples under different temperature conditions, users can accurately evaluate the thermal stability, thermal decomposition characteristics, component proportion, and anti-oxidation performance of various materials.

This high-precision TGA instrument is applicable to almost all organic and inorganic material industries, including plastics, rubber, coatings, , chemical catalysts, new inorganic materials, metal alloys, and composite materials. It serves three core scenarios: new product formula research and development, production process parameter optimization, and finished product batch quality control. Conventional testable material properties include thermal stability, high-temperature decomposition behavior, adsorption and desorption performance, oxidation-reduction characteristics, and quantitative content analysis of raw materials, additives, and fillers.

Adopting industrial-grade modular design, the equipment integrates high-stability micro-thermal balance, precise temperature control system, and intelligent atmosphere control system. With user-friendly touch screen operation and professional supporting analysis software, it provides stable, repeatable, and intuitive test data for enterprise laboratories, university research institutes, and third-party testing institutions, becoming the basic essential equipment for modern material thermal performance testing.

Measure and study the following properties of materials:

Thermal stability, decomposition process, adsorption and desorption, oxidation and reduction, quantitative analysis of components, additives and fillers

High Quality Thermogravimetry Apparatus/TGA thermo gravimetric analyzer/Thermogravimetric analysis machine

Structural advantages:

1. Furnace body heating adopts precious metal platinum rhodium wire double row winding system, reduce interference.

2. The tray sensor is made of precious metal platinum rhodium alloy, which has the advantages of corrosion resistance.

3. Power supply, the circulation cooling part is separated from the main engine to reduce the influence of heat and vibration on the microthermal balance.

4. The upper open cover structure is convenient to operate.It is very difficult to put samples in the upper moving furnace body, and it is easy to damage the sample bar.

5. The host machine adopts water constant temperature device to isolate the thermal influence of the heating furnace body on the chassis and micro thermal balance.

6. Furnace body can be replaced according to customer requirements

Controller and software advantages:

1. Using imported 32-bit ARM processor Cortex-M3 kernel, sampling speed, fast processing speed.

2.24-bit four-way sampling AD collects DSC signal, TG signal and temperature T signal.

3. Power supply and water circulation part, independently controlled by 8bit single chip microcomputer, so that the main engine and cooling part separate, do not interfere with each other, but they are closely connected, cooling part accept the control of the main engine.

4. USB two-way communication is adopted between the software and the instrument to fully realize remote operation. The parameter setting and operation stop of the instrument can be carried out through computer software.

5.7-inch full-color 24bit touch screen, good man-machine interface.TG calibration can be realized on the touch screen

Technical parameters:
