Terminal Section Analyzer Wire Harness Terminal Profile Tester Intelligent Lab Cable Harness Terminal Contour Testing Ma
Terminal Section Analyzer Wire Harness Terminal Profile Tester Intelligent Lab Cable Harness Terminal Contour Testing Ma
Terminal Section Analyzer Wire Harness Terminal Profile Tester Intelligent Lab Cable Harness Terminal Contour Testing Ma
Terminal Section Analyzer Wire Harness Terminal Profile Tester Intelligent Lab Cable Harness Terminal Contour Testing Ma
Terminal Section Analyzer Wire Harness Terminal Profile Tester Intelligent Lab Cable Harness Terminal Contour Testing Ma
Terminal Section Analyzer Wire Harness Terminal Profile Tester Intelligent Lab Cable Harness Terminal Contour Testing Ma
Terminal Section Analyzer Wire Harness Terminal Profile Tester Intelligent Lab Cable Harness Terminal Contour Testing Ma
Terminal Section Analyzer Wire Harness Terminal Profile Tester Intelligent Lab Cable Harness Terminal Contour Testing Ma
Terminal Section Analyzer Wire Harness Terminal Profile Tester Intelligent Lab Cable Harness Terminal Contour Testing Ma
Terminal Section Analyzer Wire Harness Terminal Profile Tester Intelligent Lab Cable Harness Terminal Contour Testing Ma
Terminal Section Analyzer Wire Harness Terminal Profile Tester Intelligent Lab Cable Harness Terminal Contour Testing Ma
Terminal Section Analyzer Wire Harness Terminal Profile Tester Intelligent Lab Cable Harness Terminal Contour Testing Ma
Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
----
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
220 V
warranty :
1 Year
MOQ :
1
Description

Terminal Section Analyzer Wire Harness Terminal Profile Tester Intelligent Lab Cable Harness Terminal Contour Testing Ma

Terminal Section Analyzer Wire Harness Terminal Profile Tester Intelligent Lab Cable Harness Terminal Contour Testing Machine

Introduction

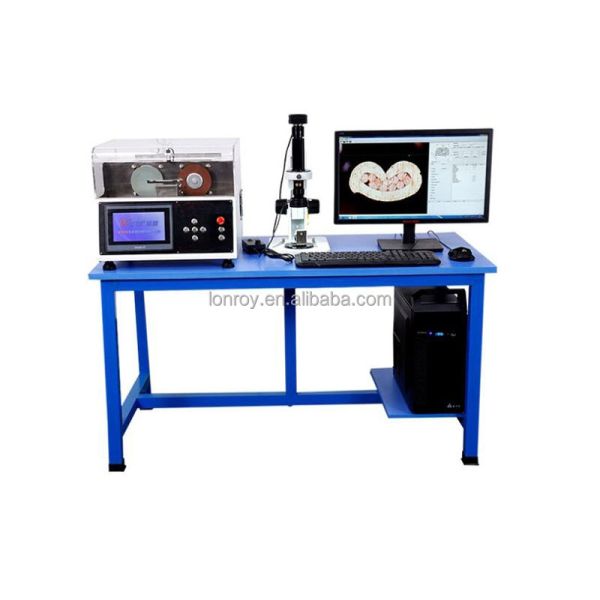

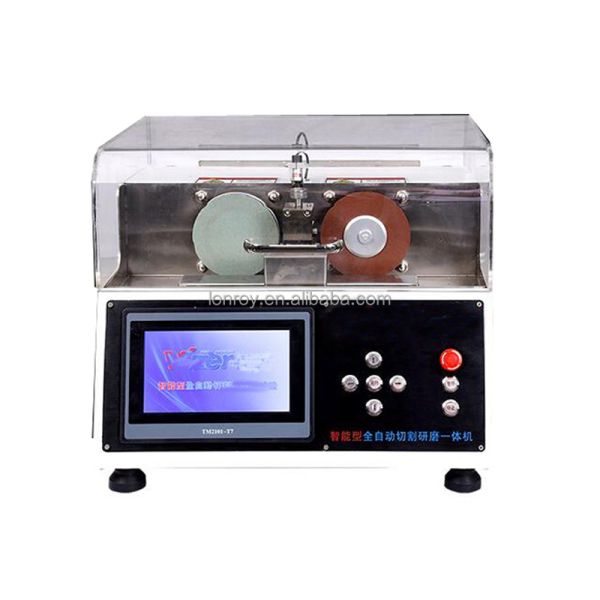

This wire harness terminal profile analyzer adopts seven-inch touch screen interface to intelligently cut and grind, ensuring the smoothness of cutting and grinding, and greatly reducing the error and time of personnel operation. Only need to input product diameter, one key cutting grinding.

Features

1. Use linear guide rail to ensure installation accuracy.

2. The motor adopts horizontal installation to ensure small swing of rotation.

3. Laser infrared counterpoint ensures fast alignment of cutting position.

4. Optional XY mobile working platform with 360 degree rotating table, convenient terminal section sampling.

5. Add drainage system, easy to clean the machine.

6. Fixture front, easy to install and adjust.

7. Trigger switch to ensure personnel safety.

8. Velcro sandpaper, quick replacement.

9. Adopt 5 million pixel industrial camera, which can collect hd dynamic pictures.

10. Built-in measurement standard analysis software, fast report export.

11. Use seven-inch touch system, intelligent cutting program

12. Up to 30 groups of programs saved

13. Add button operation and prolong service life.

Terminal Section Analyzer Wire Harness Terminal Profile Tester Intelligent Lab Cable Harness Terminal Contour Testing Machine

Technical Specification

Module/Item

Technical Parameters

1. Cutting Module

Wire diameter range: (ø 0.10mm - ø 20.00mm including terminal)

Speed: 2800 RPM

Cutting speed: automatically adjustable

Cutting wheel: φ105 x 0.5 x φ16mm

2. Polish Module

Speed: 1400 RPM

Z fine tuning range: 0.0mm to 20.0mm (automatically adjustable)

Velcro abrasive paper: Diameter 100mm 1000# 2000# 3000# (optional)

3. Corroded Part

Professional terminal section cleaning liquid

Corrosion time: 5 to 30 SEC

4. Picture Intake and Analysis

5 megapixel industrial camera

High quality, low distortion stuck lens

Standard magnification: about 36-230x (can be digitally enlarged to 500X)

Objective lens intertooth multiples: 0.7x, 1x, 2x, 3X, 4x, 4.5x

Ultra bright white LED light source adjustable control

5. Analysis and Archiving

V3.2 version of the measurement software, including compression ratio, such as enhanced measurement tools

6. Power Supply

230 VAC, 50Hz, 600 w

7. Volume and Weight

Weight: about 30 kg

Volume: 500mm (L) x 350mm (W) x 350mm (H)

8. Software Functions

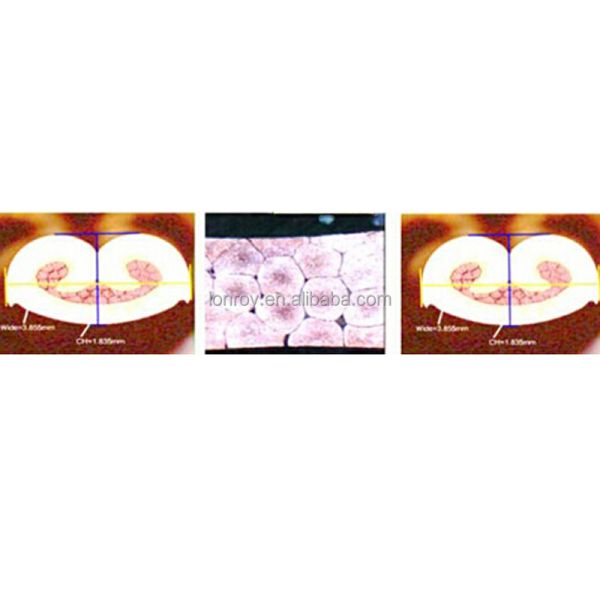

Compression ratio, number of wire harness, crimping height, crimping width, sectional area, support height, support Angle, burr width, burr height, etc

Terminal Section Analyzer Wire Harness Terminal Profile Tester Intelligent Lab Cable Harness Terminal Contour Testing MaTerminal Section Analyzer Wire Harness Terminal Profile Tester Intelligent Lab Cable Harness Terminal Contour Testing MaTerminal Section Analyzer Wire Harness Terminal Profile Tester Intelligent Lab Cable Harness Terminal Contour Testing MaTerminal Section Analyzer Wire Harness Terminal Profile Tester Intelligent Lab Cable Harness Terminal Contour Testing MaTerminal Section Analyzer Wire Harness Terminal Profile Tester Intelligent Lab Cable Harness Terminal Contour Testing Ma
