Reciprocating Friction Fatigue Tester Welding Simulator Tribometer Laboratory Reciprocatory Friction Fatigue Test Machin

Specifications

Type :

Testing Machine

Accuracy Class :

High Accuracy

Accuracy :

----

Brand Name :

LONROY

Place of Origin :

Guangdong, China

Application :

Auto Testing, Laboratory Testing, Lab Testing

customized support :

OEM, ODM, OBM

power :

---

Protection Class :

Ip56

Voltage :

220 V

warranty :

1 Year

MOQ :

Description

Reciprocating Friction Fatigue Tester Welding Simulator Tribometer Laboratory Reciprocatory Friction Fatigue Test Machine

Product Overview

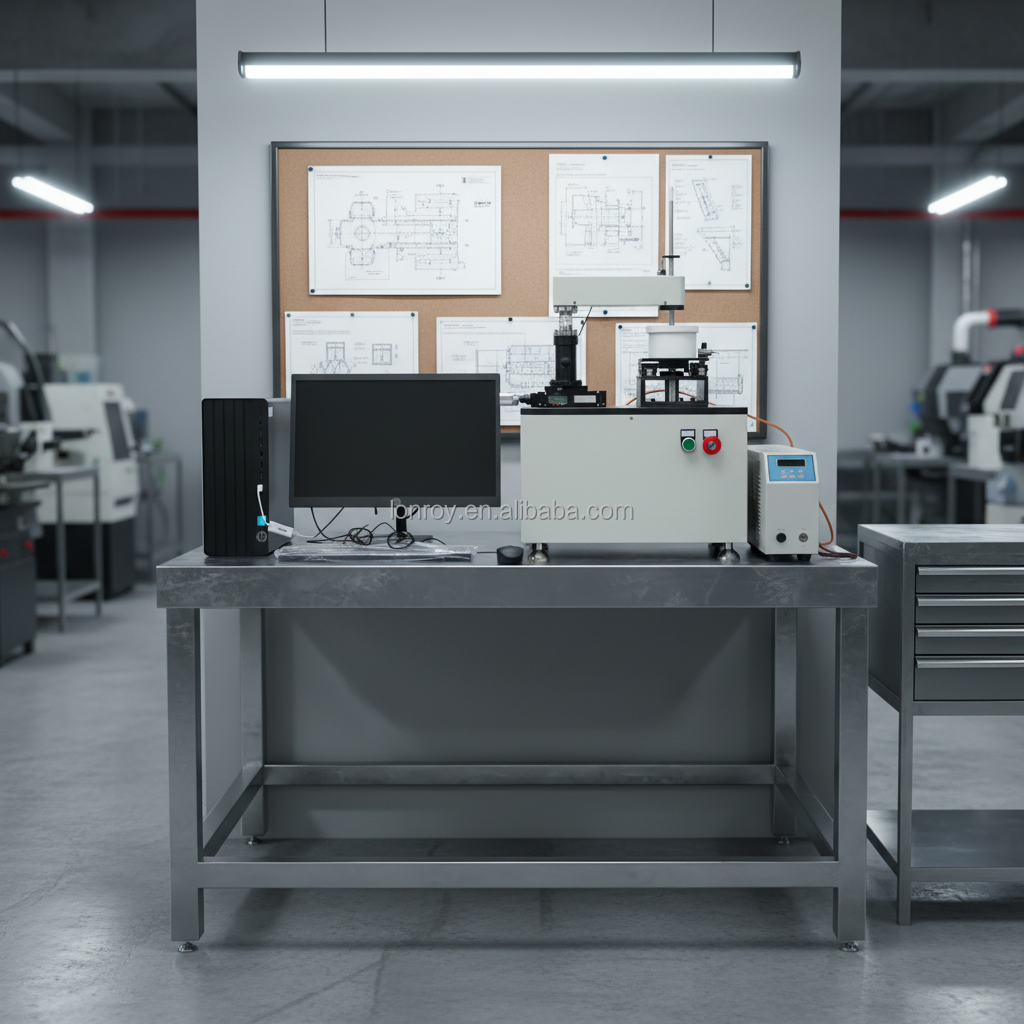

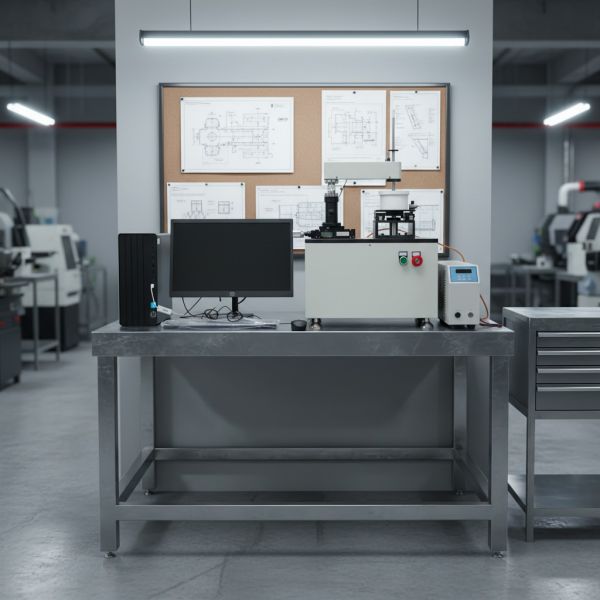

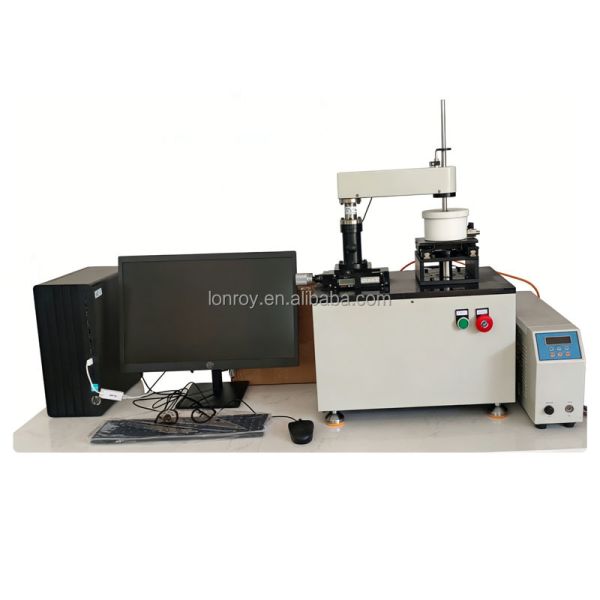

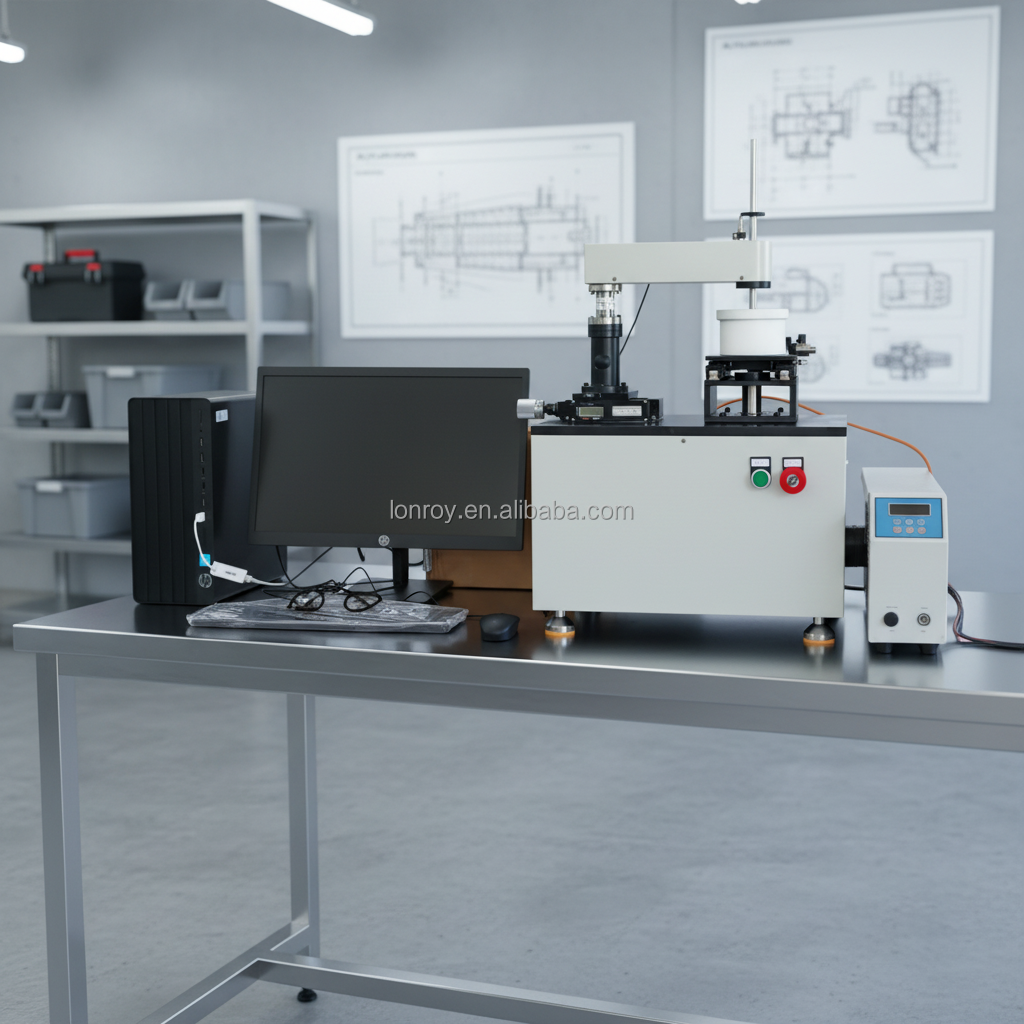

This tester is primarily used for reciprocating friction fatigue testing of materials or products. It allows for the addition of various lubricating liquids or testing under different environmental conditions to evaluate the friction fatigue performance of materials. The tester mainly consists of a reciprocating motion mechanism, a weight loading mechanism, sensors, a computer, and a measurement and acquisition system.

The equipment features a stepless speed regulation system, enabling tests under low-speed or high-speed conditions to assess the friction fatigue performance of various lubricants, metals, plastics, coatings, rubber, ceramics, and other materials or products. All parameters of the machine are controlled by a computer. It can measure friction force, calculate the friction coefficient, and collect data in real time, recording curves such as friction force-time curve and friction coefficient-time curve.

Working Environment

1. Ambient temperature range: 10°C to 35°C; relative humidity not exceeding 80%.

2. Properly installed on a stable table or platform.

3. Installed in a vibration-free environment.

4.Used with a stable power supply (110V/220V AC ±10%).

Reciprocating Friction Fatigue Tester Welding Simulator Tribometer Laboratory Reciprocatory Friction Fatigue Test Machine

Technical Specification

Parameter	Technical Specification
Reciprocating Module
Test Force Range	50g – 2000g
Loading Method	Weight loading
Maximum Reciprocating Frequency	5 Hz
Maximum Reciprocating Stroke	40 mm
Friction Force Measurement Range	0 – 50 N, Accuracy: ≥ 0.1% F.S
Friction Pair	Metal, non-metal, or others
Lifting Height	0 – 50 mm
Test Operation	Keyboard operation, microcomputer control
Data Processing	Automatic data acquisition and storage, test report output capability
Sample Size	0 – 50 mm
Friction Coefficient Display Accuracy	3 decimal places
Medium	Dry friction, water, or lubrication
Alarm Protection	Parameter over-limit alarm or automatic shutdown
Test Time Control Range	1s – 99999 min
Software Functions	Real-time display of test force, spindle speed and revolutions, test time, temperature, friction force, friction coefficient
Stop Mode	Manual / Automatic
