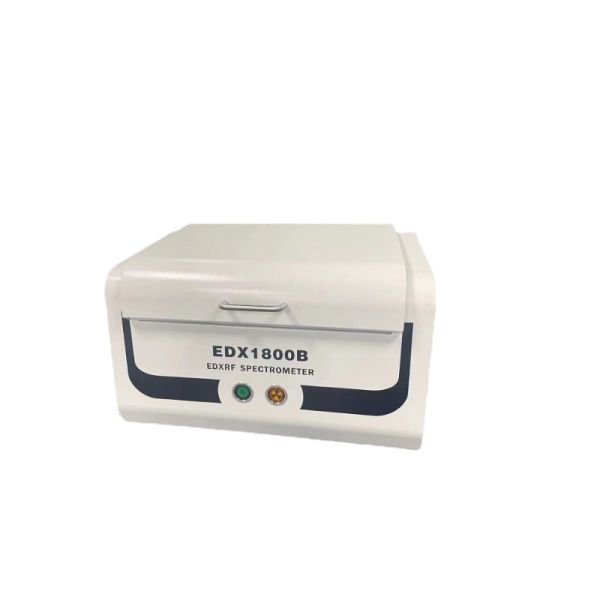

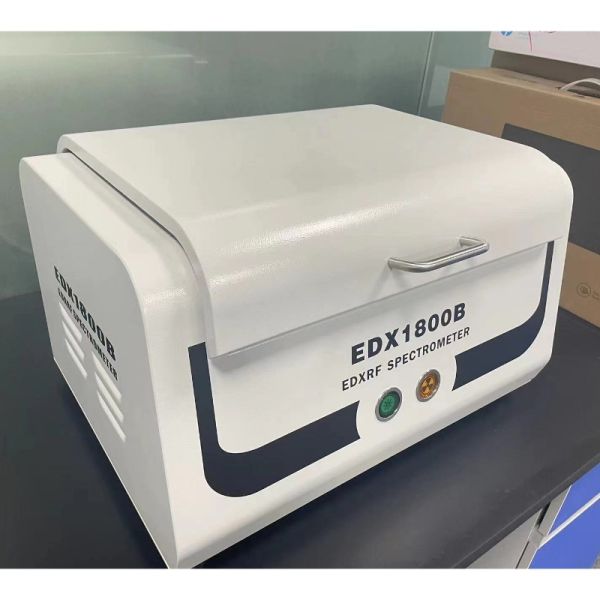

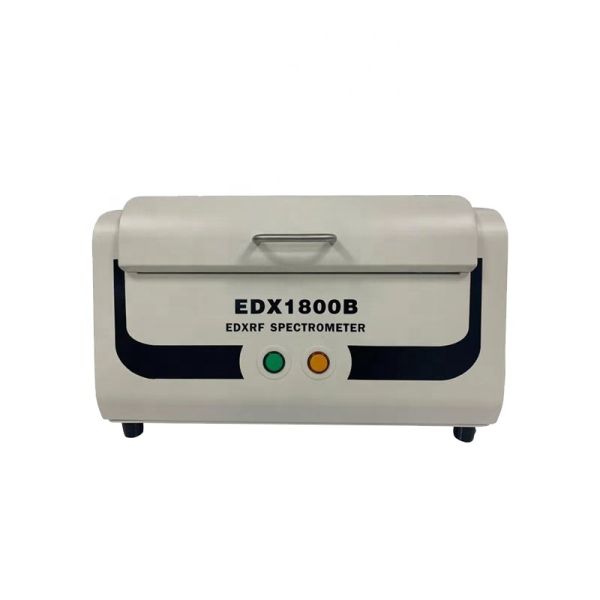

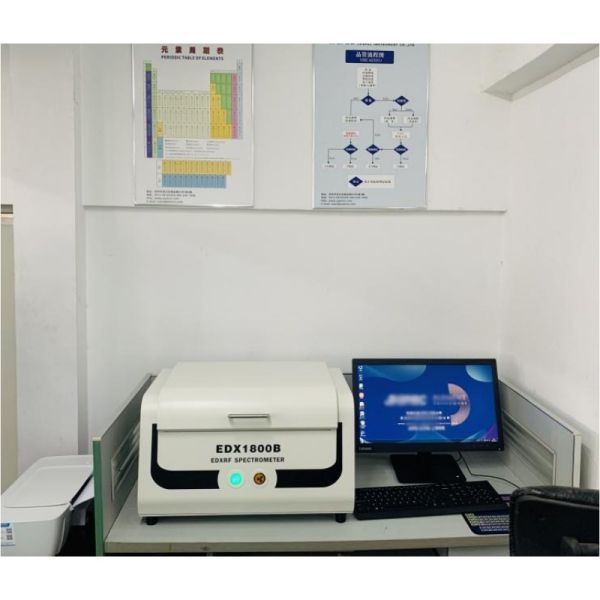

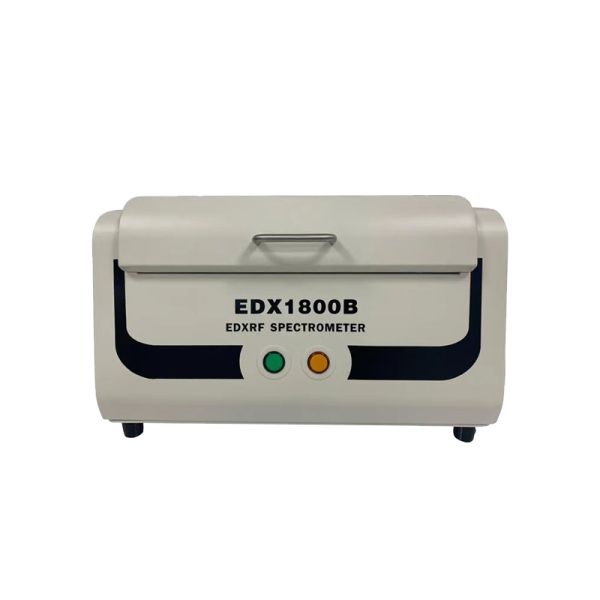

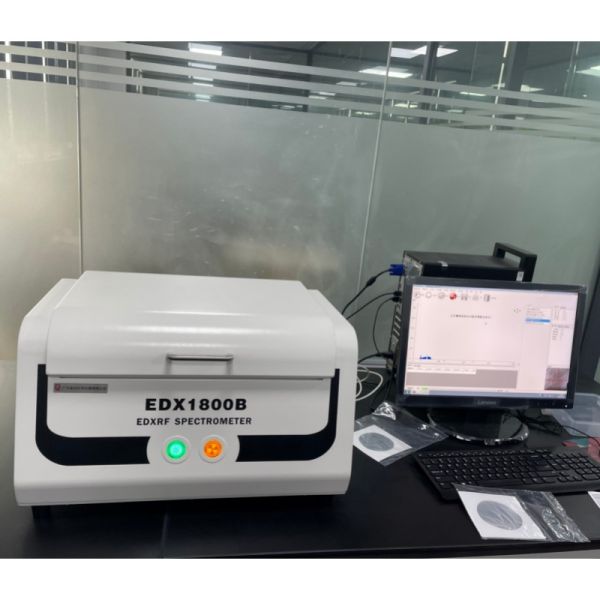

EDX1800B heavy metal analyzer/rohs metal detector/ xrf spectrometer for lead, mercury, chromium and cadmium

Applications

Products used for RoHS directive control: large household appliances, small household appliances, information technology and communication equipment, power tools, toys and other equipment

For halogen-free directive control products: products with flame retardants containing Cl, Br and other elements as raw materials

Instrument overview

EDX 1800B is a popular model in the series of products, triple ray protection system; Humanized operation interface; Comprehensive application of empirical coefficient method, basic parameter method V1.0 analysis software. Element tests range from S-U. That is, the Pb, Cd, Hg, PBB and PBDE that can control RoHS directives

Br, Cr of hexavalent chromium and Cl and Br elements in halogen-free directives. It can fully meet RoHS/WEEE/ halogen-free control requirements. Carefully designed open work curve function, especially suitable for multi-material factory process control.

Original spectrum comparison function, real-time tracking supplier material changes and timely warning, RoHS/ halogen-free and supplier control has unparalleled advantages.

EDX1800B heavy metal analyzer/rohs metal detector/ xrf spectrometer for lead, mercury, chromium and cadmium

Prodcut Descripition

1. Triple ray protection (software, hardware, maze design) to ensure the personal safety of operators and radiation damage caused by accidental operations;

2. Large sample cavity design, suitable for the detection of large samples, partially replacing the handheld XRF function;

3. The new optical path design solves the negative impact of the air optical path on the measurement of Cl element to the maximum extent, and ensures the detection limit and stability of chlorine (Cl) element;

4. The newly optimized V1.0 analysis software can automatically set the optical tube power according to the sample material, shape and size, which can not only extend the service life of the optical tube but also give full play to the detector performance and greatly improve the measurement accuracy;

5. The only open work curve calibration platform in the industry, which can tailor the best harmful substances detection and control scheme for users;

6. Integrated a series of advanced spectral processing methods, including FFT (fast Fourier transform filter), accurate background subtraction method, derivative automatic peak search and Quasi-Newton optimization algorithm;

7. The international leading XRF analysis software integrates a variety of classical analysis methods, including empirical coefficient method, basic parameter method (FP method), theoretical α coefficient method, etc., to fully ensure the accuracy of test data;

8. Customized test report output format (Excel, PDF, etc.) according to user requirements, in line with various statistical and format requirements of the factory;

9. Can provide hexavalent chromium quantitative test technology and accessories, coating thickness measurement and multi-element analysis software (users need to purchase separately);

10. Multilingual software interface is available;

11. Original spectrogram comparative analysis method, supplier material changes timely warning function.
