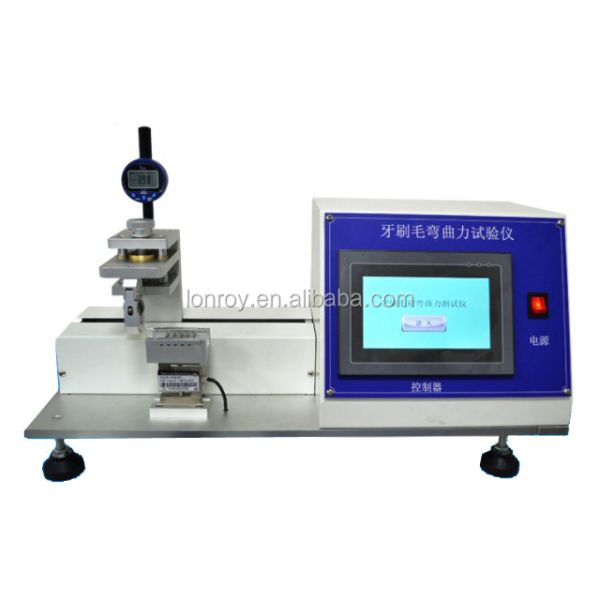

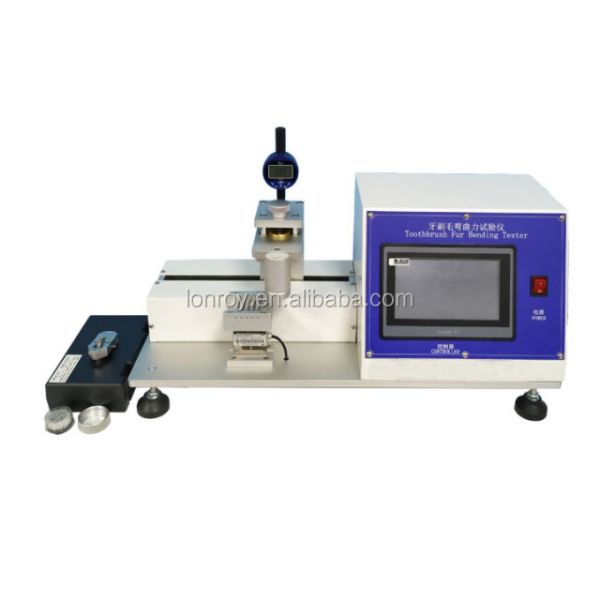

ISO 22254 Tooth Brush Bundle Bending Strength Tester/Brush Softness Tester Plastic Test
ISO 22254 Tooth Brush Bundle Bending Strength Tester/Brush Softness Tester Plastic Test
ISO 22254 Tooth Brush Bundle Bending Strength Tester/Brush Softness Tester Plastic Test
ISO 22254 Tooth Brush Bundle Bending Strength Tester/Brush Softness Tester Plastic Test
ISO 22254 Tooth Brush Bundle Bending Strength Tester/Brush Softness Tester Plastic Test
ISO 22254 Tooth Brush Bundle Bending Strength Tester/Brush Softness Tester Plastic Test
ISO 22254 Tooth Brush Bundle Bending Strength Tester/Brush Softness Tester Plastic Test
ISO 22254 Tooth Brush Bundle Bending Strength Tester/Brush Softness Tester Plastic Test
ISO 22254 Tooth Brush Bundle Bending Strength Tester/Brush Softness Tester Plastic Test
ISO 22254 Tooth Brush Bundle Bending Strength Tester/Brush Softness Tester Plastic Test
ISO 22254 Tooth Brush Bundle Bending Strength Tester/Brush Softness Tester Plastic Test
ISO 22254 Tooth Brush Bundle Bending Strength Tester/Brush Softness Tester Plastic Test
Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
±2%
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
IP57
Voltage :
220 V
warranty :
1 Year
Product name :
Tooth brush bundle bending strength tester
Model Number :
LR-625
MOQ :
1
Description

ISO 22254 Tooth Brush Bundle Bending Strength Tester/Brush Softness Tester Plastic Test

Tooth brush bundle bending strength tester/Brush softness tester
Use
The strength of bristles was evaluated by the resistance of the bristles to bending.This test is suitable for manual adult bristle toothbrush, not for special, functional toothbrush and electric toothbrush.
Tooth brush bundle bending strength tester/Brush softness tester
Product features
First measure the height of the bristles, and then measure the force generated by the bending resistance of the toothbrush bristles, and then classify the strength of the bristles according to the strength grade of the bristles.
Tooth brush bundle bending strength tester/Brush softness tester
Technical parameters

Operating speed

adjustable between 10-50 mm/s

Sensor range

50 N

Accuracy

0.05n

Stainless steel bars

3.2± 0.1mm in diameter, 5 in total

Center spacing

8.2 ± 0.1 mm

Maximum surface roughness

R=0.4 microns

Measuring range of dial indicator

0.01-25.4mm (national standard requirements)

Weight

25 kg

External dimensions

650*250*450 mm (L*W*H)

Power supply

AC 220V, 50Hz, 200w



According to the standard (please specify the test standard before the order) :

Appendix B of gb19342-2013, gb30002-2013, BS EN ISO 22254, etc
