ISO 5079 ASTM D3822 Electronic Single Fiber Strength Tester BS 4029 ISO 11566 Fabric Breaking Force Test Machine
ISO 5079 ASTM D3822 Electronic Single Fiber Strength Tester BS 4029 ISO 11566 Fabric Breaking Force Test Machine
ISO 5079 ASTM D3822 Electronic Single Fiber Strength Tester BS 4029 ISO 11566 Fabric Breaking Force Test Machine
ISO 5079 ASTM D3822 Electronic Single Fiber Strength Tester BS 4029 ISO 11566 Fabric Breaking Force Test Machine
ISO 5079 ASTM D3822 Electronic Single Fiber Strength Tester BS 4029 ISO 11566 Fabric Breaking Force Test Machine
ISO 5079 ASTM D3822 Electronic Single Fiber Strength Tester BS 4029 ISO 11566 Fabric Breaking Force Test Machine
Specifications
Payment Terms :
L/C,D/A,D/P,T/T
Model Number :
LR-Z178
Certification :
CE,ISO,ASTM,DPR,ROHS
MOQ :
1
Delivery Time :
7 work days
Price :
Negotaible
Supply Ability :
200
Packaging Details :
Wooden package
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Description
ISO 5079 ASTM D3822 Electronic Single Fiber Strength Tester
ISO 5079 ASTM D3822 Electronic Single Fiber Strength Tester ISO 11566 BS 4029 Fabric Textile Tensile Strength Test Machine
Applications

Used to determine performance indicators—such as breaking strength, breaking elongation, load at specified elongation, elongation at specified load, and creep—for various materials including single fibers, metal wires, hair, and carbon fibers.

Standards Compliance

GB/T 14337, GB/T 9997, GB/T 13835.5, ISO 5079, ISO 11566, ASTM D 3822, BS 4029, etc.

Instrument Features
  • Features an industrial touchscreen with Chinese/English menus; the interface is clear, intuitive, and easy to operate.
  • Utilizes a 32-bit Cortex-M3 microprocessor, offering strong anti-interference capabilities and rapid data processing.
  • Employs high-speed A/D conversion with a high sampling rate, ensuring high testing accuracy.
  • Automatically displays, analyzes, and saves test data; includes a built-in thermal printer for direct report printing.
  • Uses pneumatic clamping for uniform grip; clamping pressure is adjustable to prevent specimen slippage or damage, ensuring ease of use.
  • The drive mechanism incorporates ball screws, synchronous belts, and synchronous pulleys, ensuring stable operation, high precision, and low noise.
  • Supports online operation with professional PC software.

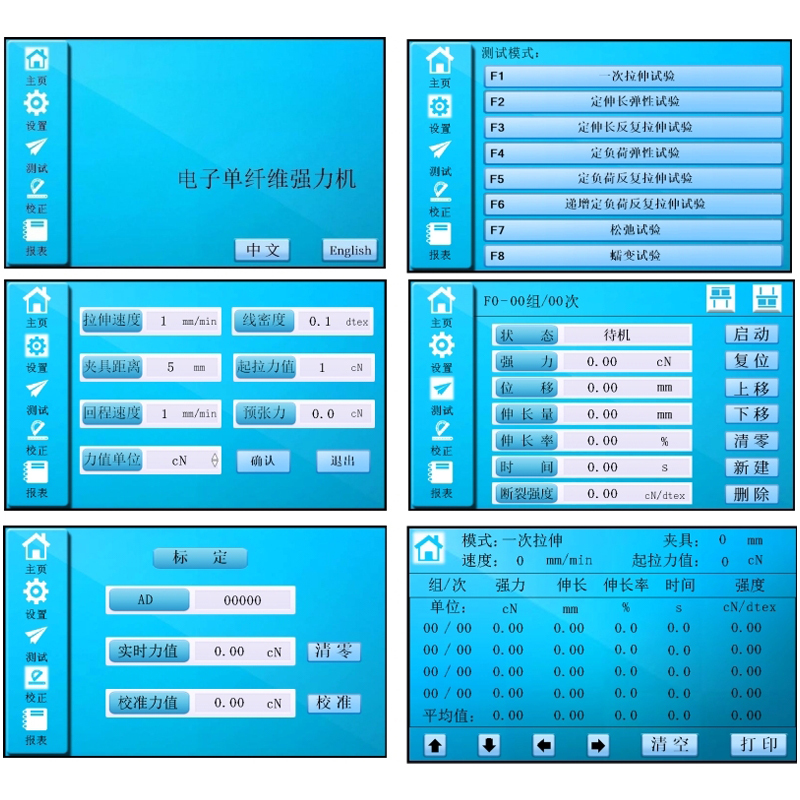

Touchscreen Interface
ISO 5079 ASTM D3822 Electronic Single Fiber Strength Tester BS 4029 ISO 11566 Fabric Breaking Force Test Machine

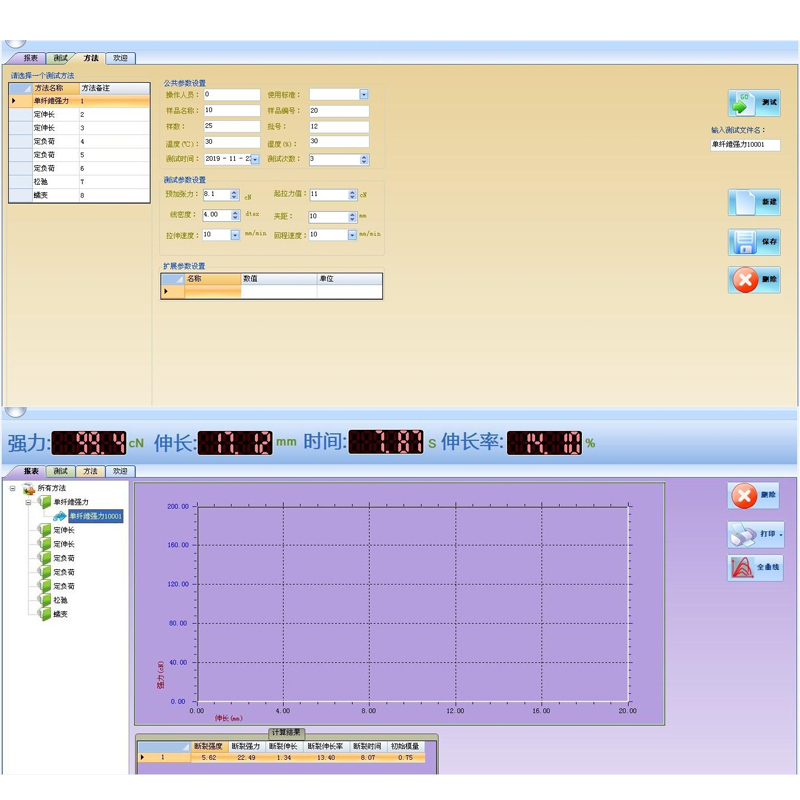

Computer Software User Interface
ISO 5079 ASTM D3822 Electronic Single Fiber Strength Tester BS 4029 ISO 11566 Fabric Breaking Force Test Machine
Technical Specifications
Measuring Range 1000cN; Division value: 0.01cN
Force Measurement Accuracy ≤±0.2%F*S
Speed Range 1～200mm/min, freely settable within range
Effective Stroke ≤140mm
Elongation Resolution 0.01mm
Gauge Length 5-50mm
Gauge Length Positioning Digital setting, automatic positioning
Unit Conversion cN, mlbf, gf
Overall Dimension 500*400*600mm
Weight 25kg
Power Supply AC220V 50Hz, 120W
