Specifications
Operating Mode :
Constant Power, Constant Voltage, Constant Current Power Supply, Dynamic Mode
Display Type :
LCD Display
MOQ :
1
Place of Origin :
Guangdong, China
Accuracy :
± 0.5%
connection interface :
HDMI, GPIB, RS-232, RS-485, USB, SCPI, Ethernet Networking Equipment
Brand Name :
LONROY
Maximum Input Current :
40A
Type :
DC Electronic Load
Description
Products Description
DC Motor Factory Test System Direct Current Electromotor End-of-Line Tester Synchronous Machine Safety Measuring Testing Bench

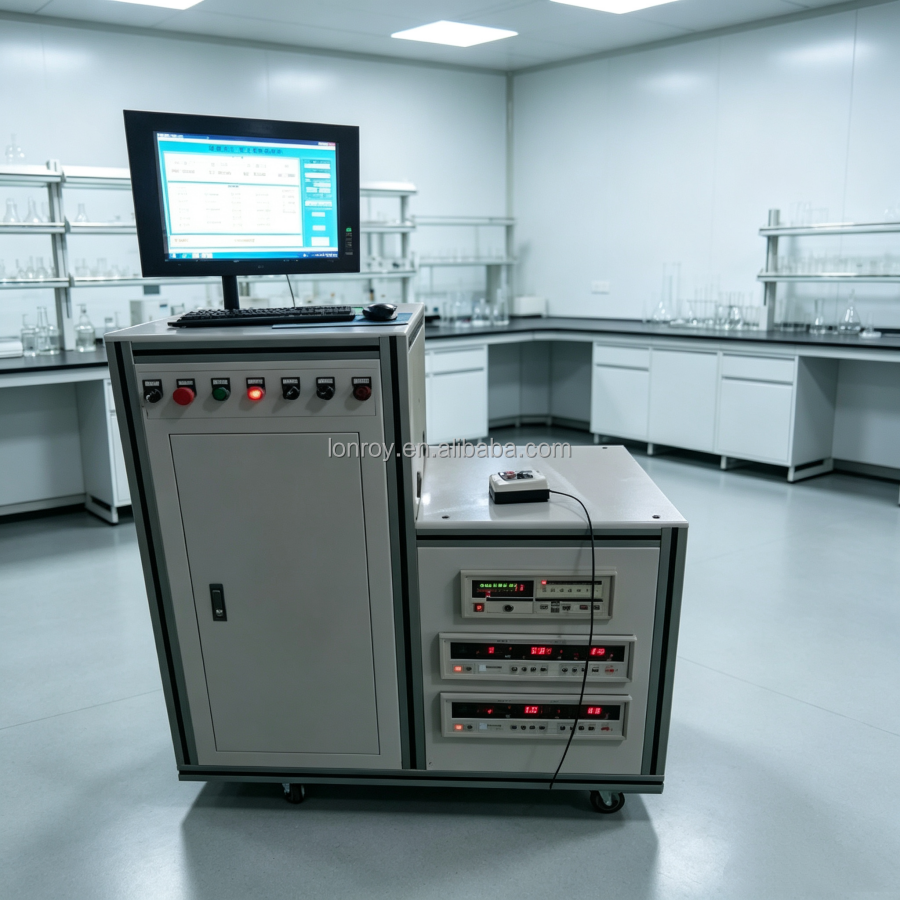

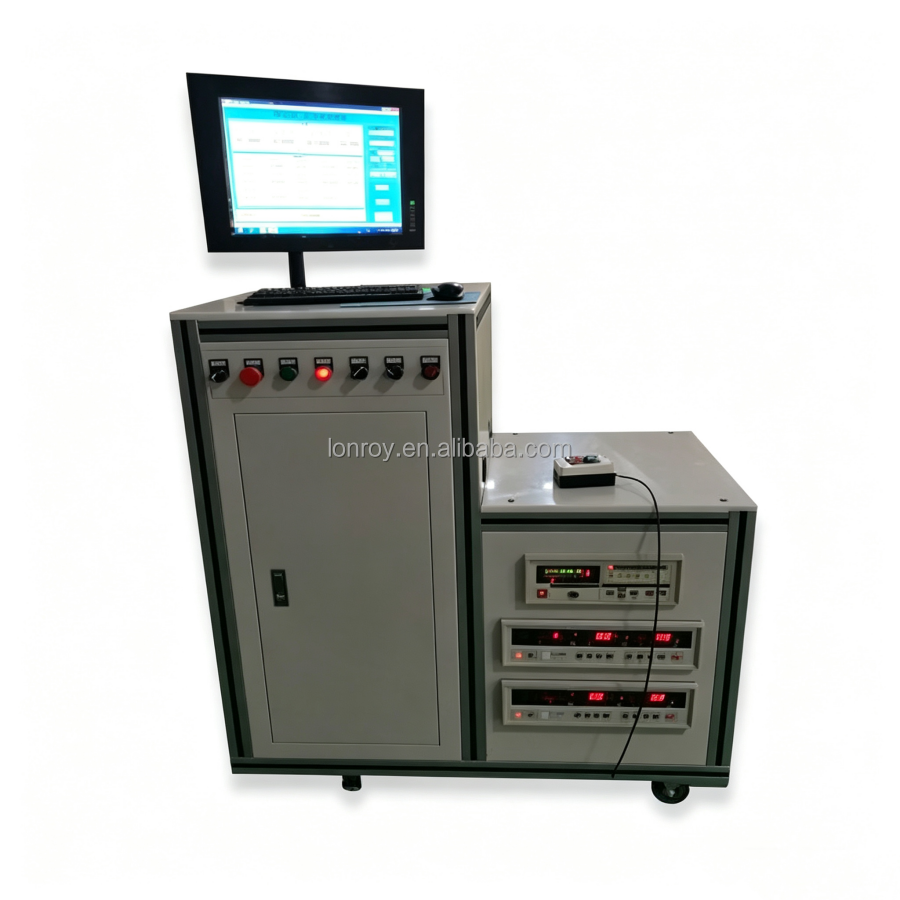

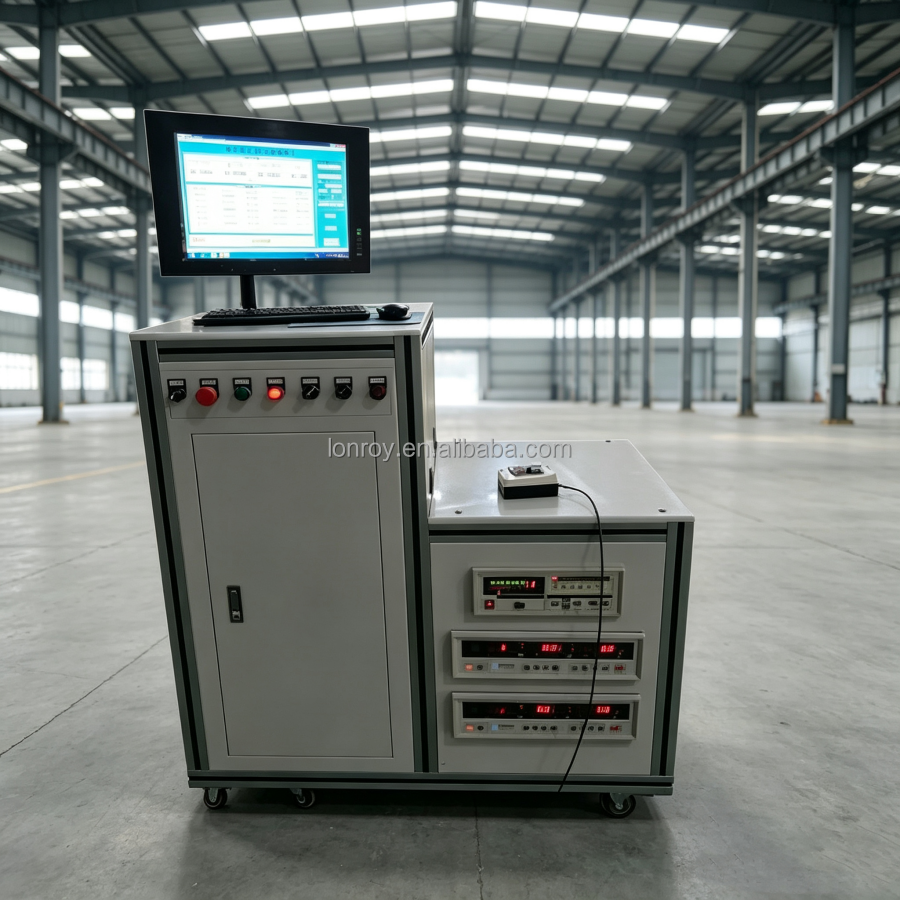

Product Overview The DC Motor Factory Test System enables the automatic, in-line testing of factory acceptance parameters—such as safety performance, no-load performance, and locked-rotor performance—for a wide range of motor types, including DC motors, single-phase motors, three-phase asynchronous motors, synchronous motors, stepper motors, and micro-motors. It provides a one-stop solution for testing all required parameters.
DC Motor Factory Test System Direct Current Electromotor End-of-Line Tester Synchronous Machine Safety Measuring Testing Bench
Key Features 1. Meets all testing requirements for motor factory acceptance; features automation, high precision, and high speed, significantly improving production efficiency. 2. Utilizes a computerized testing method for inter-turn insulation; standard curves are entered once and stored for long-term use. 3. Employs the starting method to test locked-rotor current and power. 4. Dual-station measurement for improved testing efficiency. 5. User-friendly interface for easy operation; includes alarm, data storage, statistical analysis, and printing functions. 6. Supports manual and automatic testing as well as human-machine interaction; suitable for applications such as rapid testing on production lines.
DC Motor Factory Test System Direct Current Electromotor End-of-Line Tester Synchronous Machine Safety Measuring Testing Bench
DC Motor Factory Test System Direct Current Electromotor End-of-Line Tester Synchronous Machine Safety Measuring Testing Bench
DC Motor Factory Test System Direct Current Electromotor End-of-Line Tester Synchronous Machine Safety Measuring Testing Bench
DC Motor Factory Test System Direct Current Electromotor End-of-Line Tester Synchronous Machine Safety Measuring Testing Bench
DC Motor Factory Test System Direct Current Electromotor End-of-Line Tester Synchronous Machine Safety Measuring Testing Bench
Specification
Test Items
Item
Specification
Withstand Voltage Test
Test Voltage: 0–3000V (Customizable To 5000V); Leakage Current: 0–20mA (Customizable To 100mA Or 200mA); Accuracy: ±(3% Of Setting
+ 5 Digits)
Insulation Resistance
Test Voltage: DC 500V, 1000V; Test Range: 0–500MΩ; Accuracy: ±(3% Of Setting + 3V)
Inter-turn Insulation
Peak Voltage: 0–3000V (Customizable To 5000V)
DC Resistance
Test Range: 0–20kΩ; Accuracy: 0.5%
Locked-rotor Current (Power)
Test Voltage: 0–300–500V; Current: 0–5–40A; Accuracy: 0.5%
No-load Current (Power)
Test Voltage: 0–300–500V; Current: 0–5–40A; Accuracy: 0.5%
