Specifications
Relative humidity :
/
type :
Spring Tension Compression Testing Machine
Accuracy :
High Presion
Place of Origin :
Guangdong, China
size :
450 *380 *750mm
material :
Metal
Brand Name :
LONROY
MOQ :
1
warranty :
1 Year
customized support :
OEM, ODM, OBM
Price :
$1,000
Description
Products Description
Fully Automatic Microcomputer-Controlled Spring Tension Compression Testing Machine Stiffness Detector Force Displacement Tester

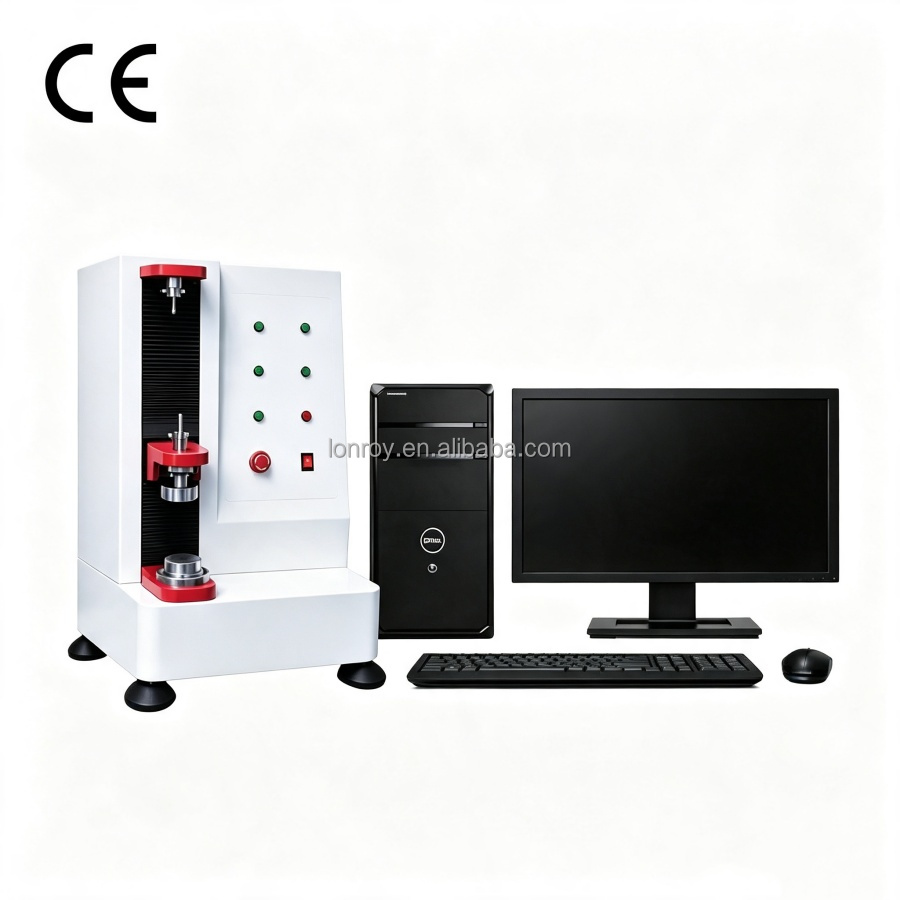

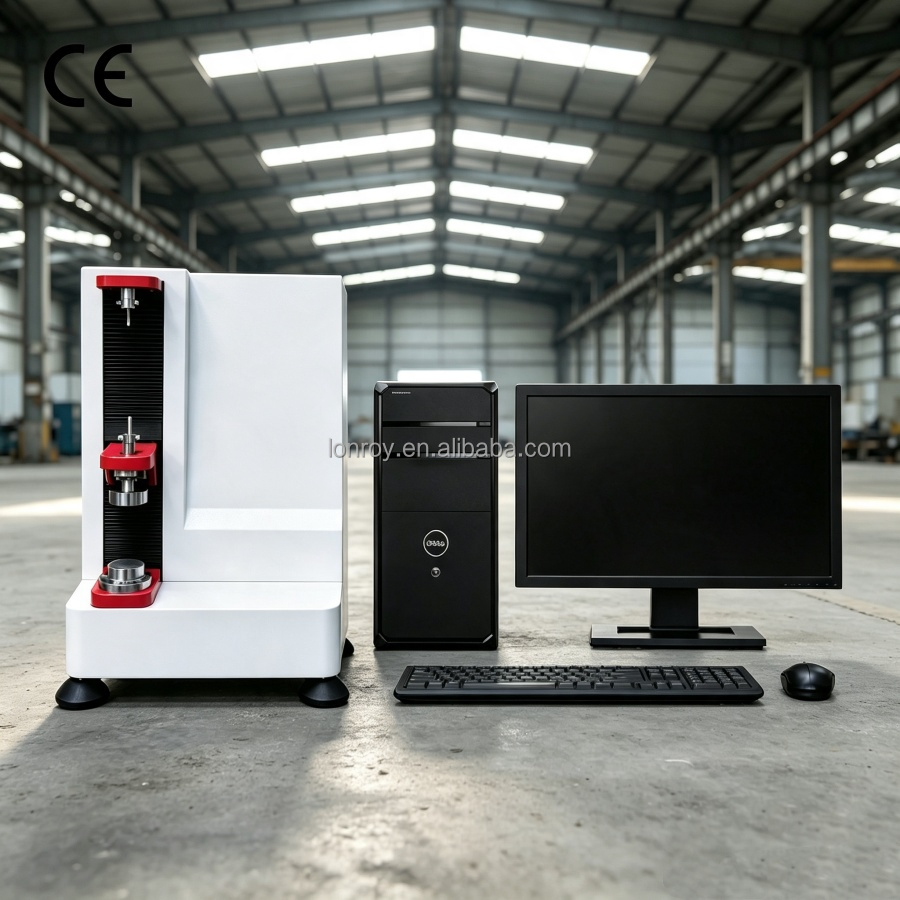

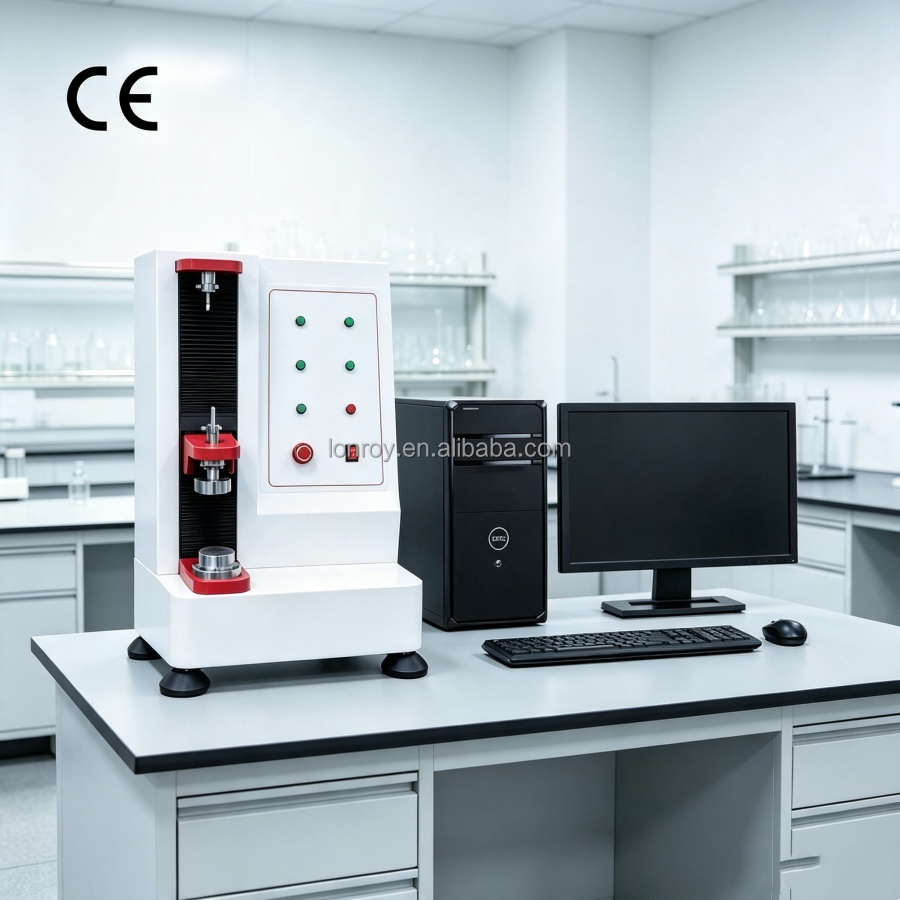

Automatic Loading Equipment Overview This machine features a vertical structure with a base constructed from two thickened steel plates. The crosshead utilizes a ball screw and linear guide rail system for vertical movement, enhancing torque transmission efficiency while ensuring smooth, stable operation. It is powered by an imported servo motor, characterized by rapid response, high control precision, and quiet, smooth performance. Controlled by dedicated PC software that handles both operation and data analysis, the machine offers comprehensive functionality. It enables precise testing and analysis of parameters—such as tensile force, compressive force, displacement, and stiffness—for various precision springs, including cylindrical, disc, conical, snap-ring, leaf, and custom-shaped springs.
Fully Automatic Microcomputer-Controlled Spring Tension Compression Testing Machine Stiffness Detector Force Displacement Tester
Test Parameters ① Spring tensile force ② Spring compressive force ③ Spring residual height ④ Spring deformation ⑤ Spring stiffness

Fully Automatic Microcomputer-Controlled Spring Tension Compression Testing Machine Stiffness Detector Force Displacement Tester
Fully Automatic Microcomputer-Controlled Spring Tension Compression Testing Machine Stiffness Detector Force Displacement Tester
Fully Automatic Microcomputer-Controlled Spring Tension Compression Testing Machine Stiffness Detector Force Displacement Tester
Fully Automatic Microcomputer-Controlled Spring Tension Compression Testing Machine Stiffness Detector Force Displacement Tester
Fully Automatic Microcomputer-Controlled Spring Tension Compression Testing Machine Stiffness Detector Force Displacement Tester
Specification
Main Technical Specifications
Item
Specification
Model
LR-AD104
Load Cell Capacity
Options: 1kg, 2kg, 5kg, 10kg, 20kg, 50kg, 100kg, 200kg
Effective Force Measurement Range
0.1–100% FS (Full Scale)
Force Measurement Error
≤±0.3%
Force Repeatability Error
≤±0.2%
Displacement Resolution
0.1μm
Displacement Error
±0.01mm
Tensile Space
200mm
Compression Space
200mm
Platen Diameter
60mm
Platen Parallelism
≤0.05mm
Speed Range
0.01–500mm/min
Drive Mechanism
Servo motor + ball screw + linear guide rail
Control Method
PC software control
Dimensions
450 × 380 × 750mm
Weight
Approx. 100kg
Power Supply
AC 220V, 400W, 50Hz
Our Advantages
