Description

Vibration Compaction Molding Machine Stabilized Material Vibratory Specimen Forming Equipment Road Construction Test Compactor

Product Overview

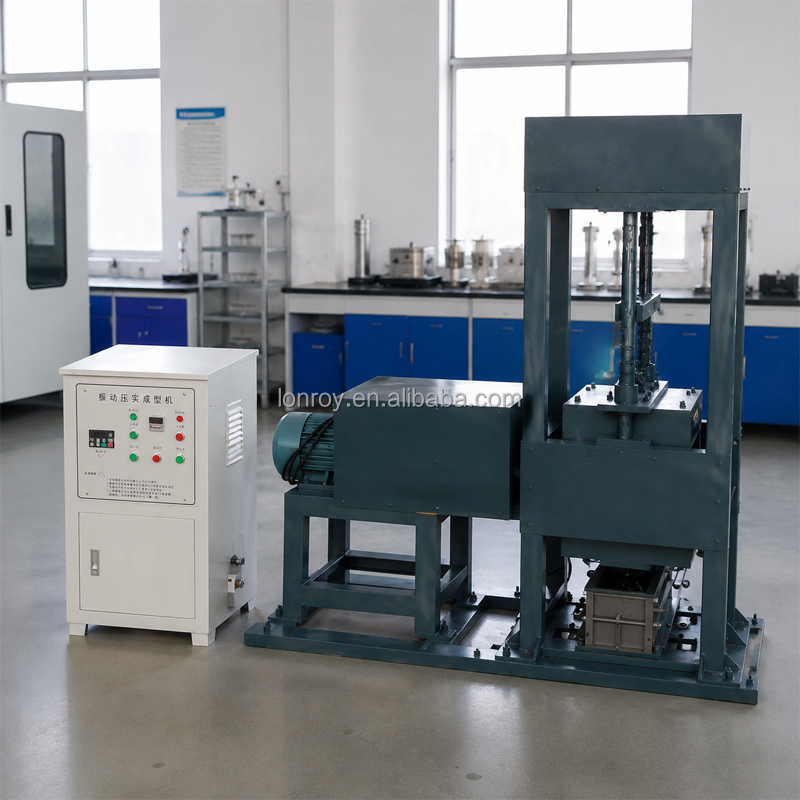

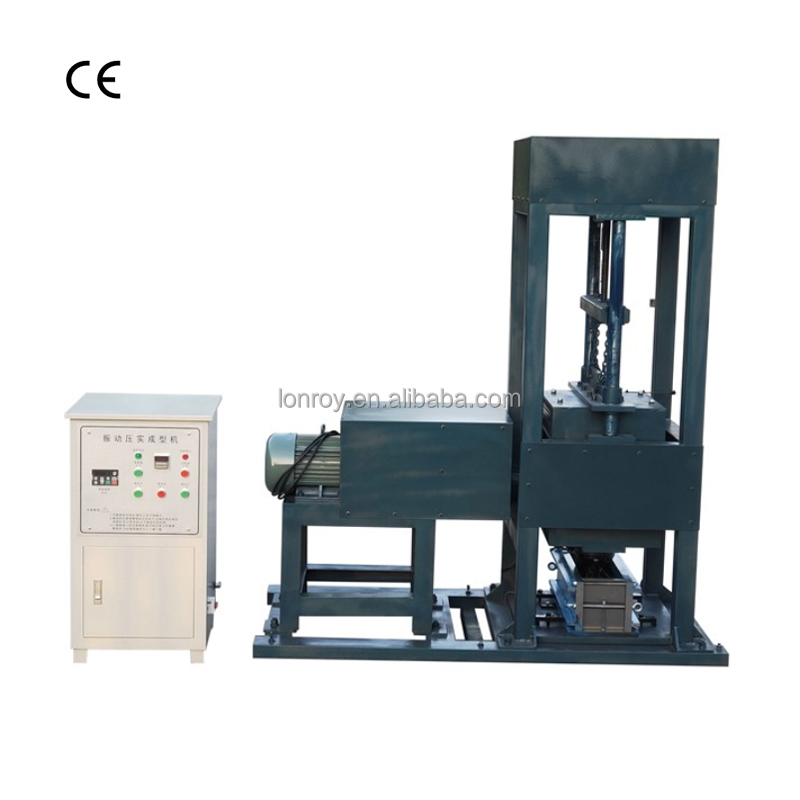

The Vibratory Compaction Molding Machine is specialized equipment designed and manufactured to meet the technical requirements for specimen preparation—specifically using the vibration method for semi-rigid base course materials—as outlined in the Test Methods of Materials Stabilized with Inorganic Binders for Highway Engineering (JTG E51-2009). It is used to fabricate various specimens from inorganic binder-stabilized granular materials, including cylindrical specimens (for testing unconfined compressive strength, indirect tensile strength, and compressive resilient modulus) and beam specimens (for testing thermal shrinkage coefficients, drying shrinkage coefficients, flexural strength, and flexural resilient modulus).

Vibration Compaction Molding Machine Stabilized Material Vibratory Specimen Forming Equipment Road Construction Test Compactor

Technical Parameters

Static pressure

1900 N (adjustable)

Excitation force

6800–6900 N (adjustable)

Vibration frequency

28–30 Hz (adjustable)

Vibration time

90–120 s (for maximum dry density); 70–90 s (for specimen molding)

Cylindrical specimen molds

Steel molds

Inner diameter 152 mm, height 170 mm, wall thickness 10 mm

Inner diameter 150 mm, height 230 mm, wall thickness 10 mm

Steel mold collar

Inner diameter 152 mm, height 50 mm, wall thickness 10 mm

Overall dimensions

Length × Width × Height 1760 × 760 × 1750 (mm)

Machine weight

900 kg

Power supply

AC 380 V (three-phase four-wire system with neutral wire)
