AATCC 195 Textiles Moisture Management Test Machine Fabrics Moisture Analyzer Clothing Liquid Transport Moisture Content Tester
AATCC 195 Textiles Moisture Management Test Machine Fabrics Moisture Analyzer Clothing Liquid Transport Moisture Content Tester
AATCC 195 Textiles Moisture Management Test Machine Fabrics Moisture Analyzer Clothing Liquid Transport Moisture Content Tester
AATCC 195 Textiles Moisture Management Test Machine Fabrics Moisture Analyzer Clothing Liquid Transport Moisture Content Tester
AATCC 195 Textiles Moisture Management Test Machine Fabrics Moisture Analyzer Clothing Liquid Transport Moisture Content Tester
AATCC 195 Textiles Moisture Management Test Machine Fabrics Moisture Analyzer Clothing Liquid Transport Moisture Content Tester
AATCC 195 Textiles Moisture Management Test Machine Fabrics Moisture Analyzer Clothing Liquid Transport Moisture Content Tester
AATCC 195 Textiles Moisture Management Test Machine Fabrics Moisture Analyzer Clothing Liquid Transport Moisture Content Tester
AATCC 195 Textiles Moisture Management Test Machine Fabrics Moisture Analyzer Clothing Liquid Transport Moisture Content Tester
AATCC 195 Textiles Moisture Management Test Machine Fabrics Moisture Analyzer Clothing Liquid Transport Moisture Content Tester
AATCC 195 Textiles Moisture Management Test Machine Fabrics Moisture Analyzer Clothing Liquid Transport Moisture Content Tester
AATCC 195 Textiles Moisture Management Test Machine Fabrics Moisture Analyzer Clothing Liquid Transport Moisture Content Tester
Specifications
Application :
Auto Testing, Lab Testing, Laboratory Testing
warranty :
1 Year
Place of Origin :
Guangdong, China
Protection Class :
IP57
Weight :
45 Kg
Brand Name :
LONROY
Accuracy :
±0.5%
Voltage :
220 V, Other
customized support :
OEM, ODM, OBM, Software Reengineering
Type :
Testing Machine
power :
/
MOQ :
1
Accuracy Class :
High Accuracy
Description

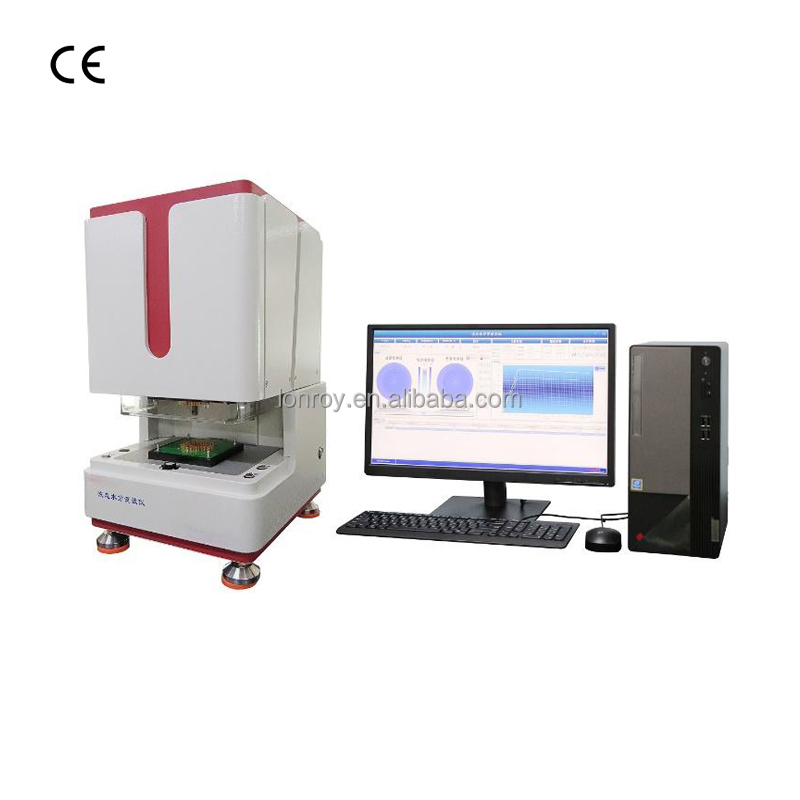

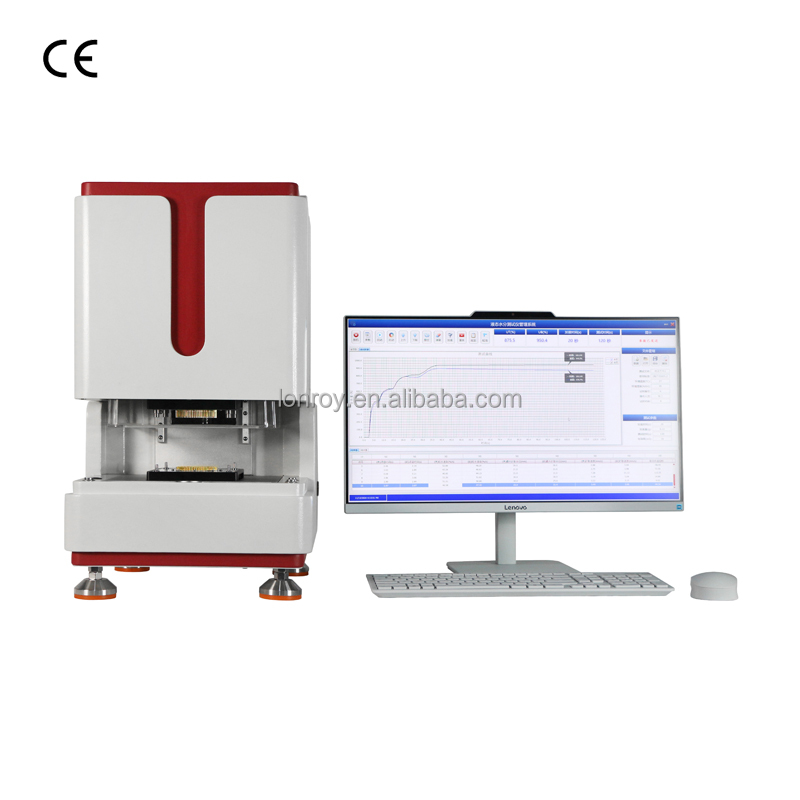

AATCC 195 Textiles Moisture Management Test Machine Fabrics Moisture Analyzer Clothing Liquid Transport Moisture Content Tester

Usage

Used to measure the dynamic liquid transport properties of textiles such as knitted, woven fabrics, and nonwoven textile fabric.

Testing Standard

AATCC 195, GB/T 21655.2

Salient Feathers

1.Computer software control, real-time display of moisture dynamics for easy observation.

2.High quality peristaltic pump, accurately transmitting the amount of liquid added, capable of calibration and fine adjustment of the amount of liquid added.

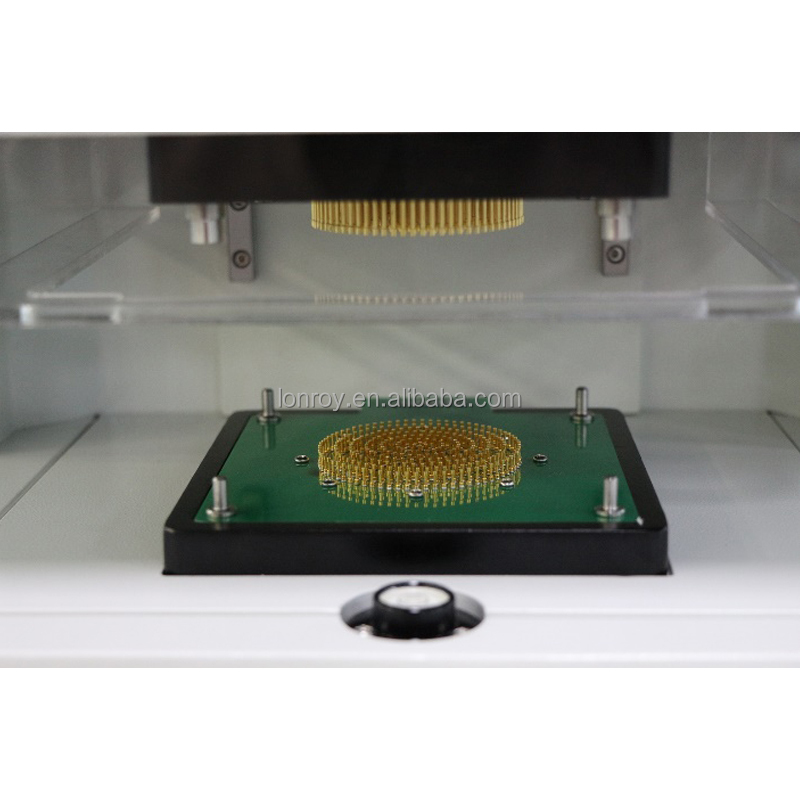

3.The instrument adopts a silent rotation system to smoothly lower the pressure block and accurately locate it.

4.The computer software has powerful functions, such as testing soaking time, expanding radius, diffusion speed, and one-way transmission ability.

5.Automated process, one click start can complete the entire testing step and automatically return to the calculation results.

6.Separate liquid addition function to prevent air or blockage in the pipeline from affecting the test results.

7.Test multiple probes on the electrode disc, ensuring that the positioning holes are concentric from top to bottom.

8.Transparent protective cover for easy observation of the testing process.

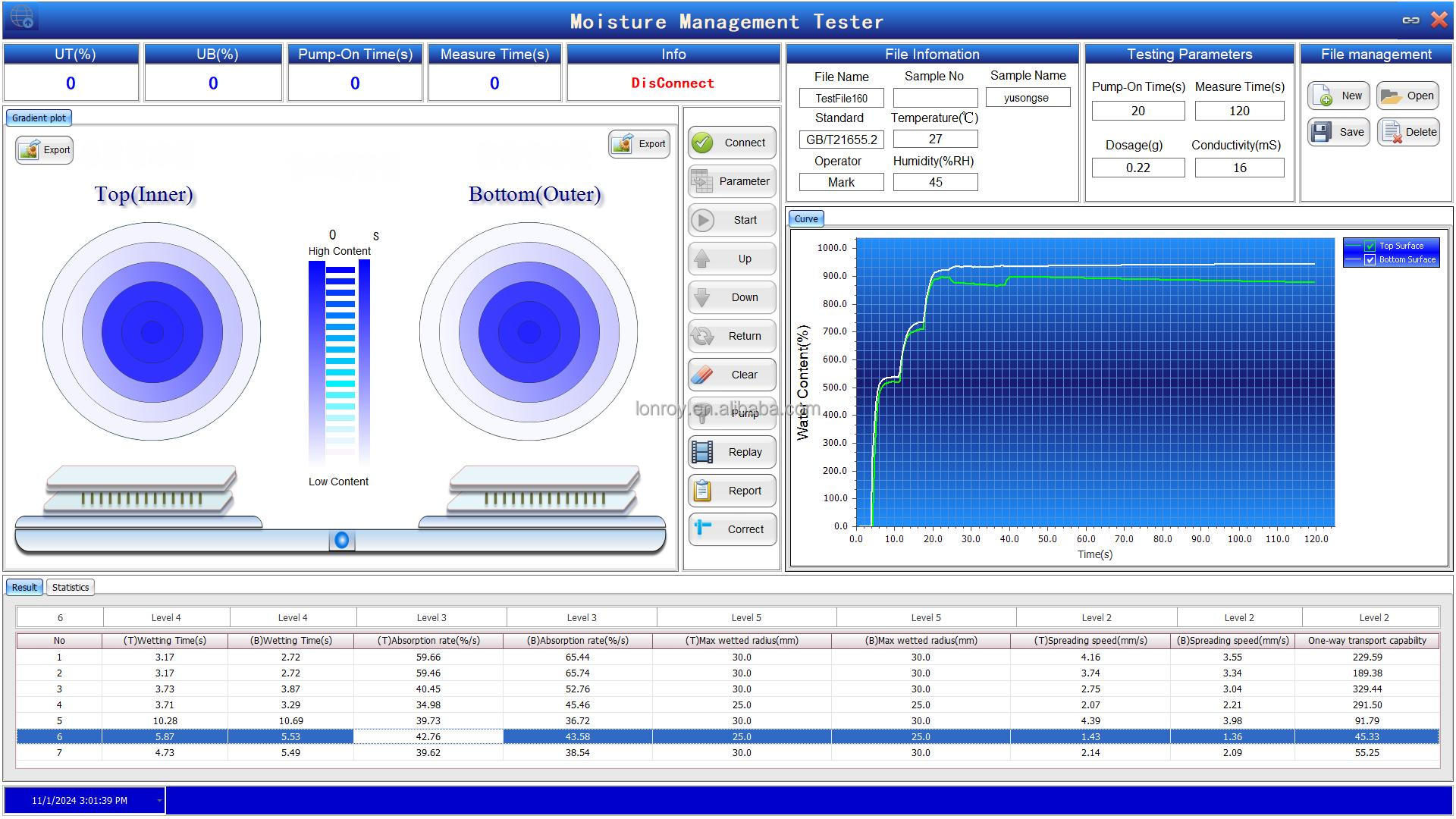

Software interface

AATCC 195 Textiles Moisture Management Test Machine Fabrics Moisture Analyzer Clothing Liquid Transport Moisture Content Tester

AATCC 195 Textiles Moisture Management Test Machine Fabrics Moisture Analyzer Clothing Liquid Transport Moisture Content Tester

Technical Parameters

Interface

USB

Test pressure

1000g

Operation Temp & R. H.

18- 40℃, 20-80%RH

Pumping on time

20s

Test fluid delivery capacity

0.2g ± 0.01g (adjustable)

Test solution

conductivity 16mS ± 0.2mS

Dimensions

340 x 400 x 580 mm

Power supply

220V,50Hz or 110V,60Hz

Weight

45 Kg

AATCC 195 Textiles Moisture Management Test Machine Fabrics Moisture Analyzer Clothing Liquid Transport Moisture Content TesterAATCC 195 Textiles Moisture Management Test Machine Fabrics Moisture Analyzer Clothing Liquid Transport Moisture Content TesterAATCC 195 Textiles Moisture Management Test Machine Fabrics Moisture Analyzer Clothing Liquid Transport Moisture Content TesterAATCC 195 Textiles Moisture Management Test Machine Fabrics Moisture Analyzer Clothing Liquid Transport Moisture Content TesterAATCC 195 Textiles Moisture Management Test Machine Fabrics Moisture Analyzer Clothing Liquid Transport Moisture Content Tester
