Specifications
Type :
Tensile Compressive Fatigue Testing Machine
Place of Origin :
Guangdong, China
Platens Size :
/
Resolution :
/
Model Number :
LR-AD108
MOQ :
1
Input Voltage :
220 V
Brand Name :
LONROY
Description
Products Description
ASTMD7615 Electronic Tensile Compressive Fatigue Testing Machine Tension Compression Endurance Tester Push-Pull Life Analyzer

Standards Compliance ASTM D7615, GB/T 3075 (Metallic materials – Axial force-controlled fatigue testing)
ASTMD7615 Electronic Tensile Compressive Fatigue Testing Machine Tension Compression Endurance Tester Push-Pull Life Analyzer

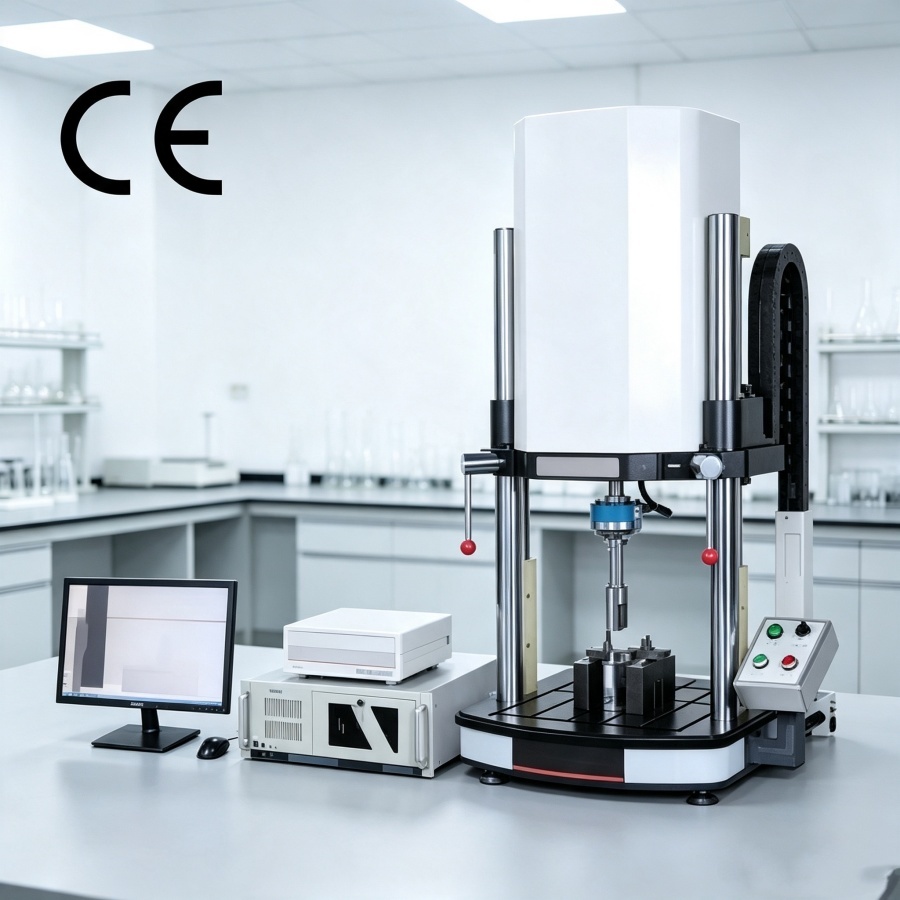

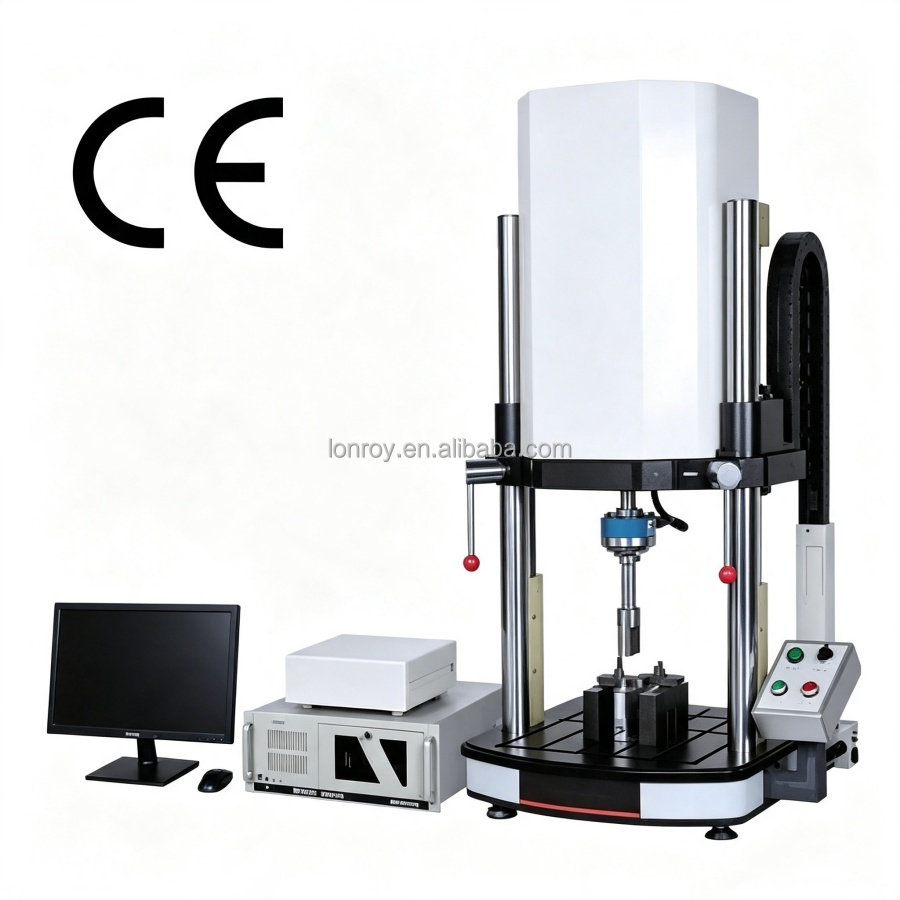

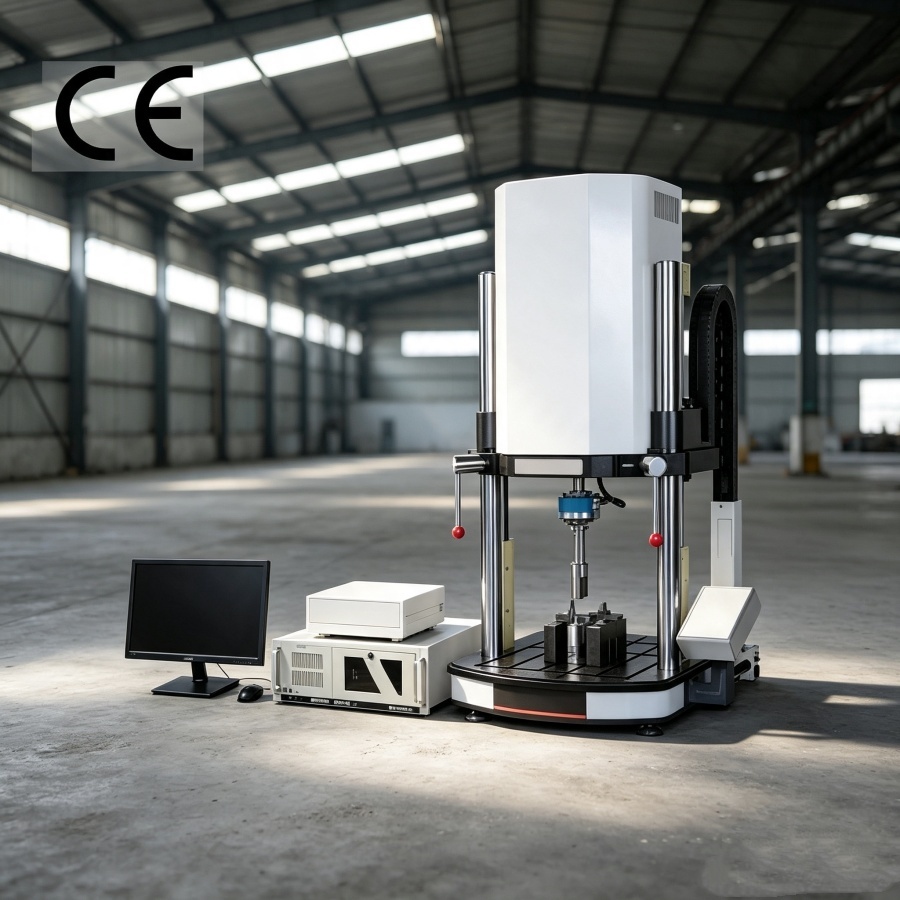

Equipment Overview The main unit features a closed-frame structure composed of two vertical columns, a T-slotted base, and a crosshead. It offers flexible and convenient operation, with motorized crosshead lifting and manual locking. The system utilizes advanced electric cylinder drive technology for loading, along with high-precision dynamic load cells and high-resolution displacement sensors to measure specimen force and displacement. The fully digital measurement and control system enables closed-loop control of displacement and deformation. The testing software operates in a Windows environment and offers powerful data processing capabilities, automatically saving, displaying, and printing test conditions and results.
ASTMD7615 Electronic Tensile Compressive Fatigue Testing Machine Tension Compression Endurance Tester Push-Pull Life Analyzer
Functions and Applications This machine is primarily used for dynamic and static mechanical performance testing of various materials—including metals, non-metals, and composites—as well as products such as metal bone plates. It supports tensile, compressive, flexural, and low-cycle fatigue testing under various waveforms, including sine, triangle, square, trapezoidal, random, and combined waveforms. When equipped with an environmental temperature control device, it can also perform environmental simulation tests at specific temperatures.

ASTMD7615 Electronic Tensile Compressive Fatigue Testing Machine Tension Compression Endurance Tester Push-Pull Life Analyzer
ASTMD7615 Electronic Tensile Compressive Fatigue Testing Machine Tension Compression Endurance Tester Push-Pull Life Analyzer
ASTMD7615 Electronic Tensile Compressive Fatigue Testing Machine Tension Compression Endurance Tester Push-Pull Life Analyzer
ASTMD7615 Electronic Tensile Compressive Fatigue Testing Machine Tension Compression Endurance Tester Push-Pull Life Analyzer
ASTMD7615 Electronic Tensile Compressive Fatigue Testing Machine Tension Compression Endurance Tester Push-Pull Life Analyzer
Specification
Main Technical Specifications
Item
Specification
Product Model
LR-AD108
Maximum Static Load
±3000N
Maximum Continuous Load
±2400N
Load Measurement Range
±1% ~ 100%
Load Accuracy
Within ±0.5%
Test Frequency
0.1 ~ 20Hz
Displacement Stroke
±50mm (100mm)
Displacement Accuracy
Within ±0.5% of indicated value
Test Height
≤400mm
Test Width
Approx. 340mm
Control Waveform
Sine wave, triangular wave, square wave, trapezoidal wave, random wave, combined waveform, etc.
Movable Crossbeam
Electric lifting, manual locking
Bearing Capacity
≥±10KN
Test Platform Mounting Size
Length 400 × Width 340 × Height 400mm
Electric Cylinder Operating Speed
1 μm ~ 0.15m/s
Overall Dimensions (Excluding Control Cabinet)
750×400×1240mm
Weight
Approx. 200kg
Power Supply
AC 220V 50Hz, 1.5Kw
